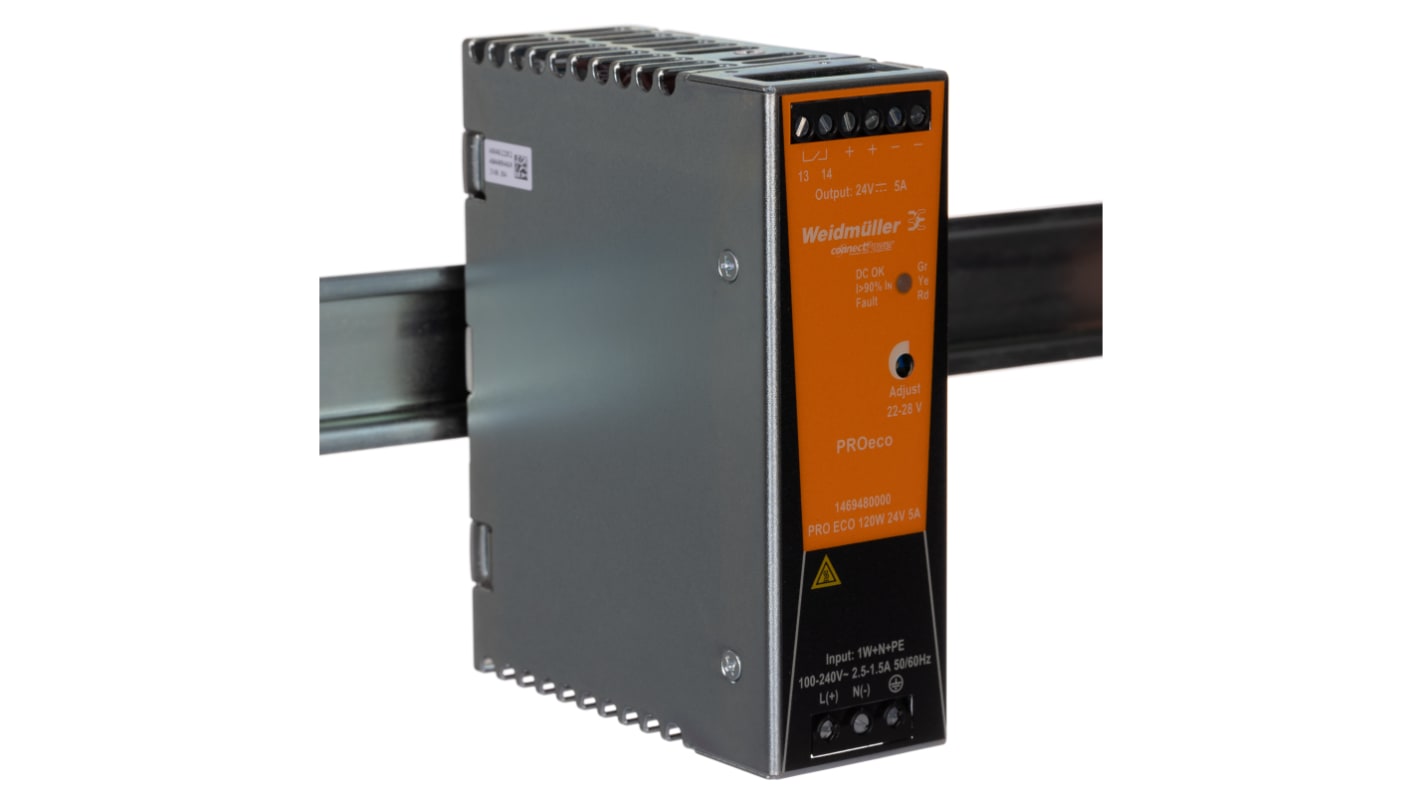

Weidmüller PROeco Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 28V dc, 5 A Output DC 120 W

RS Stock No.:: 923-6501
Distrelec Article No.:: 300-11-080
Mfr. Part No.:: 1469480000
Brand:: Weidmüller

Weidmüller PROeco Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 28V dc, 5 A Output DC 120 W

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

Weidmüller Power Supply, 3025570000 24V, 5A, 134.8 VA, Input 85V ac to 264V ac

RS Stock No.: 757-861

Each

£84.90

(exc. VAT)

£101.88

(inc. VAT)

RS Stock No.:: 923-6501
Distrelec Article No.:: 300-11-080
Mfr. Part No.:: 1469480000
Brand:: Weidmüller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Series	PROeco
	Product Type	DIN Rail Power Supply
	Maximum Output Voltage	28V dc
	Sub Type	Switched Mode
	Electrical Phase	1
	Input Voltage Type	AC/DC
	Number of Outputs	1
	Power	120W
	Output Current	5A
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Output Voltage Type	DC
	Maximum Operating Temperature	70°C
	Height	125mm
	Width	40mm
	Standards/Approvals	61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
	Hazardous Area Certification	No
	Depth	100mm
	Maximum Input Voltage	370, 264V dc
	Minimum Input Voltage	85V ac
	Efficiency	87%

	Select all
	Brand Weidmüller
	Series PROeco
	Product Type DIN Rail Power Supply
	Maximum Output Voltage 28V dc
	Sub Type Switched Mode
	Electrical Phase 1
	Input Voltage Type AC/DC
	Number of Outputs 1
	Power 120W
	Output Current 5A
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Output Voltage Type DC
	Maximum Operating Temperature 70°C
	Height 125mm
	Width 40mm
	Standards/Approvals 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
	Hazardous Area Certification No
	Depth 100mm
	Maximum Input Voltage 370, 264V dc
	Minimum Input Voltage 85V ac
	Efficiency 87%

RoHS Status: Exempt

COO (Country of Origin):: CN

Weidmuller DIN Rail Power Supply, 85 to 264V AC Input Voltage, 87% Efficiency - PROeco Series - 1469480000

Looking for a universal DIN rail power supply? Choose this single-phase unit from Weidmuller. It ensures process control equipment receives the correct current, voltage and frequency, which helps to keep your industrial system operating reliably. An efficiency of 87% means there's minimal power loss during switching, while a low current consumption between 1.26 and 2.24A makes this an energy-efficient option. Thanks to its screw connection, the power supply is protected against shocks and vibration, so you can rely on it for safe use in heavy-duty environments.

Features & Benefits

• Metal housing is resistant to corrosion and wear

• Green, yellow and red LED indicators for quick and convenient visual diagnostics

• MTBF of more than 500,000 hours for an extended service life

• Insulated for protection against electric shocks

Applications

• Power distribution

• Robotics systems

• Automotive manufacturing

What's the input and output voltage range of this power supply?

This power supply has an input voltage range of 80 to 370V DC and 85 to 264V AC, while its output voltage is adjustable between 22 and 28V DC. This makes it suitable for use in low-power applications.
