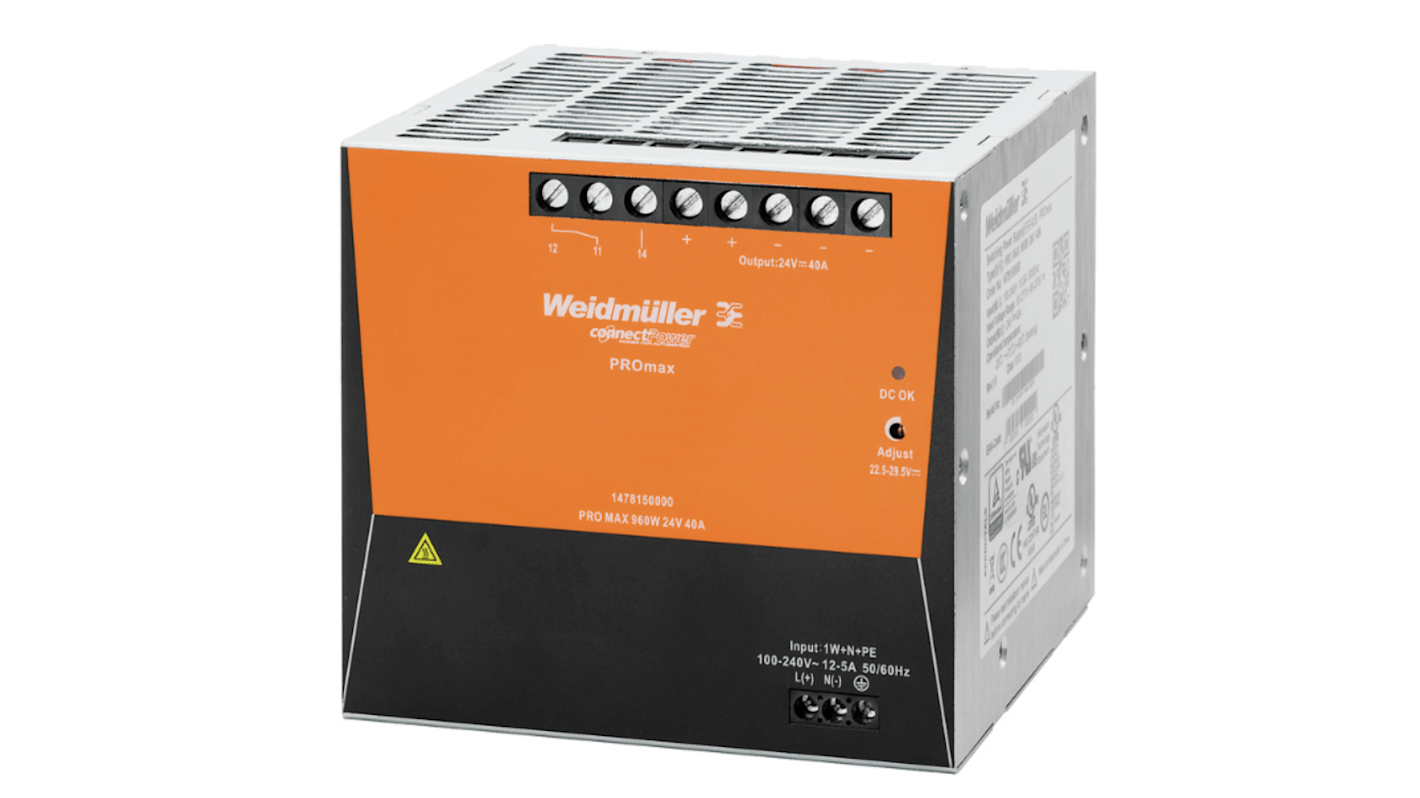

Weidmüller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 24V dc
- RS Stock No.:
- 923-6558
- Mfr. Part No.:
- 1478150000
- Brand:
- Weidmüller
2 In stock for delivery within 1 working days
Added
Price Each
£563.53
(exc. VAT)
£676.24
(inc. VAT)
| Units | Per unit |
| 1 + | £563.53 |
- RS Stock No.:
- 923-6558
- Mfr. Part No.:
- 1478150000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
Weidmuller DIN Rail Power Supply, 5W Power Loss, LED Status Indicators - PRO MAX Series - 1478150000
For dependable energy delivery to your industrial components, switch to this DIN rail power supply from Weidmuller. It steps down input voltages ranging between 100 and 240V AC or between 80 and 370V DC to a stable 24V DC output. Thanks to its high power rating of 960W, this piece of kit is just the right fit for heavy-duty applications. Its durable metal housing holds its own against impact and corrosion, giving you long-term performance in harsh environments.
Features & Benefits
• Light weight of 3.9kg to place minimal strain on your DIN rail
• Screw termination method for quick wiring without the need for special tools
• Compact dimensions of 130 (H) x 140 (W) x 150mm (D) to maximise space on your rail
• Safe for use in harsh environments, thanks to its broad operating temperature range between -25°C and +70°C
• Screw termination method for quick wiring without the need for special tools
• Compact dimensions of 130 (H) x 140 (W) x 150mm (D) to maximise space on your rail
• Safe for use in harsh environments, thanks to its broad operating temperature range between -25°C and +70°C
Applications
• Plant automation
• Automotive manufacturing
• Automotive manufacturing
What's the function of the integrated fuse in this DIN rail power supply?
The fuse provides protection from short circuits and current overloads. This helps reduce the risk of electrical damage to any connected equipment.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 40A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 277 V ac / 80 → 370V dc |
| Power Rating | 960W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 130mm |
| Width | 140mm |
| Depth | 150mm |
| Series | PRO MAX |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| MTBF | >500000h |
| Efficiency | 93% |
| Minimum Temperature | -25°C |
| Special Features | Durable, High Performance |
| Maximum Temperature | +70°C |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | <50mV |
| Output Voltage Adjustment Range | 22.5 → 29.5V |
