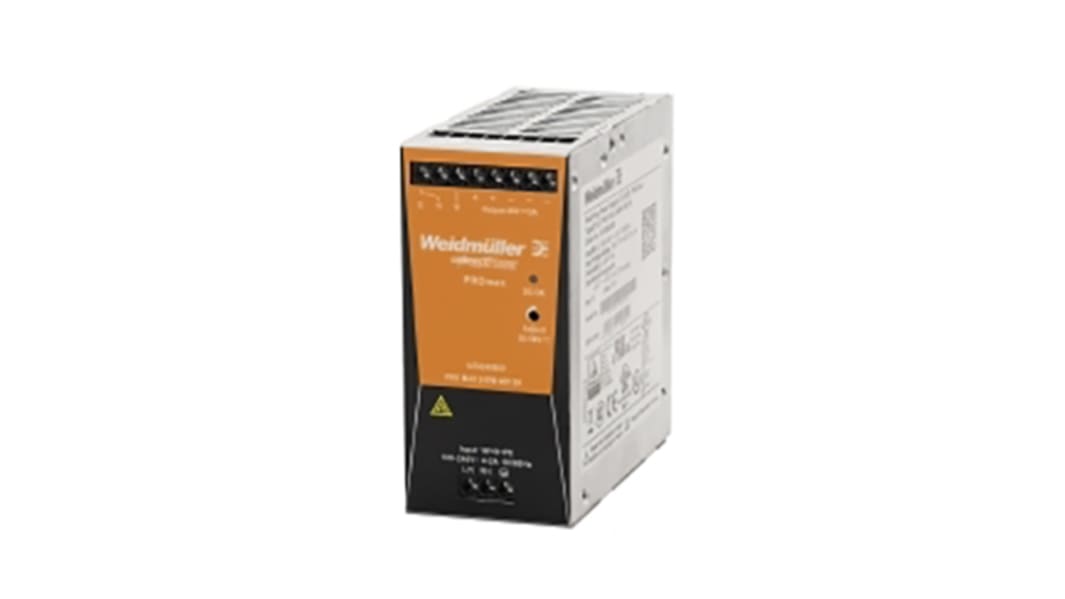

Weidmüller PRO Max Switch-Mode Power Supply Unit DIN Rail Power Supply 277V ac AC/DC Input 56V dc, 5 A Output DC 240 W
- RS Stock No.:
- 923-6582
- Mfr. Part No.:
- 1478240000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£227.89
(exc. VAT)
£273.47
(inc. VAT)
FREE delivery for orders over £60.00
- Plus 10 unit(s) shipping from 07 September 2026
- Plus 3 unit(s) shipping from 07 September 2026
- Plus 6 unit(s) shipping from 14 September 2026
Units | Per unit |
|---|---|
| 1 + | £227.89 |
*price indicative
- RS Stock No.:
- 923-6582
- Mfr. Part No.:
- 1478240000
- Brand:
- Weidmüller
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Series | PRO Max | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | Switch-Mode Power Supply Unit | |
| Maximum Output Voltage | 56V dc | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC/DC | |
| Power | 240W | |
| Output Current | 5A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Remote signal DC-OK | Yes | |
| Output Voltage Type | DC | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Width | 32mm | |
| Standards/Approvals | EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-2, 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60950, EN 60204, VDE 0106-101, VDE 0100-410/DIN57100-410, TUV, IEC 61558-2-16, IEC 61204, IEC 60068-2-6, IEC 60068-2-27, IEC 1709, EN 61000-4-8 | |
| Depth | 125mm | |
| Height | 130mm | |
| Maximum Input Voltage | 277V ac | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 92.5% | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Series PRO Max | ||
Product Type DIN Rail Power Supply | ||
Sub Type Switch-Mode Power Supply Unit | ||
Maximum Output Voltage 56V dc | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Input Voltage Type AC/DC | ||
Power 240W | ||
Output Current 5A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Remote signal DC-OK Yes | ||
Output Voltage Type DC | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Width 32mm | ||
Standards/Approvals EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-2, 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60950, EN 60204, VDE 0106-101, VDE 0100-410/DIN57100-410, TUV, IEC 61558-2-16, IEC 61204, IEC 60068-2-6, IEC 60068-2-27, IEC 1709, EN 61000-4-8 | ||
Depth 125mm | ||
Height 130mm | ||
Maximum Input Voltage 277V ac | ||
Minimum Input Voltage 85V ac | ||
Efficiency 92.5% | ||
PROmax Series
Switch Mode - Weidmuller
