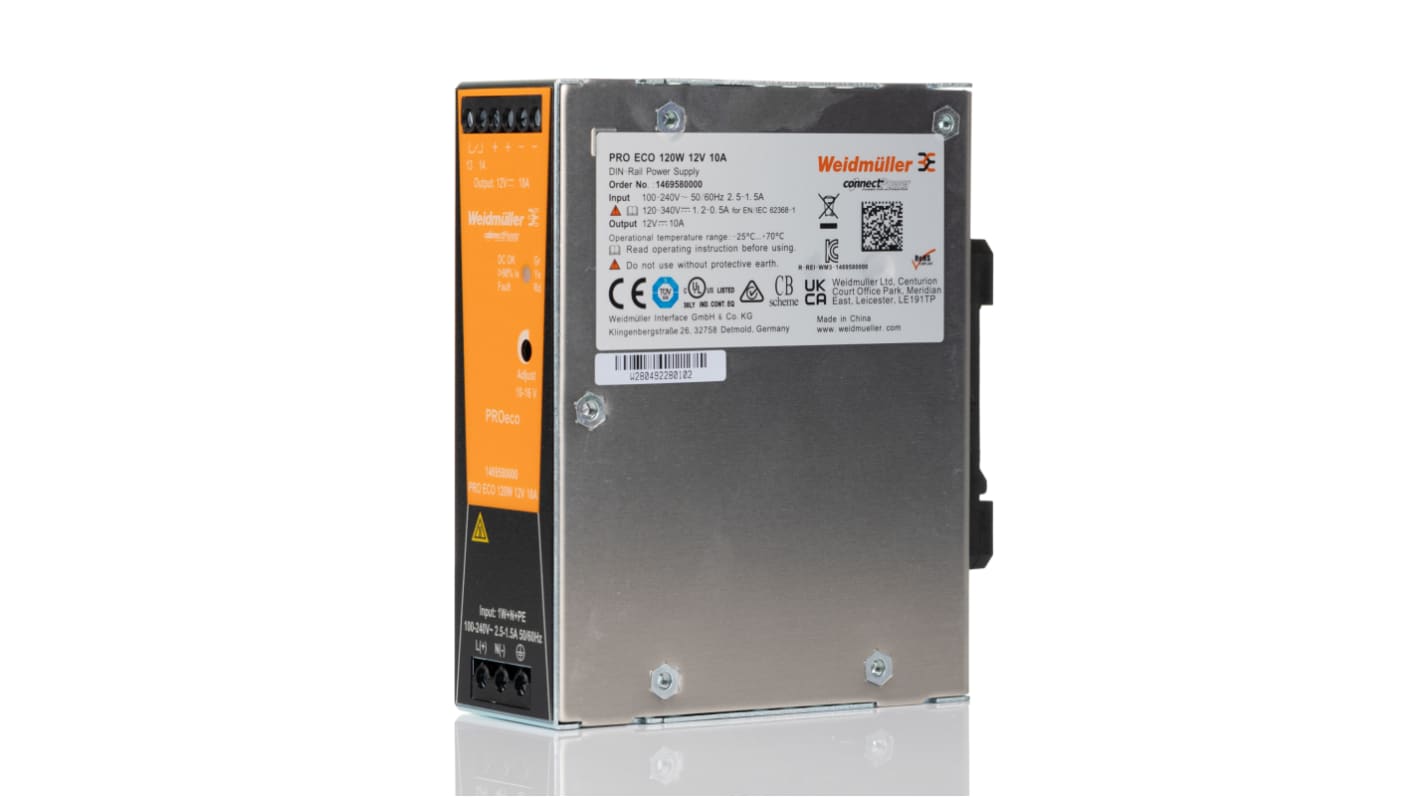

Weidmüller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 12V dc
- RS Stock No.:
- 923-6536
- Mfr. Part No.:
- 1469580000
- Brand:
- Weidmüller
4 In stock - FREE next working day delivery available
Added
Price Each
£158.45
(exc. VAT)
£190.14
(inc. VAT)
Units | Per unit |
1 + | £158.45 |
- RS Stock No.:
- 923-6536
- Mfr. Part No.:
- 1469580000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Weidmuller DIN Rail Power Supply, 87% Efficiency, 120W Power Rating - PRO ECO Series - 1469580000
In search of an efficient power conversion solution? This DIN rail power supply from Weidmuller fits the bill. It converts input voltages ranging between 85 and 264V AC or between 80 and 370V DC into a reliable 12V DC output. This makes it suitable for use in low-voltage applications. Thanks to an efficiency of up to 87%, very little energy is wasted as heat. It's a cinch to install as you can mount it directly on your DIN rail.
Features & Benefits
• MTBF of over 500,000 hours for long-lasting use
• Compact dimensions of 125 (H) x 40 (W) x 100mm (D) mean it fits neatly into tight spaces
• Light weight of just 698g puts minimal strain on your rail
• Performs reliably in harsh environments, as it has a wide operating temperature range between -25°C and +70°C
• Power rating of 120W for use in heavy-duty applications
• Compact dimensions of 125 (H) x 40 (W) x 100mm (D) mean it fits neatly into tight spaces
• Light weight of just 698g puts minimal strain on your rail
• Performs reliably in harsh environments, as it has a wide operating temperature range between -25°C and +70°C
• Power rating of 120W for use in heavy-duty applications
Applications
• Automotive manufacturing
• Commercial power management
• Process control
• Commercial power management
• Process control
How can I check the status of this device?
This DIN rail power supply comes with a tricolour LED indicator, so you can quickly determine its status.
Specifications
Attribute | Value |
---|---|
Type | Switched Mode |
Output Voltage | 12V dc |
Output Current | 10A |
AC or DC Input Voltage | ac, dc |
AC or DC Output Voltage | dc |
Input Voltage | 85 → 264 V ac / 80 → 370V dc |
Power Rating | 120W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 125mm |
Width | 40mm |
Depth | 100mm |
Series | PRO ECO |
Ripple And Noise | <50mV |
Minimum Temperature | -25°C |
Efficiency | 87% |
Special Features | Compact Size, Easy to Maintain, Flexible, High Efficiency |
Mounting Type | DIN Rail Mount |
Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
Maximum Temperature | +70°C |
Output Voltage Adjustment Range | -1 → +1% |
MTBF | >500000h |
