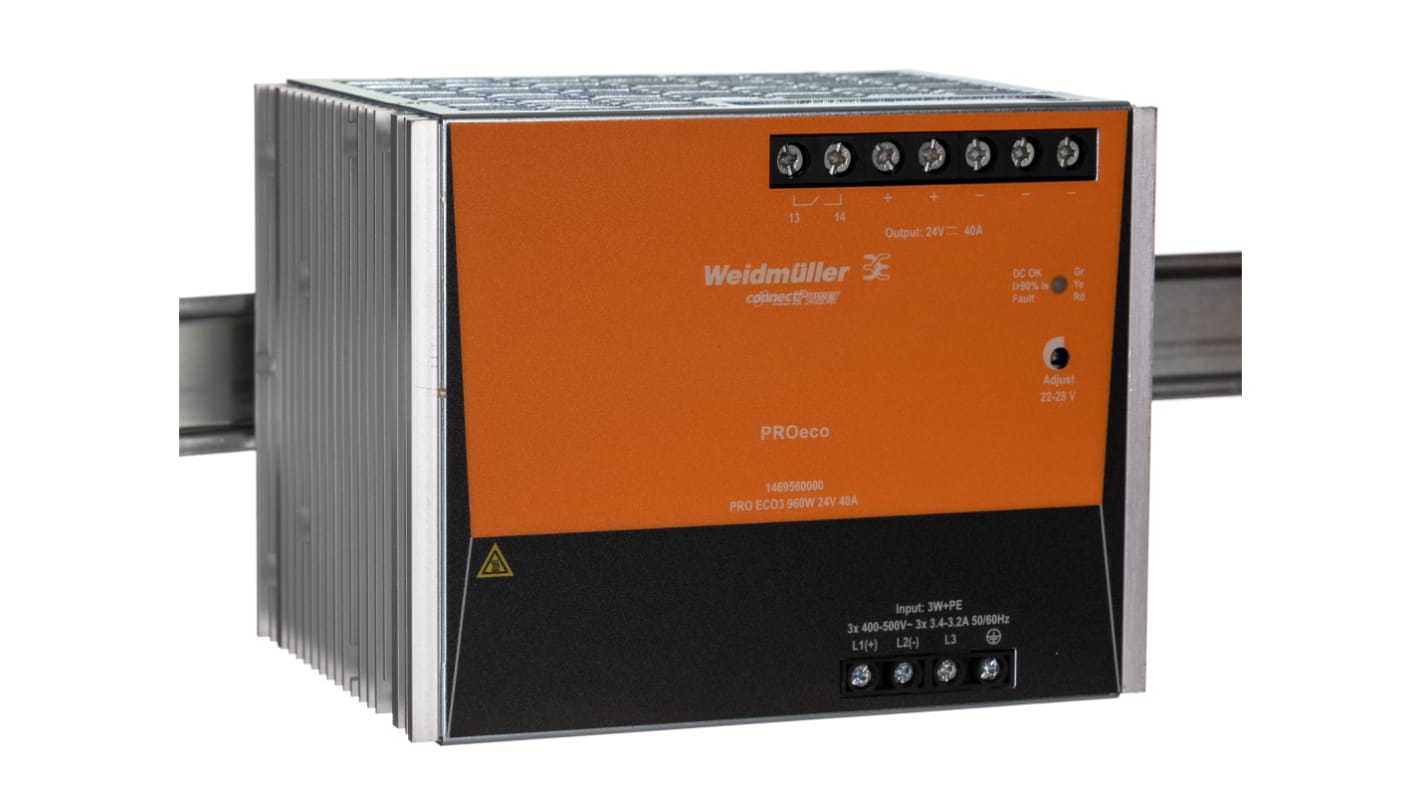

Weidmüller PROeco Switched Mode DIN Rail Power Supply 800 V dc, 575V ac AC/DC Input 28V dc, 40 A Output DC 960 W

RS Stock No.:: 923-6526
Distrelec Article No.:: 300-11-088
Mfr. Part No.:: 1469560000
Brand:: Weidmüller

Weidmüller PROeco Switched Mode DIN Rail Power Supply 800 V dc, 575V ac AC/DC Input 28V dc, 40 A Output DC 960 W

Subtotal (1 unit)*

£481.77

(exc. VAT)

£578.12

(inc. VAT)

FREE delivery for orders over £60.00

Being discontinued

Plus 6 unit(s) shipping from 10 August 2026
Final 3 unit(s) shipping from 10 August 2026

Units	Per unit
1 +	£481.77

*price indicative

RS Stock No.:: 923-6526
Distrelec Article No.:: 300-11-088
Mfr. Part No.:: 1469560000
Brand:: Weidmüller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Product Type	DIN Rail Power Supply
	Series	PROeco
	Maximum Output Voltage	28V dc
	Sub Type	Switched Mode
	Electrical Phase	3
	Number of Outputs	1
	Input Voltage Type	AC/DC
	Power	960W
	Output Current	40A
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Output Voltage Type	DC
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	No
	Depth	100mm
	Width	160mm
	Standards/Approvals	61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
	Height	125mm
	Maximum Input Voltage	800, 575V dc
	Minimum Input Voltage	320V ac
	Efficiency	90%

	Select all
	Brand Weidmüller
	Product Type DIN Rail Power Supply
	Series PROeco
	Maximum Output Voltage 28V dc
	Sub Type Switched Mode
	Electrical Phase 3
	Number of Outputs 1
	Input Voltage Type AC/DC
	Power 960W
	Output Current 40A
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Output Voltage Type DC
	Maximum Operating Temperature 70°C
	Hazardous Area Certification No
	Depth 100mm
	Width 160mm
	Standards/Approvals 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
	Height 125mm
	Maximum Input Voltage 800, 575V dc
	Minimum Input Voltage 320V ac
	Efficiency 90%

RoHS Status: Exempt

COO (Country of Origin):: CN

Weidmuller DIN Rail Power Supply, 47 to 63Hz Input Frequency, Screw Connections - PRO ECO Series - 1469560000

Need an energy-efficient power and conversion solution with comprehensive safety features? This DIN rail power supply from Weidmuller is an all-rounder. Its built-in switching regulator makes it a reliable source of stable DC energy from AC or DC sources, giving you a carefully controlled output that's suitable for your sensitive power supply applications. Thanks to this unit's built-in protection against overheating, overload and short circuits, you can rest assured you're one step ahead of common electrical faults. The device's high efficiency of 90% means you can trust it's economical with electricity and doesn't produce excess heat.

Features & Benefits

• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size

• Broad operating temperature range of -25°C to +70°C for use in harsh environments

• Tricolour LED simplifies diagnostics for easy troubleshooting

Applications

• Motors

• Sensors

• PLCs

• Transmitters

What wire sizes can I connect to this power supply?

This product's screw terminations allow you to connect input wires ranging in size from 26 to 12AWG and output wires between 22 and 8AWG, making it a versatile option.
