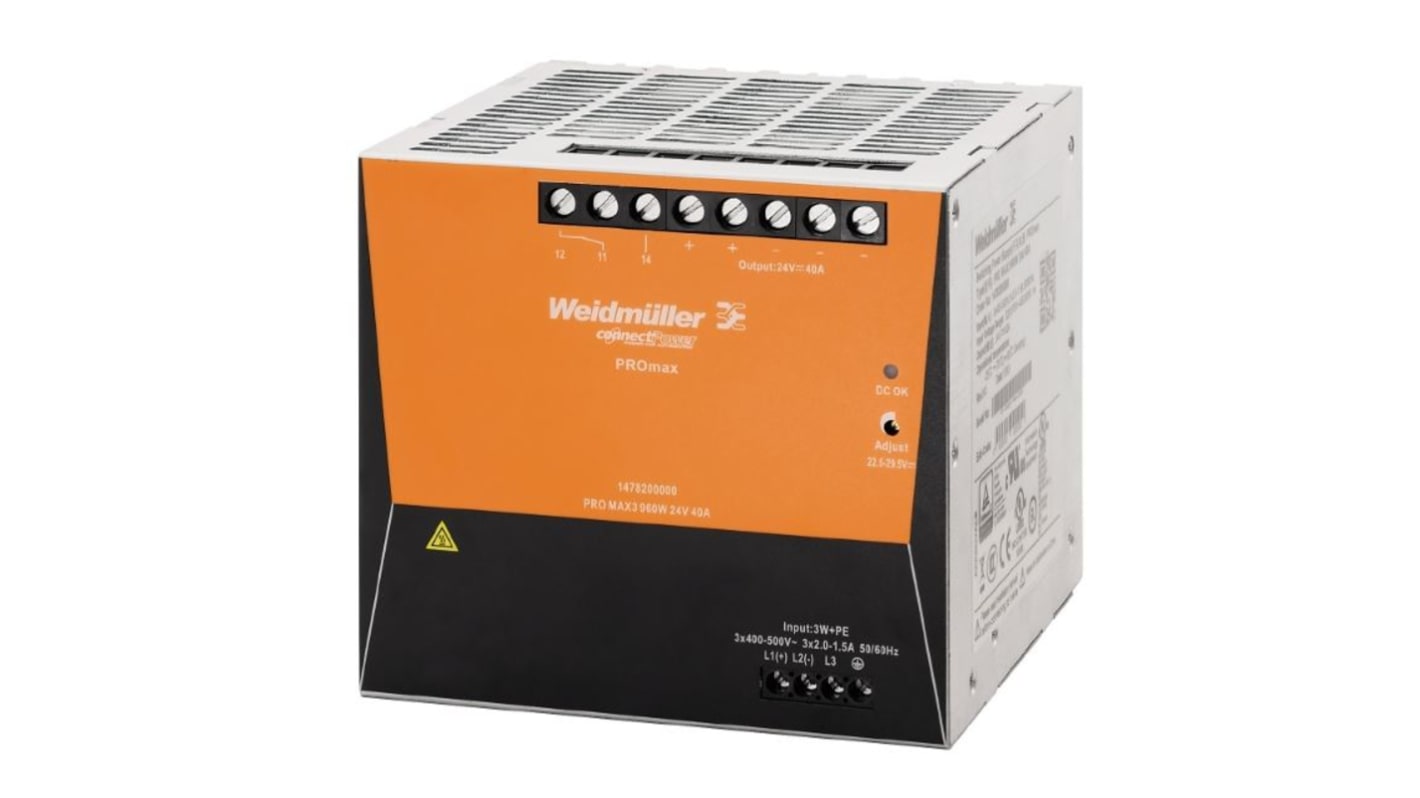

Weidmüller PRO Max Switched Mode DIN Rail Power Supply 800 V dc, 575V ac AC/DC Input 28V dc, 40 A Output DC 960 W
- RS Stock No.:
- 923-6573
- Distrelec Article No.:
- 300-12-181
- Mfr. Part No.:
- 1478200000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£572.67
(exc. VAT)
£687.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £572.67 |
*price indicative
- RS Stock No.:
- 923-6573
- Distrelec Article No.:
- 300-12-181
- Mfr. Part No.:
- 1478200000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Series | PRO Max | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | Switched Mode | |
| Maximum Output Voltage | 28V dc | |
| Electrical Phase | 3 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC/DC | |
| Power | 960W | |
| Output Current | 40A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 130mm | |
| Depth | 150mm | |
| Width | 140mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC 61204, IEC 60068-2-6, IEC 60068-2-27, IEC 1709, EN 61000-4-8, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-2, EN 60950, EN 60204, EN 55022, EN 50178 VDE 0160, EAC, cULus, CE, 61000-4-6, 61000-4-5, 61000-4-4, VDE 0100-410/DIN57100-410, VDE 0106-101, TUV, IEC 61558-2-16 | |
| Maximum Input Voltage | 800, 575V dc | |
| Minimum Input Voltage | 320V ac | |
| Efficiency | 93.5% | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Series PRO Max | ||
Product Type DIN Rail Power Supply | ||
Sub Type Switched Mode | ||
Maximum Output Voltage 28V dc | ||
Electrical Phase 3 | ||
Number of Outputs 1 | ||
Input Voltage Type AC/DC | ||
Power 960W | ||
Output Current 40A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Height 130mm | ||
Depth 150mm | ||
Width 140mm | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC 61204, IEC 60068-2-6, IEC 60068-2-27, IEC 1709, EN 61000-4-8, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-2, EN 60950, EN 60204, EN 55022, EN 50178 VDE 0160, EAC, cULus, CE, 61000-4-6, 61000-4-5, 61000-4-4, VDE 0100-410/DIN57100-410, VDE 0106-101, TUV, IEC 61558-2-16 | ||
Maximum Input Voltage 800, 575V dc | ||
Minimum Input Voltage 320V ac | ||
Efficiency 93.5% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
Weidmuller DIN Rail Power Supply, 93.5% Efficiency, 450 to 800V DC Input Voltage Range - PRO MAX Series - 1478200000
Ensure your control cabinet keeps its cool with this DIN rail power supply from Weidmuller. It produces a steady output voltage of 24V DC to keep your equipment fully energised. A wide operating temperature range between -25°C and +70°C means it can handle the heat. For enhanced reliability, this product is protected against inverse voltage. Thanks to its rugged corrosion-resistant metal housing, this power supply is just what you need for harsh industrial settings.
Features & Benefits
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• LED indicators for quick and convenient visual diagnostics
• Efficiency of 93.5% for minimal power loss during switching
• Screw terminals for simple and secure wiring that won't come loose
• Immune to EMI for minimal crosstalk and reliable performance
Applications
• Pharmaceutical industry
• Packing warehouses
• Marine industry
• Aerospace engineering
Is this power supply protected against earth leakages?
Yes, to stop earth leakages from causing dangerous working conditions, this power supply trips earth currents up to 3.5mA.
