HARTING, HARAX 3 Pole Straight M12 DIN Socket, 4A, 50V IP65, IP67, Screw, Cable Female
- RS Stock No.:
- 707-3806
- Mfr. Part No.:
- 21032122306
- Brand:
- HARTING

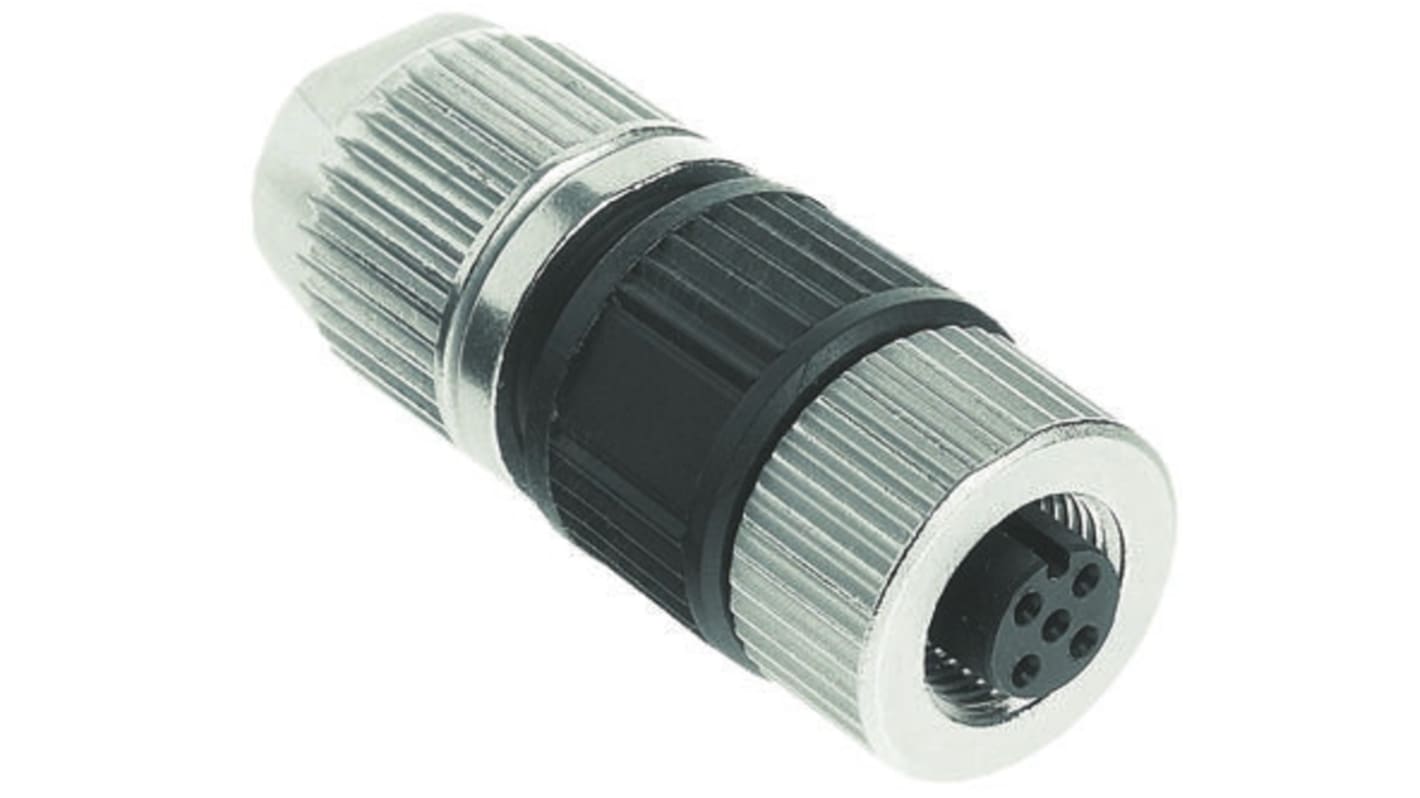

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£23.65
(exc. VAT)
£28.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.65 |
| 5 - 24 | £22.97 |
| 25 + | £22.28 |
*price indicative
- RS Stock No.:
- 707-3806
- Mfr. Part No.:
- 21032122306
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 3 | |
| Product Type | DIN Socket | |
| Mount Type | Cable | |
| Current | 4A | |
| Connector Size | M12 | |
| Connector Gender | Female | |
| Mating Type | Screw | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| Voltage | 50V | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | HARAX | |
| Housing Material | Zinc Die Cast Alloy, Polyamide | |
| Pole Format | 3 | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 3 | ||
Product Type DIN Socket | ||
Mount Type Cable | ||
Current 4A | ||
Connector Size M12 | ||
Connector Gender Female | ||
Mating Type Screw | ||
Shield Type Unshielded | ||
Orientation Straight | ||
Voltage 50V | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series HARAX | ||
Housing Material Zinc Die Cast Alloy, Polyamide | ||
Pole Format 3 | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- DE
HARAX® M12-L Straight Circular Connectors
HARAX® quick connection universal technology is an ideal solution for the in situ assembly of M12 connectors and does not require the use of special tools.
IP65/67 protection
Termination cycles 10 (with same cross section)
Cable diameters: 3 pole 5.5 → 7.2 mm, 4 pole 6 → 8 mm, 5 pole 6 → 8 mm
Conductor diameter: 3 & 4 pole 1.6 → 2.0 mm (22 - 18 AWG), 5 pole 1.2 → 2.0 mm (24 - 20 AWG)
Stock Number 707-3692 has a pre-leading contact
HARAX® Connectors
The HARTING HARAX® quick connection universal technology is an ideal solution for the in situ assembly of M8/M12 connectors and does not require the use of special tools. Users only have to strip the cable insulation, insert the conductors and screw the connector together in order to produce a gas-proof and vibration resistant connection.
