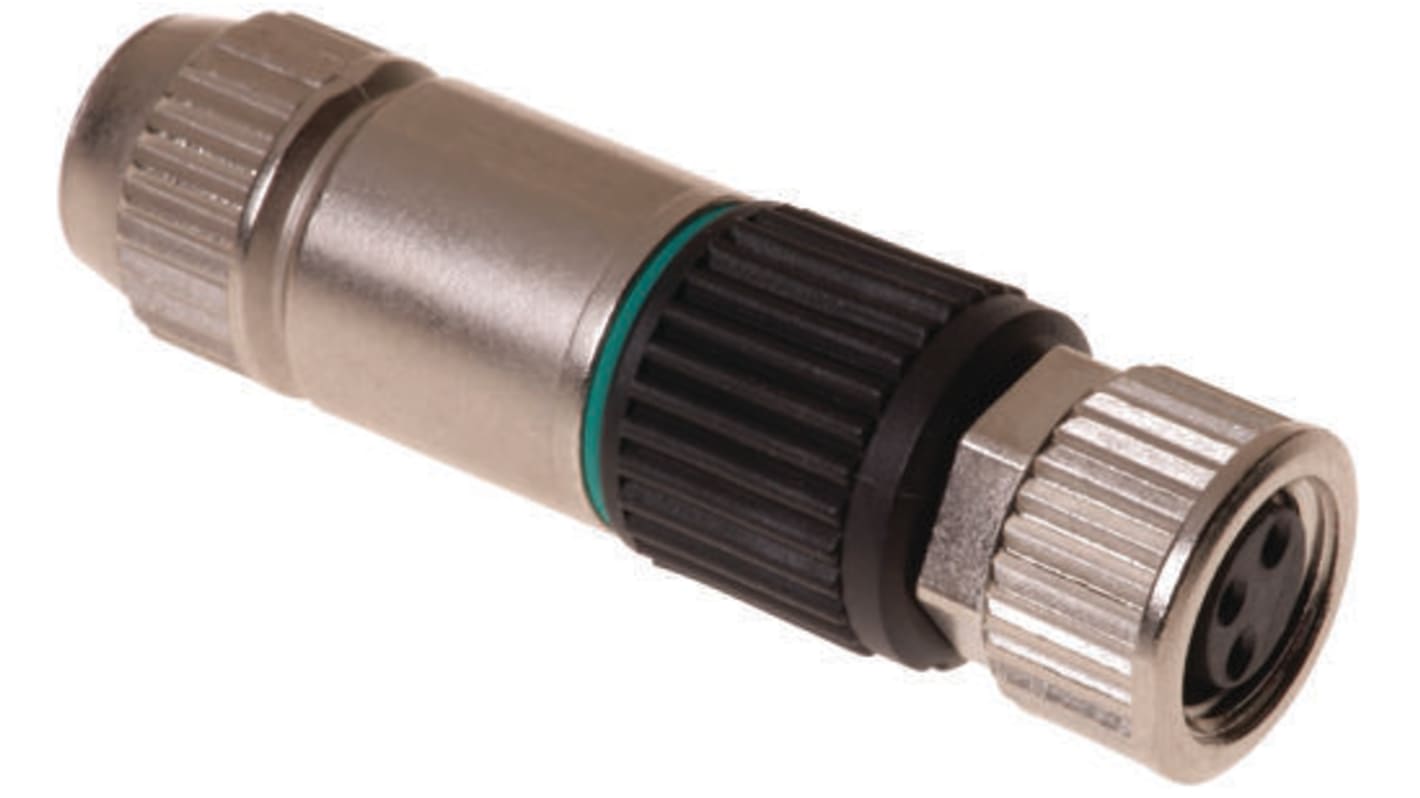

HARTING, HARAX 4 Pole Straight M8 DIN Socket, 4A, 32V IP67, Screw, Cable Female
- RS Stock No.:
- 707-3689
- Distrelec Article No.:
- 144-51-233
- Mfr. Part No.:
- 21021512405
- Brand:
- HARTING
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£12.88
(exc. VAT)
£15.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 14 September 2026
- Plus 37 unit(s) shipping from 14 September 2026
- Plus 45 unit(s) shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £12.88 |
| 5 - 24 | £12.49 |
| 25 - 49 | £12.11 |
| 50 + | £11.79 |
*price indicative
- RS Stock No.:
- 707-3689
- Distrelec Article No.:
- 144-51-233
- Mfr. Part No.:
- 21021512405
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 4 | |
| Product Type | DIN Socket | |
| Mount Type | Cable | |
| Current | 4A | |
| Connector Size | M8 | |
| Connector Gender | Female | |
| Mating Type | Screw | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| Voltage | 32V | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | HARAX | |
| Housing Material | Zinc Die Cast Alloy, Polyamide | |
| Pole Format | 4 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 4 | ||
Product Type DIN Socket | ||
Mount Type Cable | ||
Current 4A | ||
Connector Size M8 | ||
Connector Gender Female | ||
Mating Type Screw | ||
Shield Type Unshielded | ||
Orientation Straight | ||
Voltage 32V | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series HARAX | ||
Housing Material Zinc Die Cast Alloy, Polyamide | ||
Pole Format 4 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- DE
HARAX® M8-S Straight Circular Connectors
HARAX® quick connection universal technology is an ideal solution for the in situ assembly of M12 connectors and does not require the use of special tools.
IP 67 protection
Termination cycles 10 (with same cross section)
Cable diameters 2.5 → 5.1 mm
Conductor diameters 1 → 1.6 mm (26 - 22 AWG)
HARAX® Connectors
The HARTING HARAX® quick connection universal technology is an ideal solution for the in situ assembly of M8/M12 connectors and does not require the use of special tools. Users only have to strip the cable insulation, insert the conductors and screw the connector together in order to produce a gas-proof and vibration resistant connection.
