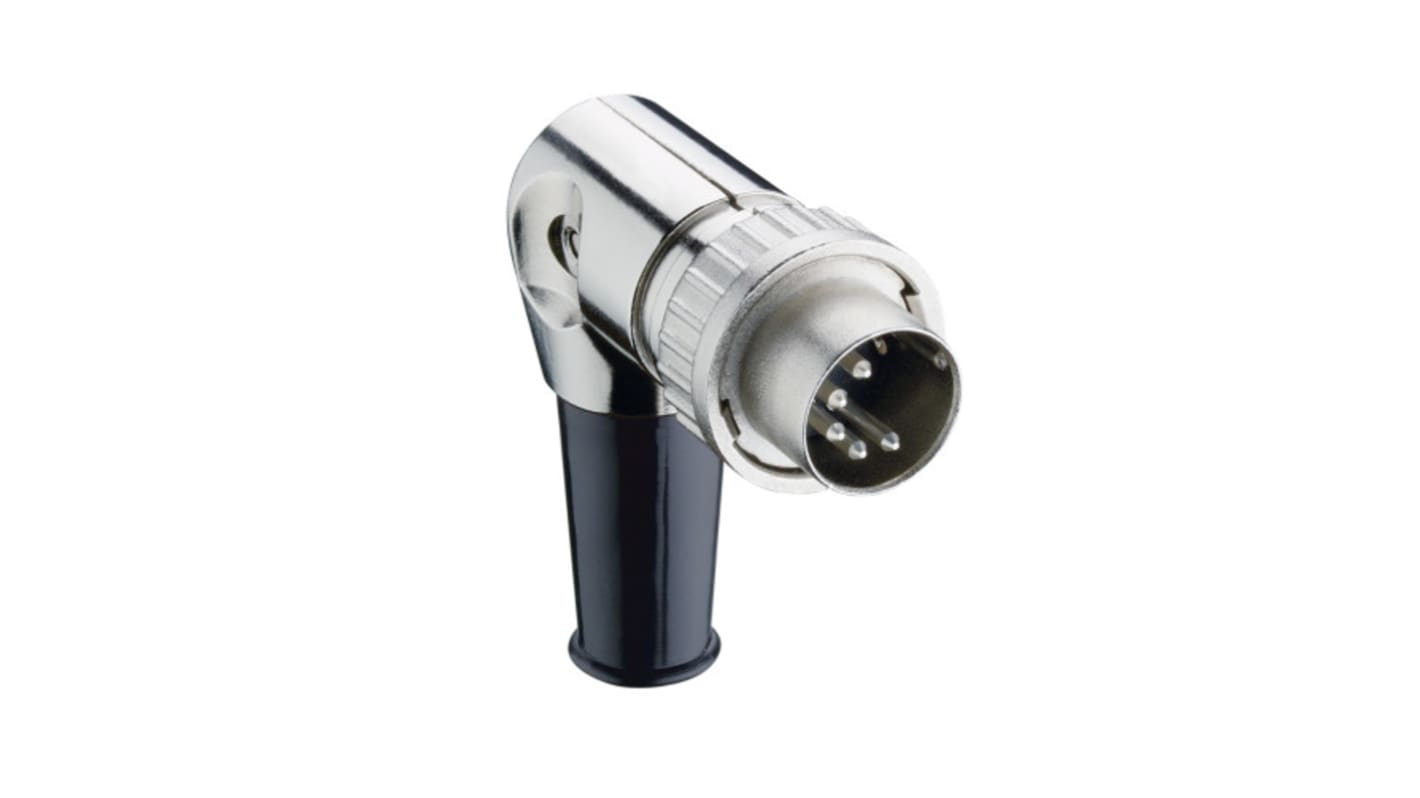

Lumberg, 0134 5 Pole Angled DIN Connector, DIN 41524, 4A, 100V ac, Bayonet, Solder Male

View all DIN Connectors
Bulk discount available

Subtotal (1 box of 50 units)*

£477.65

(exc. VAT)

£573.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 150 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Box*
50 - 50£9.553£477.65
100 - 150£9.098£454.90
200 - 450£8.734£436.70
500 - 950£8.416£420.80
1000 +£7.961£398.05

*price indicative

RS Stock No.:
281-9012
Distrelec Article No.:
300-68-317
Mfr. Part No.:
0134 05
Brand:
Lumberg
Find similar products by selecting one or more attributes.
Select all

Brand

Lumberg

Number of Contacts

5

Product Type

DIN Connector

Mount Type

Solder

Current

4A

Mating Type

Bayonet

Connector Gender

Male

Orientation

Angled

Voltage

100V ac

Termination Type

Solder

Minimum Operating Temperature

-25°C

DIN Number

DIN 41524

Maximum Operating Temperature

80°C

Contact Gender

Male

Standards/Approvals

RoHS

Series

0134

Pole Format

5

Housing Material

Zinc Alloy

Contact Material

Copper Zinc Alloy

COO (Country of Origin):
TW
The Lumberg DIN circular connectors DIN plug with bayonet lock angular version contact carrier mountable in 0° 90° 180° and 270° orientation shielded with metal housing bend protection and solder terminals

CuZn silver-plated Contact pin

Steel nickel-plated Strain relief

Zn alloy nickel-plated Housing

Zn alloy nickel-plated Bayonet nut

PVC Bend protection sleeve

Steel nickel-plated Screw
