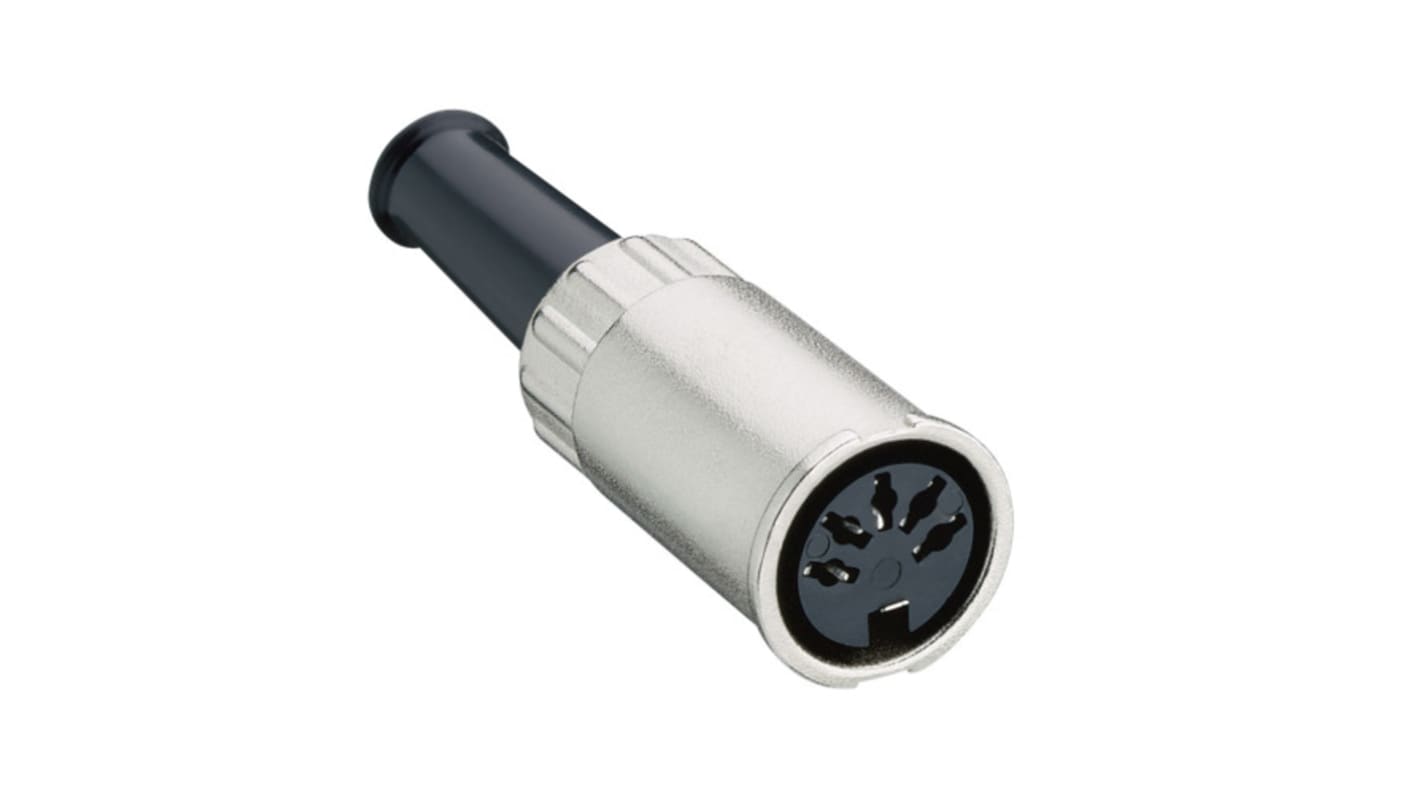

Lumberg, 0122 5 Pole Straight DIN Connector, DIN 41524, 4A, 100 V ac, Bayonet, Cable Female
- RS Stock No.:
- 281-8997
- Distrelec Article No.:
- 142-22-501
- Mfr. Part No.:
- 0122 05
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 box of 50 units)*
£197.50
(exc. VAT)
£237.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 200 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 50 | £3.95 | £197.50 |
| 100 - 150 | £3.762 | £188.10 |
| 200 - 450 | £3.612 | £180.60 |
| 500 - 950 | £3.48 | £174.00 |
| 1000 + | £3.292 | £164.60 |
*price indicative
- RS Stock No.:
- 281-8997
- Distrelec Article No.:
- 142-22-501
- Mfr. Part No.:
- 0122 05
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Product Type | DIN Connector | |
| Number of Contacts | 5 | |
| Current | 4A | |
| Mount Type | Cable | |
| Mating Type | Bayonet | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Voltage | 100 V ac | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Solder | |
| DIN Number | DIN 41524 | |
| Maximum Operating Temperature | 80°C | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Series | 0122 | |
| Pole Format | 5 | |
| Housing Material | Zinc Alloy | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Lumberg | ||
Product Type DIN Connector | ||
Number of Contacts 5 | ||
Current 4A | ||
Mount Type Cable | ||
Mating Type Bayonet | ||
Connector Gender Female | ||
Orientation Straight | ||
Voltage 100 V ac | ||
Minimum Operating Temperature -25°C | ||
Termination Type Solder | ||
DIN Number DIN 41524 | ||
Maximum Operating Temperature 80°C | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Series 0122 | ||
Pole Format 5 | ||
Housing Material Zinc Alloy | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- TW
The Lumberg is a DIN circular connector and DIN socket with bayonet lock straight version shielded with metal housing bend protection and solder terminals
CuZn silver-plated Contact spring
Steel nickel-plated Strain relief
Zn alloy nickel-plated Housing
PVC Bend protection sleeve
Steel nickel-plated Screw
