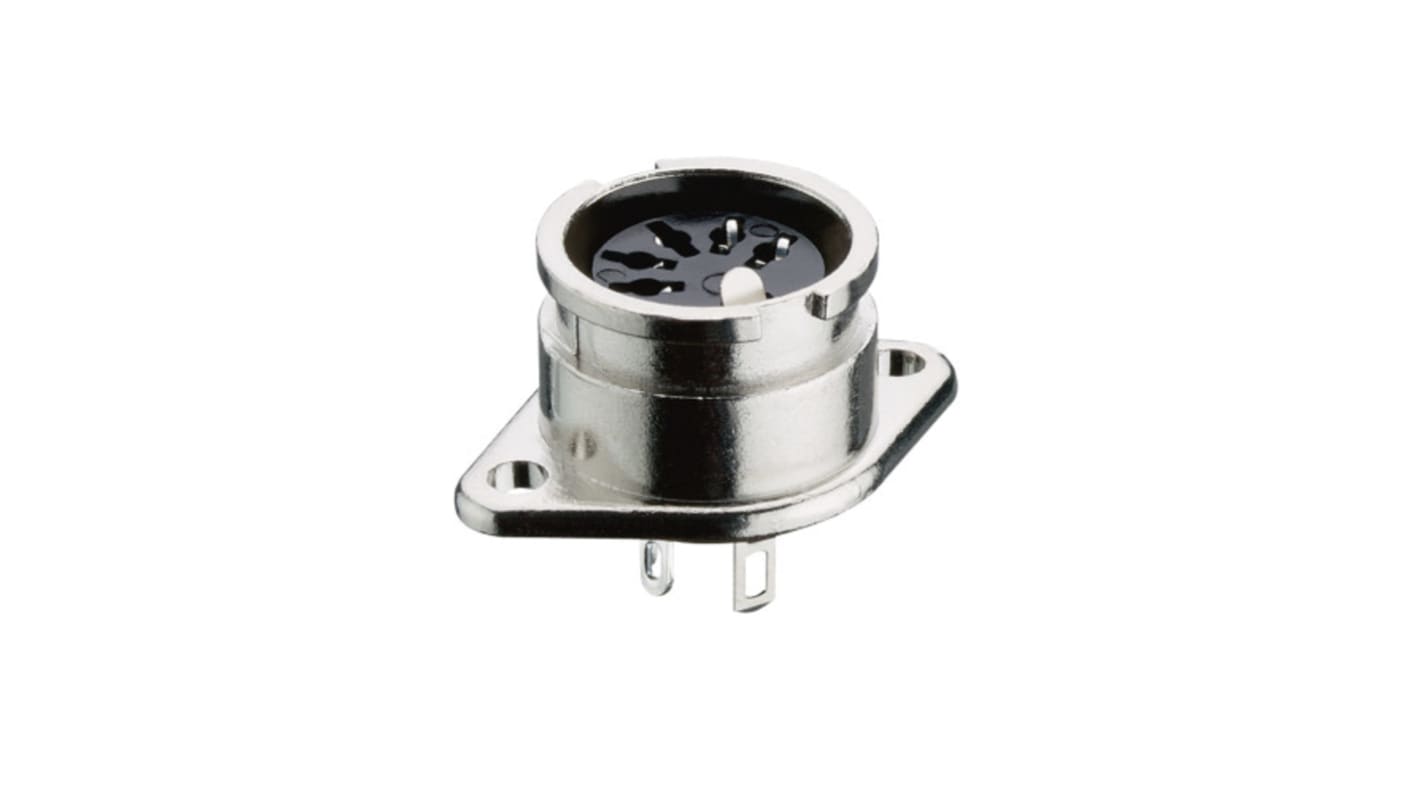

Lumberg, 0107 5 Pole Vertical DIN Connector, DIN 41524, 4A, 100V ac, Bayonet, Solder Female
- RS Stock No.:
- 281-8993
- Distrelec Article No.:
- 142-22-808
- Mfr. Part No.:
- 0107 05
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 box of 50 units)*
£185.05
(exc. VAT)
£222.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 450 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 50 | £3.701 | £185.05 |
| 100 - 150 | £3.525 | £176.25 |
| 200 - 450 | £3.384 | £169.20 |
| 500 - 950 | £3.261 | £163.05 |
| 1000 + | £3.084 | £154.20 |
*price indicative
- RS Stock No.:
- 281-8993
- Distrelec Article No.:
- 142-22-808
- Mfr. Part No.:
- 0107 05
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Number of Contacts | 5 | |
| Product Type | DIN Connector | |
| Current | 4A | |
| Mount Type | Solder | |
| Connector Gender | Female | |
| Mating Type | Bayonet | |
| Orientation | Vertical | |
| Voltage | 100V ac | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| DIN Number | DIN 41524 | |
| Series | 0107 | |
| Standards/Approvals | RoHS | |
| Pole Format | 5 | |
| Housing Material | Zinc Alloy | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand Lumberg | ||
Number of Contacts 5 | ||
Product Type DIN Connector | ||
Current 4A | ||
Mount Type Solder | ||
Connector Gender Female | ||
Mating Type Bayonet | ||
Orientation Vertical | ||
Voltage 100V ac | ||
Termination Type Solder | ||
Minimum Operating Temperature -25°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 80°C | ||
DIN Number DIN 41524 | ||
Series 0107 | ||
Standards/Approvals RoHS | ||
Pole Format 5 | ||
Housing Material Zinc Alloy | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- TW
The Lumberg DIN circular connectors and DIN chassis socket with bayonet lock shielded with metal housing flange and solder terminals.
CuZn silver-plated Contact spring
Cu nickel-plated Ground contact spring
Zn alloy nickel-plated Housing
