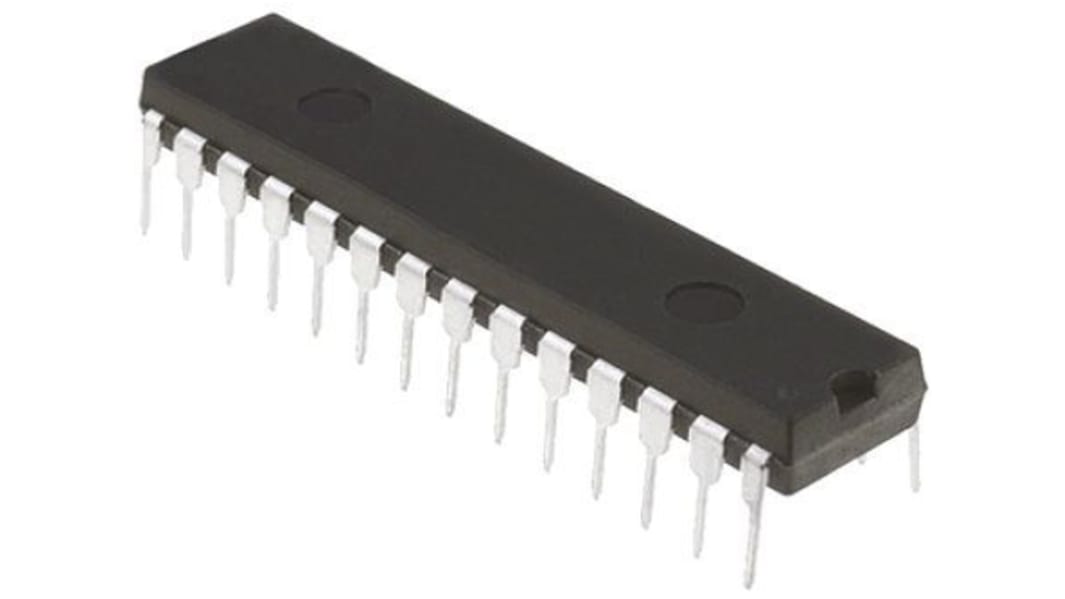

DSPIC33EV256GM002-I/SP Microchip, 16bit Digital Signal Processor 70MHz 256 kB Flash 28-Pin PDIP

RS Stock No.:: 869-6101
Mfr. Part No.:: DSPIC33EV256GM002-I/SP
Brand:: Microchip

DSPIC33EV256GM002-I/SP Microchip, 16bit Digital Signal Processor 70MHz 256 kB Flash 28-Pin PDIP

1 / 3

Bulk discount available

Subtotal (1 unit)**

£3.88

(exc. VAT)

£4.66

(inc. VAT)

Available to back order for despatch 27/05/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 24	£3.88
25 - 99	£3.69
100 +	£3.51

**price indicative

RS Stock No.:: 869-6101
Mfr. Part No.:: DSPIC33EV256GM002-I/SP
Brand:: Microchip

dsPIC33EVxxxGM00x/10x 16-Bit Digital Signal Controllers

Microchip’s dsPIC33EV family of 16-bit Digital Signal Controllers (DSCs) features a 70 MIPS dsPIC® DSC core with enhanced on-chip features. Capable of operating in harsh environments these devices are suitable for appliance and automotive applications. Rich peripheral integration includes SENT (Single-Edge Nibble Transmission-Transmit/Receive), High Speed PWMs, OP Amps and Error Correcting Code Flash for increased reliability and safety. The performance offered by the dsPIC33EV family of MCUs allows them to be incorporated into the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors.

Microcontroller Features

70 MHz Max. CPU Speed
Code-Efficient (C and Assembly) Architecture
16-Bit Wide Data Path
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle, Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
Intermediate Security for Memory - Provides a Boot Flash Segment in addition to the existing General Flash Segment
Error Code Correction (ECC) for Flash
Added Two Alternate Register Sets for Fast Context Switching

Clock Management Features

Internal, 15% Low-Power RC (LPRC) – 32 kHz
Internal, 1% Fast RC (FRC) – 7.37 MHz
Internal, 10% Backup RC (BFRC) – 7.37 MHz
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Additional Fail-Safe Clock Monitor Source (BFRC), Intended to Provide a Clock Fail Switch Source for the System Clock
Independent Watchdog Timer (WDT)
System Windowed Watchdog Timer (DMT)
Fast Wake-Up and Start-Up

Power Management Features

Low-Power Management modes (Sleep, Idle and Doze)
Power Consumption Minimized Executing NOP String
Integrated Power-on Reset (POR) and Brown-out Reset (BOR)
0.5 mA/MHz Dynamic Current (typical)
50 μA at +25°C IPD Current (typical)

Peripheral Features

Up to Six Pulse-Width Modulation (PWM) Outputs (three generators)
Configurable Analogue to Digital Converter (ADC) Module
Up to 4 Operational Amplifiers
Up to 5 Comparators
Charge Time Measurement Unit (CTMU) - Supports mTouch™ capacitive touch sensing
Five 16-bit Timers
Two 32-bit Timers
Four Output Capture modules Configurable as Timers/Counters
Four Input Capture modules
Two Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Two SPI Modules
One I2C Module with SMBus Support

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Maximum Frequency	70MHz
	Device Million Instructions per Second	70MIPS
	Data Bus Width	16bit
	RAM Size	16 kB
	Instruction Set Architecture	C
	Program Memory Size	256 kB
	Program Memory Type	Flash
	Mounting Type	Through Hole
	Package Type	PDIP
	Pin Count	28
	Typical Operating Supply Voltage	4.5 to 5.5 V
	Number of UART Channels	2
	Number of LIN Channels	0
	Width	7.5mm
	Number of USART Channels	0
	Timers	2 x 32 bit, 5 x 16 bit
	Dimensions	35.6 x 7.5 x 3.8mm
	Minimum Operating Temperature	-40 °C
	Number of CAN Channels	0
	Height	3.8mm
	Number of SPI Channels	2
	Pulse Width Modulation	6
	Number of PCI Channels	0
	Number of I2C Channels	1
	Number of Timers	2, 5
	Number of Ethernet Channels	0
	USB Channels	0
	ADC Resolution	12 bit, 10bit
	Timer Resolution	16 bit, 32bit
	ADCs	1 (1 x 10/12 bit)
	Length	35.6mm
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	ADC Channels	1

	Select all
	Brand Microchip
	Maximum Frequency 70MHz
	Device Million Instructions per Second 70MIPS
	Data Bus Width 16bit
	RAM Size 16 kB
	Instruction Set Architecture C
	Program Memory Size 256 kB
	Program Memory Type Flash
	Mounting Type Through Hole
	Package Type PDIP
	Pin Count 28
	Typical Operating Supply Voltage 4.5 to 5.5 V
	Number of UART Channels 2
	Number of LIN Channels 0
	Width 7.5mm
	Number of USART Channels 0
	Timers 2 x 32 bit, 5 x 16 bit
	Dimensions 35.6 x 7.5 x 3.8mm
	Minimum Operating Temperature -40 °C
	Number of CAN Channels 0
	Height 3.8mm
	Number of SPI Channels 2
	Pulse Width Modulation 6
	Number of PCI Channels 0
	Number of I2C Channels 1
	Number of Timers 2, 5
	Number of Ethernet Channels 0
	USB Channels 0
	ADC Resolution 12 bit, 10bit
	Timer Resolution 16 bit, 32bit
	ADCs 1 (1 x 10/12 bit)
	Length 35.6mm
	Maximum Operating Temperature +85 °C
	Number of ADC Units 1
	ADC Channels 1
