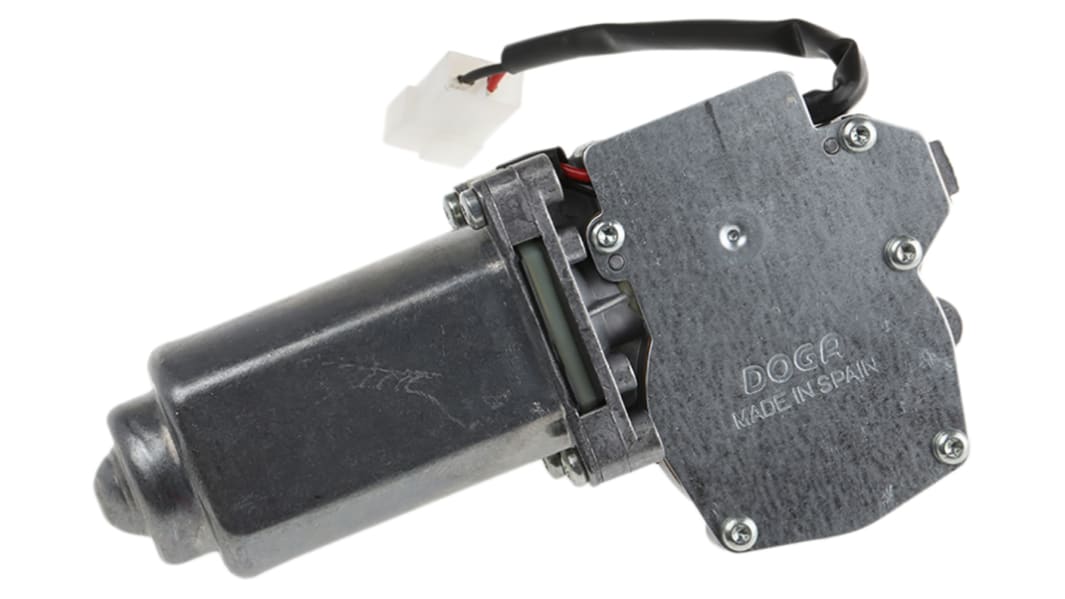

DOGA Brushed Geared DC Geared Motor, 24V dc, 10 Nm, 65rpm, 9 mm Shaft Diameter
- RS Stock No.:
- 773-6790
- Mfr. Part No.:
- 316.9731.30.00
- Brand:
- DOGA
Subtotal (1 unit)*
£122.14
(exc. VAT)
£146.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 188 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £122.14 |
*price indicative
- RS Stock No.:
- 773-6790
- Mfr. Part No.:
- 316.9731.30.00
- Brand:
- DOGA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DOGA | |
| Product Type | DC Geared Motor | |
| Supply Voltage | 24V dc | |
| Sub Type | Brushed Geared | |
| Output Speed | 65rpm | |
| Shaft Diameter | 9mm | |
| Mount Type | Screw | |
| Maximum Output Torque | 10Nm | |
| Gearhead Type | Worm | |
| Gear Ratio | 62:1 | |
| Current Rating | 11A | |
| Material | Polylactic Acid | |
| Length | 177.5mm | |
| Shaft Length | 18mm | |
| Width | 48mm | |
| Depth | 88.8mm | |
| Standards/Approvals | IP40 | |
| Core Construction | Iron Core | |
| Series | C30 | |
| Select all | ||
|---|---|---|
Brand DOGA | ||
Product Type DC Geared Motor | ||
Supply Voltage 24V dc | ||
Sub Type Brushed Geared | ||
Output Speed 65rpm | ||
Shaft Diameter 9mm | ||
Mount Type Screw | ||
Maximum Output Torque 10Nm | ||
Gearhead Type Worm | ||
Gear Ratio 62:1 | ||
Current Rating 11A | ||
Material Polylactic Acid | ||
Length 177.5mm | ||
Shaft Length 18mm | ||
Width 48mm | ||
Depth 88.8mm | ||
Standards/Approvals IP40 | ||
Core Construction Iron Core | ||
Series C30 | ||
- COO (Country of Origin):
- ES
Type 316 Geared dc Motors
