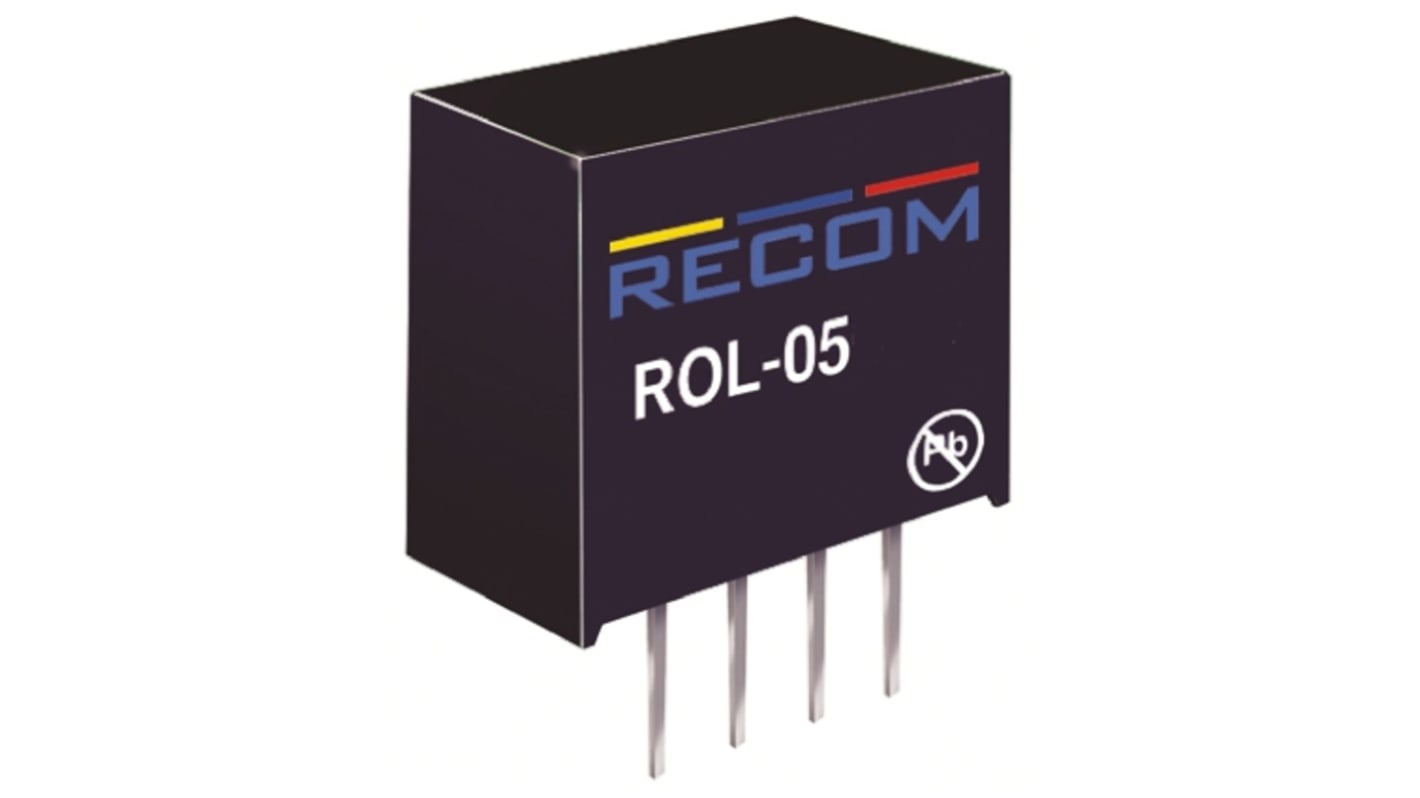

Recom ROL DC-DC Converter, 12V dc/ 42mA Output, 4.5 → 5.5 V dc Input, 0.5W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 777-3272
- Mfr. Part No.:
- ROL-0512S
- Brand:
- Recom
11 In stock - FREE next working day delivery available
Added
Price Each
£4.03
(exc. VAT)
£4.84
(inc. VAT)
| Units | Per unit |
| 1 + | £4.03 |
- RS Stock No.:
- 777-3272
- Mfr. Part No.:
- ROL-0512S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 0.5W SIP Single Output Unregulated Isolated DC-DC Converter - ROL Series
The ROL series is part of the Recom Econoline. This is a DC/DC unregulated converter, single output, SIP4, 0.5W. The Recom ROL DC/DC converter features a full industrial operating temperature range of -40°C to +85°C without derating. This Fully encapsulated DC/DC converter is ideal in general purpose low power isolation and voltage matching applications.
Industry Standard Pinout
1kVdc or 2kVdc isolation
UL94V-0 Package Material
Fully Encapsulated
Efficiency up to 87%
Operating Temperature Range (Free air convection) -40°C to +85°C
1kVdc or 2kVdc isolation
UL94V-0 Package Material
Fully Encapsulated
Efficiency up to 87%
Operating Temperature Range (Free air convection) -40°C to +85°C
Standards
EN 60950-1, UL 60950-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 0.5W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 42mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 4 |
| Isolation Voltage | 1 kV dc, 500V ac |
| Length | 11.5mm |
| Depth | 6mm |
| Series | ROL |
| Load Regulation | 0.1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 80 → 86% |
