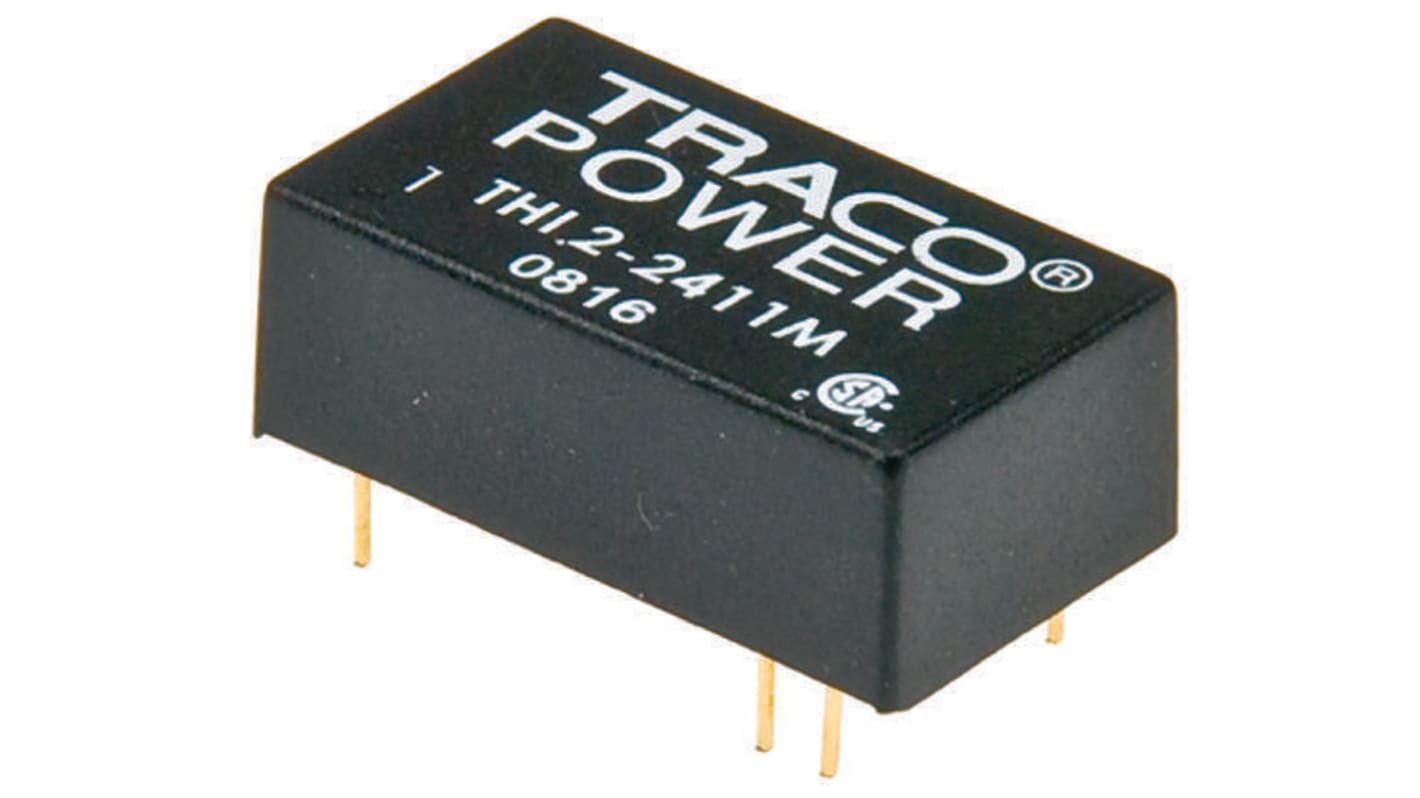

TRACOPOWER THI 2M DC-DC Converter, ±12V dc/ ±83mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +71°C Max

Bulk discount available

Subtotal (1 unit)*

£21.17

(exc. VAT)

£25.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£21.17
5 - 9£20.53
10 - 24£19.90
25 - 49£19.05
50 +£18.21

*price indicative

RS Stock No.:
666-4177
Mfr. Part No.:
THI 2-2422M
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

±12V dc

Input Voltage Range

21.6 → 26.4 V dc

Power Rating

2W

Input Voltage Nominal

24 V dc

Output Current

±83mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Package

DIP 16

Isolation Voltage

4kV dc

Length

23.8mm

Depth

8.6mm

Series

THI 2M

Railway Approved

No

Load Regulation

±10%

Minimum Temperature

-25°C

Maximum Temperature

+71°C

Medical Approved

Yes

COO (Country of Origin):
TW

Traco 2W DIP Single/Dual Output Unregulated Isolated DC-DC Converter - THI-2M Series


Industrial & Medical safety approvals
High isolation test voltage, 6kV peak
Reinforced insulation for working voltages up to 300Vac
Built-in pi-filter
Short circuit protection
UL94V-0 package material
16-pin DIP with industry standard pin-out

Note

Derates 2.5% per °C above 60°C.
MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1

Approvals

CB, CSA
