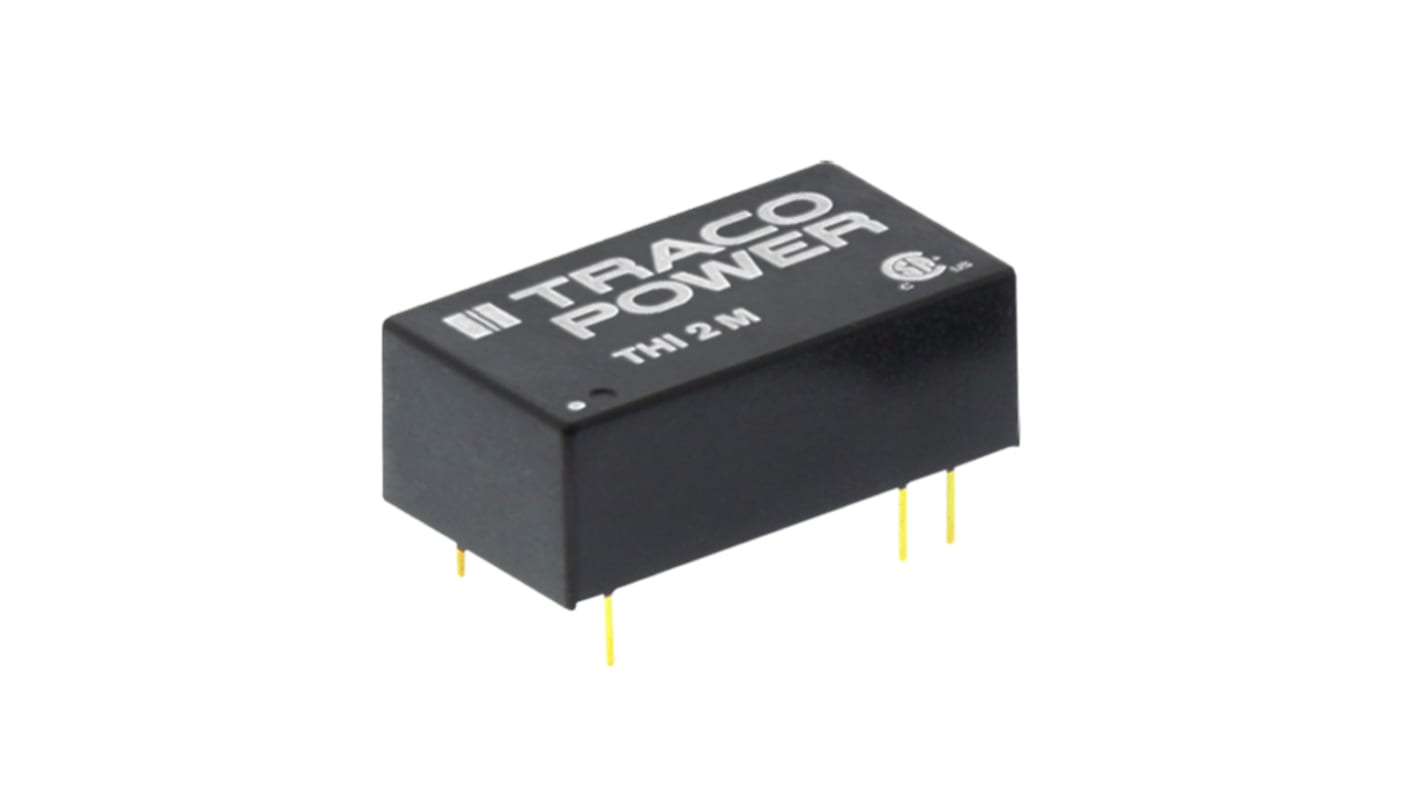

TRACOPOWER THI 2M DC-DC Converter, ±12V dc/ ±83mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +71°C Max
- RS Stock No.:
- 166-5282
- Mfr. Part No.:
- THI 2-2422M
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£202.40
(exc. VAT)
£242.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £202.40 | £20.24 |
5 - 9 | £196.32 | £19.632 |
10 - 24 | £190.25 | £19.025 |
25 - 49 | £182.16 | £18.216 |
50 + | £174.06 | £17.406 |
*price indicative
- RS Stock No.:
- 166-5282
- Mfr. Part No.:
- THI 2-2422M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±12V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±83mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 16 | |
Isolation Voltage | 4kV dc | |
Depth | 8.6mm | |
Length | 23.8mm | |
Series | THI 2M | |
Railway Approved | No | |
Load Regulation | ±10% | |
Maximum Temperature | +71°C | |
Medical Approved | Yes | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±83mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 16 | ||
Isolation Voltage 4kV dc | ||
Depth 8.6mm | ||
Length 23.8mm | ||
Series THI 2M | ||
Railway Approved No | ||
Load Regulation ±10% | ||
Maximum Temperature +71°C | ||
Medical Approved Yes | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TW
Traco 2W DIP Single/Dual Output Unregulated Isolated DC-DC Converter - THI-2M Series
Industrial & Medical safety approvals
High isolation test voltage, 6kV peak
Reinforced insulation for working voltages up to 300Vac
Built-in pi-filter
Short circuit protection
UL94V-0 package material
16-pin DIP with industry standard pin-out
High isolation test voltage, 6kV peak
Reinforced insulation for working voltages up to 300Vac
Built-in pi-filter
Short circuit protection
UL94V-0 package material
16-pin DIP with industry standard pin-out
Note
Derates 2.5% per °C above 60°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Standards
EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1
Approvals
CB, CSA
