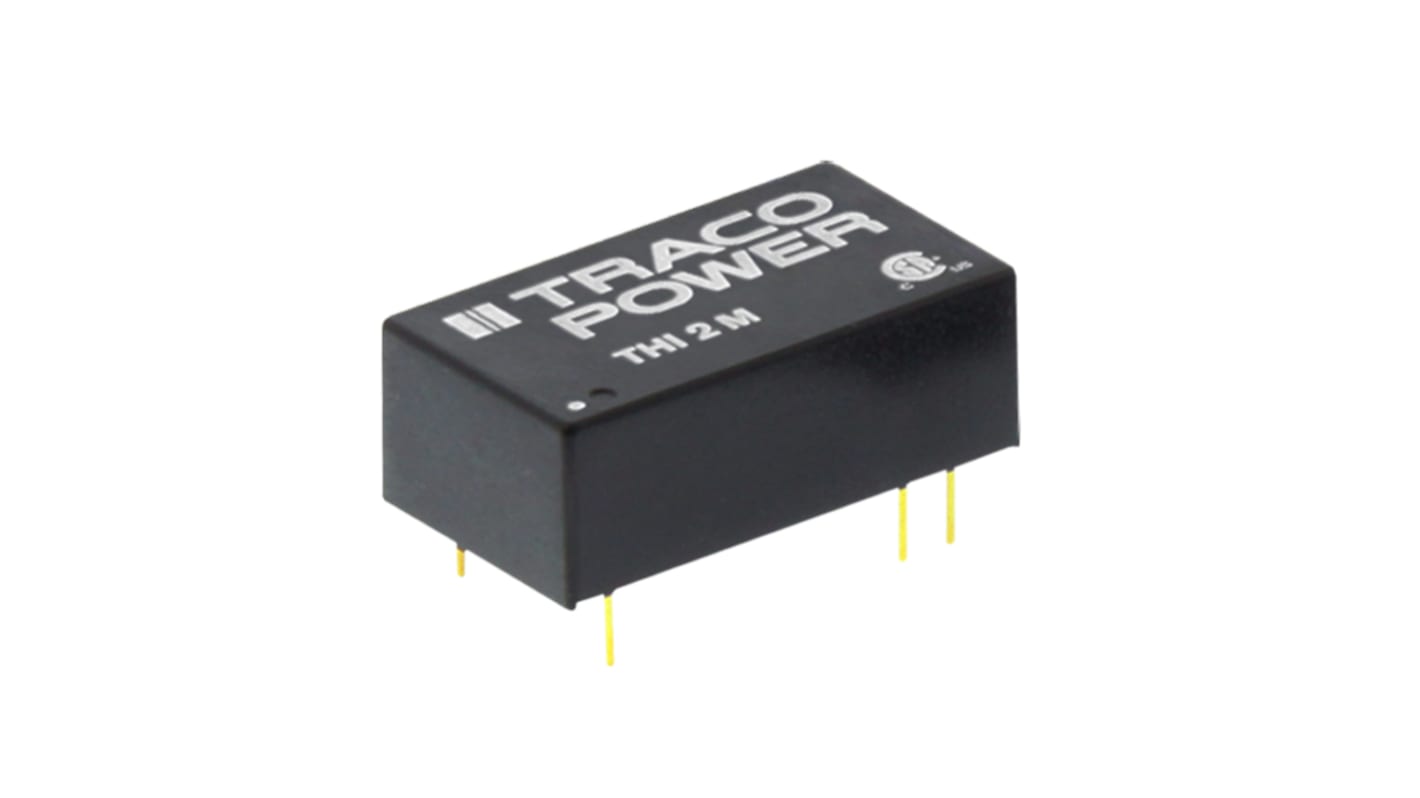

TRACOPOWER THI 2M DC/DC Converter, 12V/ 165 mA, 24V Input, 0V Input 2 W, Through Hole, Through Hole, 71 °C Max Temp -40

View all DC-DC Converters
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
166-5277
Mfr. Part No.:
THI 2-2412M
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V

Product Type

DC/DC Converter

Minimum Input Voltage

0V

Maximum Input Voltage

24V

Output Current 1

165mA

Output Current 2

165mA

Mount Type

Through Hole, Through Hole

Input Ratio

2:1

MTBF

2000000h

Number of Outputs

1

Output Voltage Adjustment Range

0/12 V

Ripple and Noise

150mV Pk-Pk

Number of Pins

6

Isolation Voltage

4kV dc

Package Type

DIP-16

Maximum Output Power

2W

Width

5.1mm

Length

23.8mm

Weight

18g

Standards/Approvals

EN, No, RoHS, UL

Series

THI 2M

Depth

8.6mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

71°C

Efficiency

66%

COO (Country of Origin):
TW

Traco 2W DIP Single/Dual Output Unregulated Isolated DC-DC Converter - THI-2M Series


Industrial & Medical safety approvals

High isolation test voltage, 6kV Peak

Reinforced insulation for working voltages up to 300Vac

Built-in pi-filter

Short circuit protection

UL94V-0 package material

16-pin DIP with industry standard pin-out

Note

Derates 2.5% per °C above 60°C.
MTBF to MIL-HDBK-217F (25°C).

Approvals

CB, CSA

Standards

EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1
