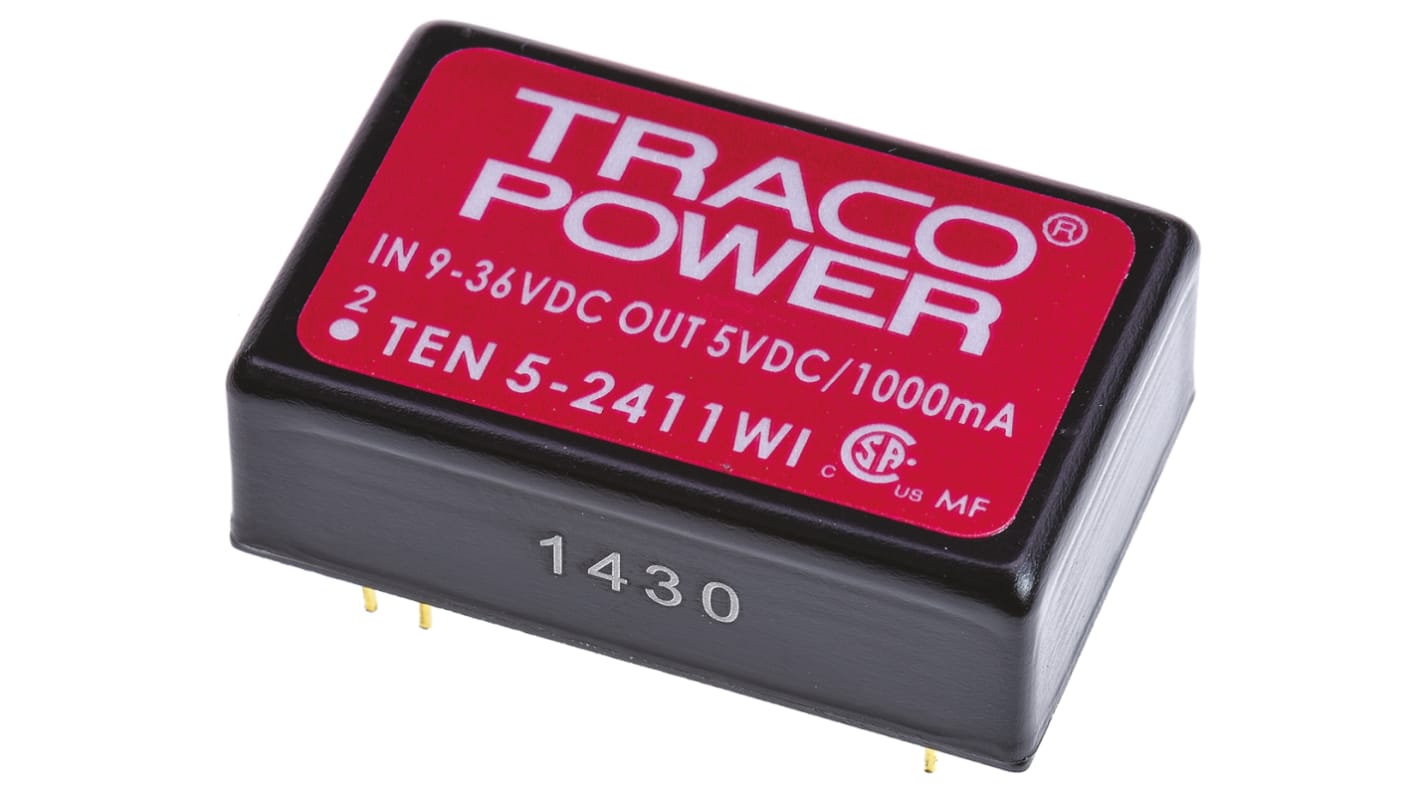

TRACOPOWER TEN 5WI DC/DC Converter, 5V dc/ 1 A, 36V dc Input, 18V Input 5 W, PCB, 85 °C Max Temp -40 °C Min Temp, 24-Pin
- RS Stock No.:
- 539-7012
- Distrelec Article No.:
- 169-52-295
- Mfr. Part No.:
- TEN 5-2411WI
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£25.69
(exc. VAT)
£30.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 08 June 2026
- Plus 99 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.69 |
| 5 - 9 | £24.92 |
| 10 - 24 | £24.16 |
| 25 - 49 | £23.13 |
| 50 + | £22.10 |
*price indicative
- RS Stock No.:
- 539-7012
- Distrelec Article No.:
- 169-52-295
- Mfr. Part No.:
- TEN 5-2411WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 1A | |
| Output Current 2 | 1A | |
| Mount Type | PCB | |
| Input Ratio | 2:1 | |
| Number of Outputs | 1 | |
| MTBF | 700000h | |
| Output Voltage Adjustment Range | 18/36 V | |
| Isolation Voltage | 1.5kV dc | |
| Number of Pins | 24 | |
| Package Type | DIP | |
| Maximum Output Power | 5W | |
| Series | TEN 5WI | |
| Width | 20mm | |
| Standards/Approvals | No | |
| Length | 32mm | |
| Depth | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 79% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 1A | ||
Output Current 2 1A | ||
Mount Type PCB | ||
Input Ratio 2:1 | ||
Number of Outputs 1 | ||
MTBF 700000h | ||
Output Voltage Adjustment Range 18/36 V | ||
Isolation Voltage 1.5kV dc | ||
Number of Pins 24 | ||
Package Type DIP | ||
Maximum Output Power 5W | ||
Series TEN 5WI | ||
Width 20mm | ||
Standards/Approvals No | ||
Length 32mm | ||
Depth 10mm | ||
Minimum Operating Temperature -40°C | ||
Efficiency 79% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, Short-Circuit Protection, 4:1 Input Range - TEN 5WI Series - TEN 5-2411WI
When efficient power distribution is a priority, GET on TOP of inputs with the help of this DC-DC converter from Traco Power. It accepts a wide 4:1 range of voltages from 9 to 36V DC, converting them into a reliable 5V DC output. A DIP-24 format means the unit has industry-standard pinouts for wide compatibility and accurate wiring that's done in a flash. You can depend on this converter to do its job in harsh conditions, as it has a broad operating temperature range between -40°C and +85°C.
Features & Benefits
• Built-in EMI input filter prevents electromagnetic interference from disrupting your signal
• Continuous short-circuit and overload protections safeguard your circuits from surges
• High efficiency rating of 78% means minimal energy is wasted as heat
• Through-hole mounted to retain a stable connection throughout industrial vibrations
• Low weight of 17g means it won't put strain on your system
Applications
• Industrial process controls
• Telecommunications networks
• Instrumentation equipment
What size is this DC-DC converter?
This is a conveniently Compact device with dimensions of just 31.8 (L) x 20.3 (W) x 10.2mm (D).
