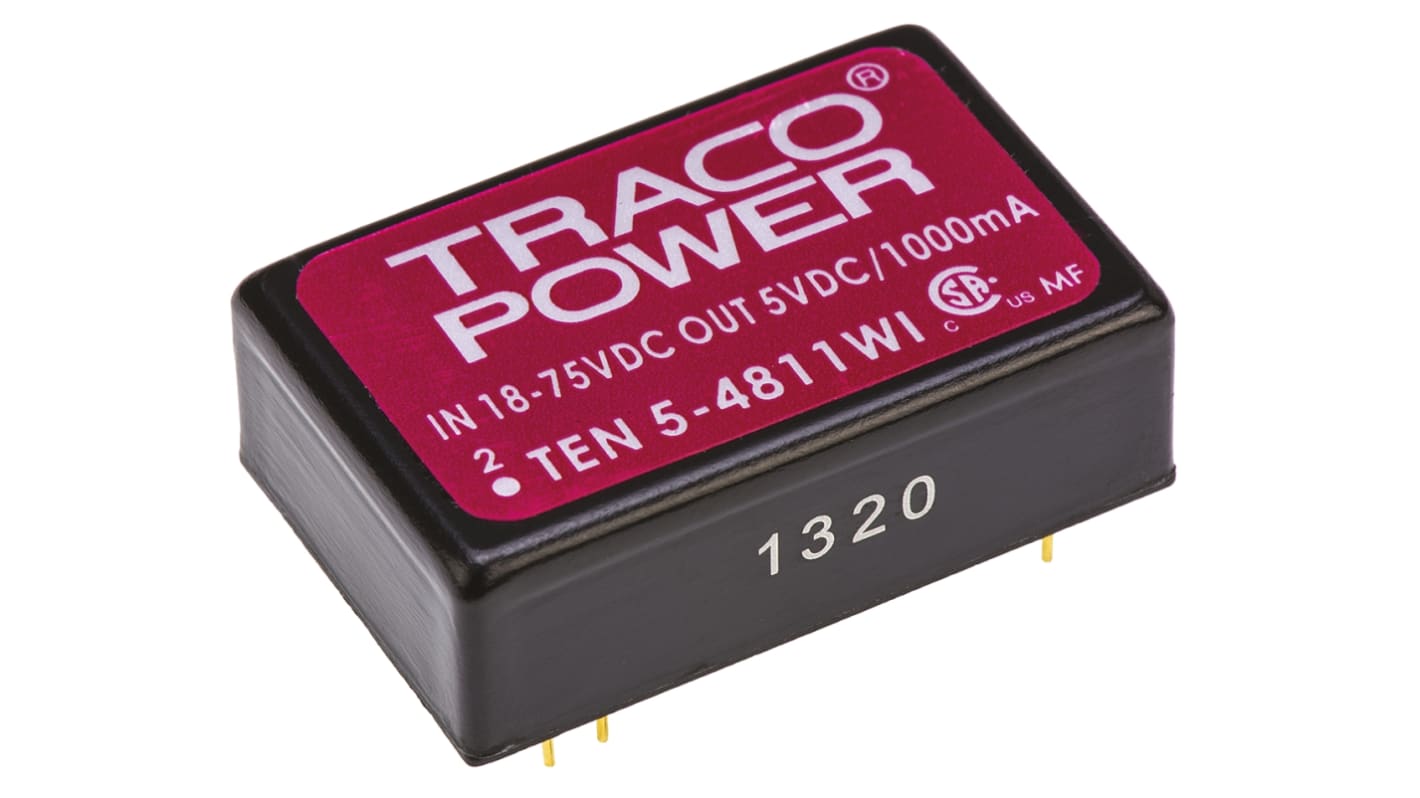

TRACOPOWER TEN 5WI DC-DC Converter, 5V dc/ 1A Output, 18 → 75 V dc Input, 6W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-6414
- Mfr. Part No.:
- TEN 5-4811WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£242.13
(exc. VAT)
£290.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £242.13 | £24.213 |
5 - 9 | £234.87 | £23.487 |
10 - 24 | £227.61 | £22.761 |
25 - 49 | £217.92 | £21.792 |
50 + | £208.24 | £20.824 |
*price indicative
- RS Stock No.:
- 161-6414
- Mfr. Part No.:
- TEN 5-4811WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 6W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 1A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 24 | |
Isolation Voltage | 1.5kV dc | |
Width | 20mm | |
Depth | 10mm | |
Length | 32mm | |
Series | TEN 5WI | |
Load Regulation | ±1% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Efficiency | 79% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 1A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Width 20mm | ||
Depth 10mm | ||
Length 32mm | ||
Series TEN 5WI | ||
Load Regulation ±1% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Efficiency 79% | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 79% Efficiency - TEN 5WI Series - TEN 5-4811WI
This DC-DC converter from Traco Power makes stepping down your power supply a breeze. It accepts a wide input voltage range from 18 to 75V DC and steps it down to a stable 5V DC output that's ideal for powering battery-operated equipment and industrial electronics. To stop your current from running in the wrong direction, the unit's protected against reversed voltage. This minimises the chance of equipment breakdowns and maintenance. Indefinite short-circuit protection monitors your power supply, so you can rest assured electrical spikes are quickly shut down.
Features & Benefits
• Industry-standard footprint for quick and easy mounting on your circuit board
• Automatically recovers if there's a short circuit to minimise manual intervention
• Mean time between failures of approximately 8 million hours for an extended service life
• Non-conductive baseplate reduces the risk of electric shocks
• Automatically recovers if there's a short circuit to minimise manual intervention
• Mean time between failures of approximately 8 million hours for an extended service life
• Non-conductive baseplate reduces the risk of electric shocks
Applications
• Power distribution
• Data and communication centres
• Instrumentation
• Hospitals
• Data and communication centres
• Instrumentation
• Hospitals
Will this DC-DC converter interfere with other electrical devices?
Thanks to a built-in filter, you can count on the unit's minimal interference with nearby electronic goods. It's safe to use in commercial, business or industrial environments, as it meets EN 55022 Class A emission standards.
