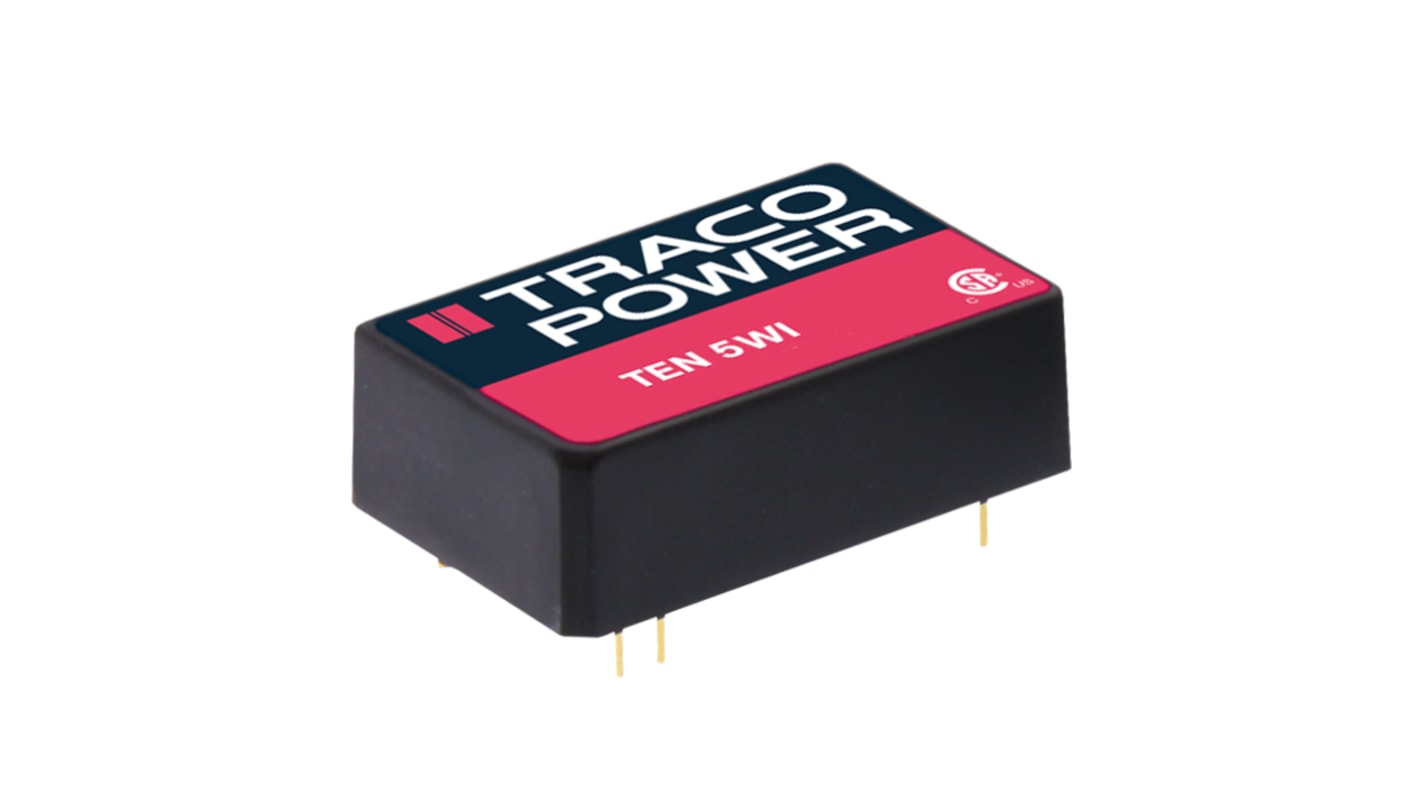

TRACOPOWER TEN 5WI DC-DC Converter, 5V dc/ 1A Output, 9 → 36 V dc Input, 6W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 124-7644
- Mfr. Part No.:
- TEN 5-2411WI
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£242.13
(exc. VAT)
£290.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 7 unit(s) shipping from 07 October 2025
- Plus 5 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £242.13 | £24.213 |
| 5 - 9 | £234.87 | £23.487 |
| 10 - 24 | £227.61 | £22.761 |
| 25 - 49 | £217.92 | £21.792 |
| 50 + | £208.24 | £20.824 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£25.44
(exc. VAT)
£30.53
(inc. VAT)
- RS Stock No.:
- 124-7644
- Mfr. Part No.:
- TEN 5-2411WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10mm | |
| Width | 20mm | |
| Length | 32mm | |
| Series | TEN 5WI | |
| Load Regulation | ±1% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 79% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10mm | ||
Width 20mm | ||
Length 32mm | ||
Series TEN 5WI | ||
Load Regulation ±1% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 79% | ||
