RS PRO Isolated DC-DC Converter, 12V dc/ 1.67A Output, 9 → 36V dc Input, 20W, PCB Mount, +100°C Max Temp -40°C

View all DC-DC Converters

Subtotal (1 unit)*

£39.37

(exc. VAT)

£47.24

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 54 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£39.37

*price indicative

RS Stock No.:
285-3139
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Output Voltage

12V dc

Input Voltage Range

9 → 36V dc

Power Rating

20W

Input Voltage Nominal

24V dc

Output Current

1.67A

Mounting Type

PCB Mount

Isolated

Yes

Output Voltage Adjustment Range

1%

Package

2 x 1 in

Isolation Voltage

1.6kV dc

Width

25.4mm

Depth

10.5mm

Length

50.8mm

Load Regulation

0.5%

Minimum Temperature

-40°C

Maximum Temperature

+100°C

Efficiency

89.5%

COO (Country of Origin):
TW

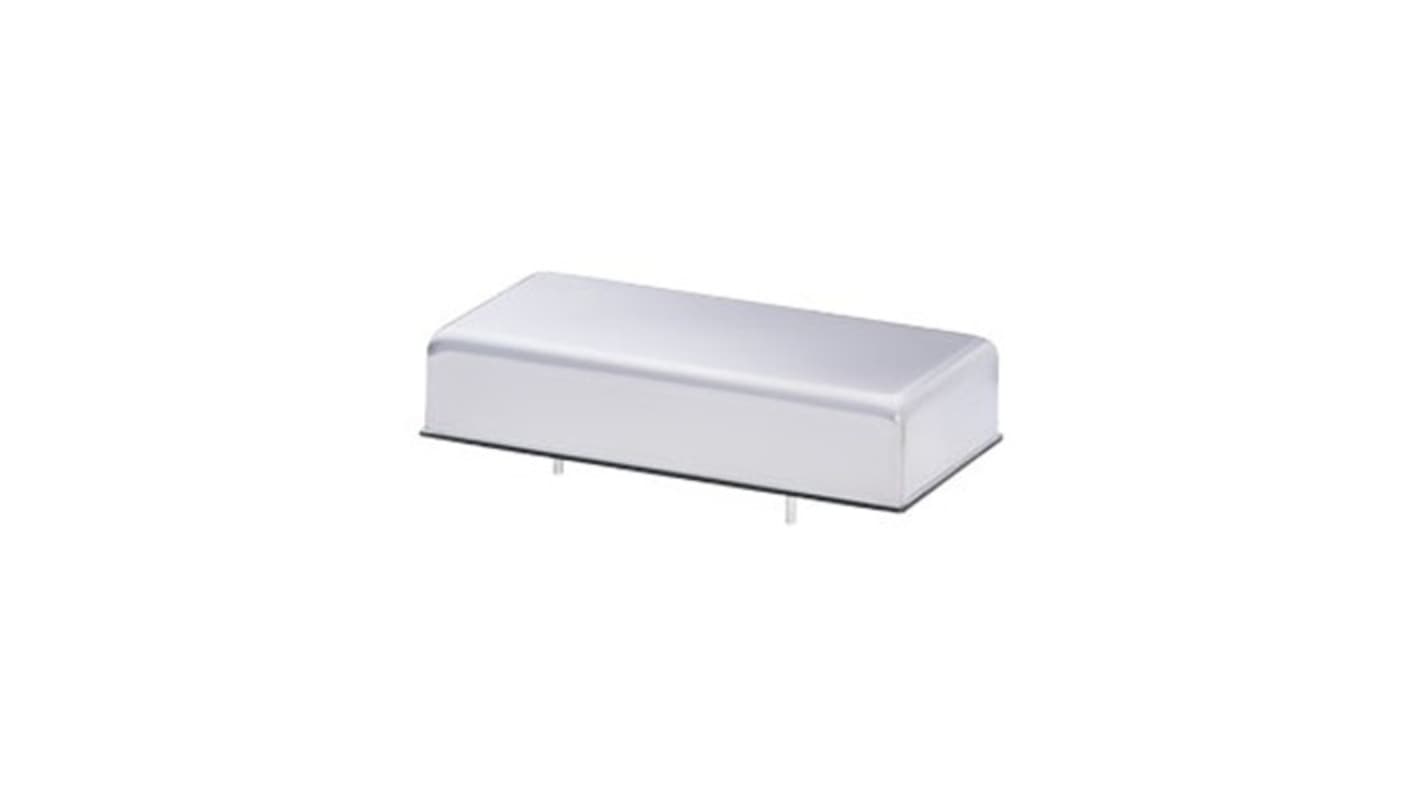

RS PRO 2x1in Isolated DC - DC Converter, 20W


A regulated 20W DC to DC converter isolated to 1600 Vdc featuring remote ON/OFF capabilities. Suitable for industrial control, electrical power and telecoms applications.
The converter features a 2x1in package with an industry standard pin layout and a 4:1 input voltage range.
Built into a Nickel-plated Copper case and potted with Silicone. The DC converter utilises natural convection cooling to achieve an efficiency of 89.5%, operating at temperatures from of -40℃ up to 100℃ (80℃ under full load).
The DC converter benefits from safety features including continuous short circuit protection with automatic recovery, over load protection of up to 180% and over voltage protection preventing damage to sensitive equipment.

Features and Benefits


DC -DC converter
20W output
Regulated
Isolated (1600 Vdc)
2 x 1in package
4:1 input voltage range
Remote ON/OFF
No minimum load required
Industry standard pin out
Nickel plated Copper case
Silicone potted
89.5% efficiency
50.8 x 25.4 x 10.5mm dimensions

Standards and Approvals: UL/IEC/EN 60950-1, MIL-STD-202G
