RS PRO PFB30WR4 Isolated DC-DC Converter, 24V dc/ 1250 mA, 36V dc Input, 9V Input 30 W, Through Hole, 105 °C Max Temp

View all DC-DC Converters

Subtotal (1 unit)*

£57.53

(exc. VAT)

£69.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£57.53

*price indicative

RS Stock No.:
285-3155
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Isolated DC-DC Converter

Output Voltage 1

24V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

1250mA

Mount Type

Through Hole

MTBF

560000h

Ripple and Noise

75mV Pk-Pk

Output Voltage Adjustment Range

10 %

Isolation Voltage

1.6kV dc

Number of Pins

6

Maximum Output Power

30W

Package Type

1 x 1 in

Weight

17g

Width

25.4mm

Series

PFB30WR4

Standards/Approvals

UL6681 EN6681 IEC6681

Depth

10mm

Length

25.4mm

Minimum Operating Temperature

-40°C

Efficiency

90.5%

Maximum Operating Temperature

105°C

COO (Country of Origin):
TW

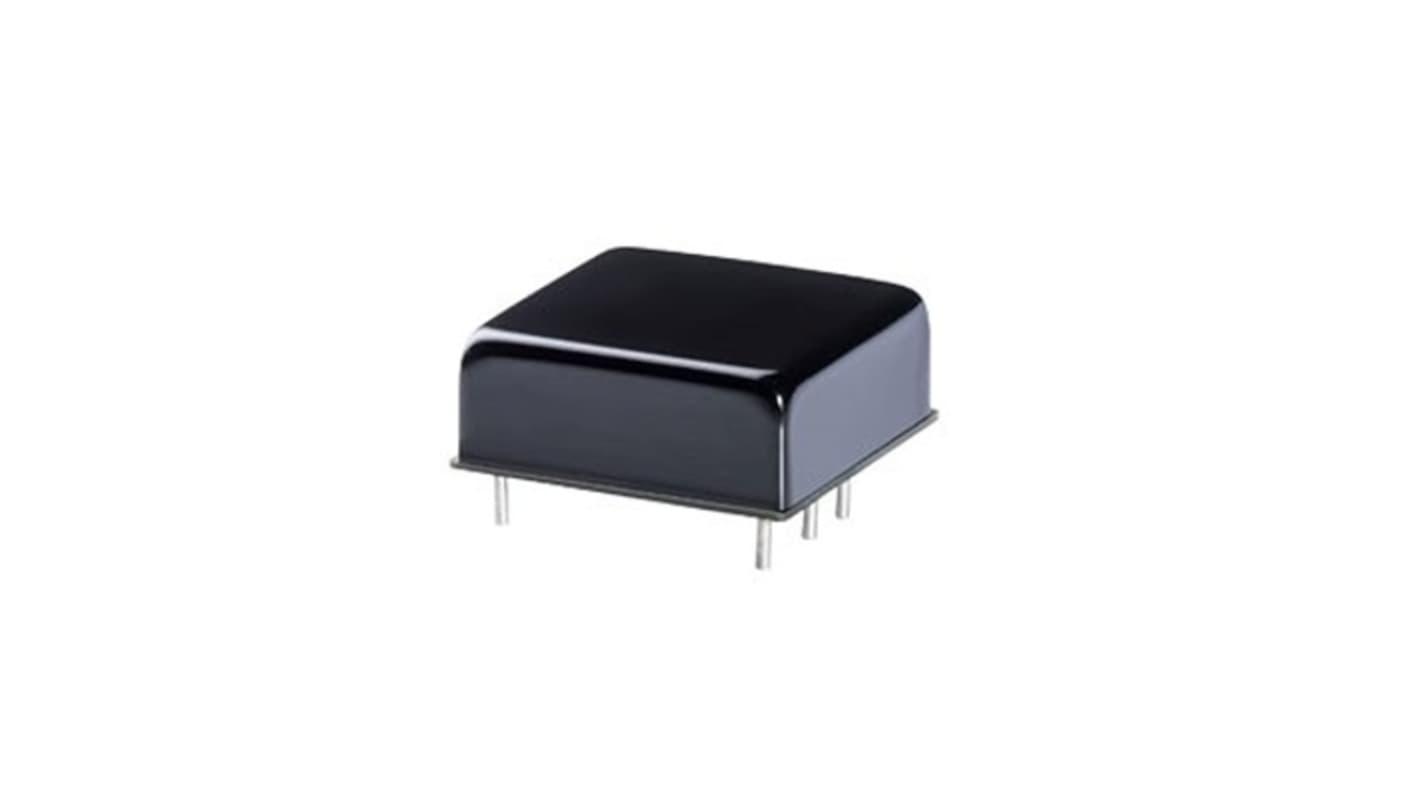

RS PRO 1x1in Isolated DC - DC Converter, 30W


A regulated 30W DC to DC converter isolated to 1600 Vdc featuring remote ON/OFF capabilities. Suitable for industrial control, stand by power, telecoms, and datacoms applications.

The converter features a 1x1in package with an industry standard pin layout and a 4:1 input voltage range.

Built into a Nickel plated case with a FR-4 base and potted with Silicone. The DC converter utilises free air convection cooling to achieve an efficiency of 90.5%, operating at temperatures from of -40℃ up to 105℃ (65℃ under full load).

The DC converter benefits from safety features including continuous short circuit protection with automatic recovery, over load protection to 170%, over temperature protection to 115℃ and over voltage protection preventing damage to sensitive equipment.

Features and Benefits


DC -DC converter

30W output

Regulated

Isolated (1600 Vdc)

1 x 1in package

4:1 input voltage range

Remote ON/OFF

No minimum load required

Industry standard pin out

Nickel plated metal case

Silicone potted

90.5% efficiency

25.4 x 25.4 x 10mm dimensions

Standards and Approvals: UL/IEC/EN 62368-1, MIL-STD-202G
