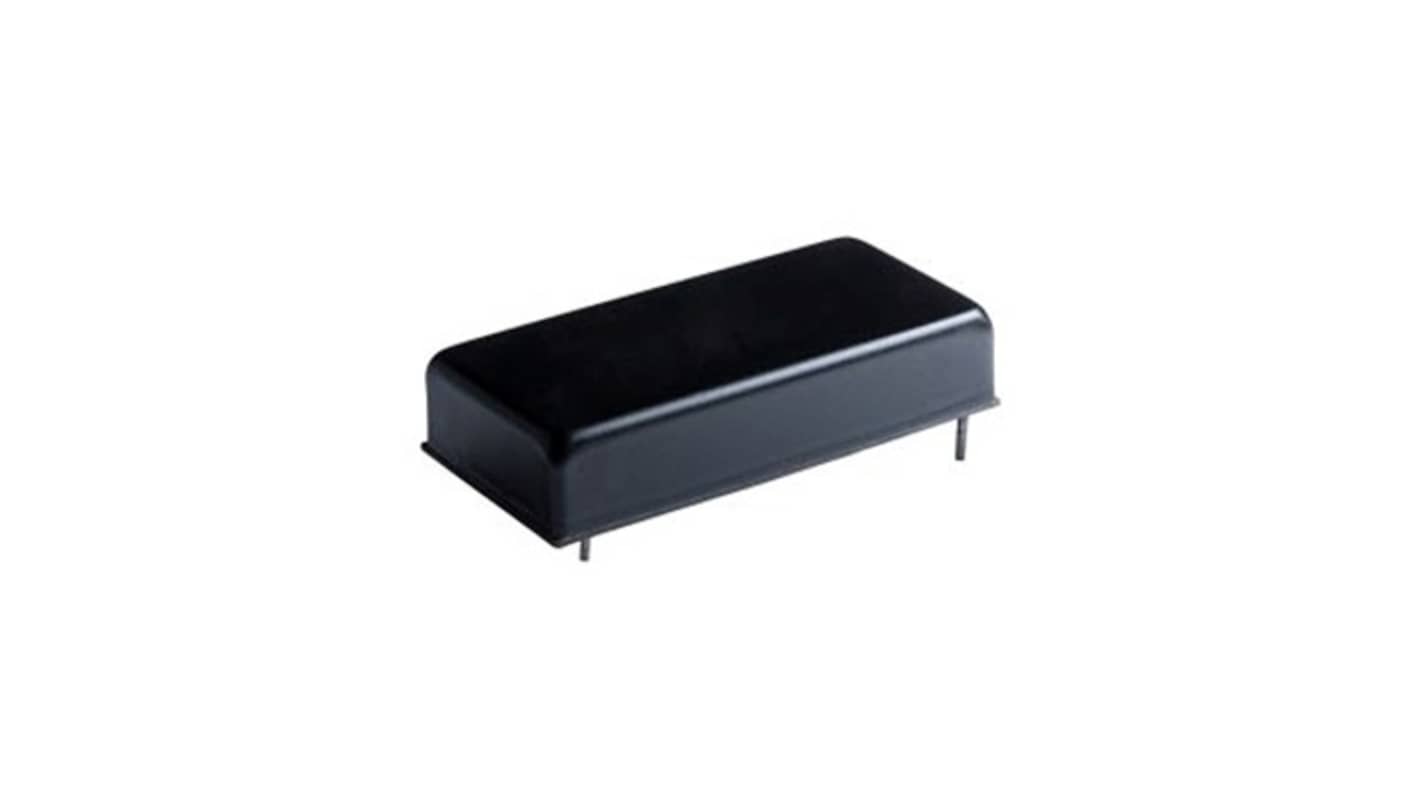

RS PRO PCB60WR4 Isolated DC-DC Converter, 12V dc/ 5000 mA, 36V dc Input, 9V Input 60 W, Through Hole, 105 °C Max Temp

View all DC-DC Converters

Subtotal (1 unit)*

£82.39

(exc. VAT)

£98.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 48 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£82.39

*price indicative

RS Stock No.:
285-3146
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Isolated DC-DC Converter

Output Voltage 1

12V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

5000mA

Mount Type

Through Hole

MTBF

205000h

Ripple and Noise

100mV Pk-Pk

Output Voltage Adjustment Range

10 %

Isolation Voltage

1.6kV dc

Number of Pins

6

Maximum Output Power

60W

Package Type

2 x 1 in

Depth

10.5mm

Series

PCB60WR4

Width

25.4mm

Standards/Approvals

EN62368-1/ IEC62368-1/ EN50155/ EN55032&35

Weight

37.6g

Length

50.8mm

Efficiency

91%

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

RS PRO 2x1in Isolated DC - DC Converter, 60W


A regulated 60W DC to DC converter isolated to 1600 Vdc featuring remote ON/OFF capabilities. Suitable for industrial control, telecoms, datacoms and railway applications.

The converter features a 2x1in package with an industry standard pin layout and a 4:1 input voltage range.

Built into a metal case and potted with Silicone. The DC converter utilises natural convection cooling to achieve an efficiency of 91%, operating at temperatures from of -40℃ up to 105℃ (55℃ under full load).

The DC converter benefits from safety features including continuous short circuit protection with automatic recovery, over load protection to 175%, over temperature protection to 115℃ and over voltage protection preventing damage to sensitive equipment.

Features and Benefits


DC -DC converter

60W output

Regulated

Isolated (1600 Vdc)

2 x 1in package

4:1 input voltage range

Remote ON/OFF

No minimum load required

Industry standard pin out

Metal case

Silicone potted

91% efficiency

50.8 x 25.4 x 10.5mm dimensions

Standards and Approvals: IEC/EN 62368-1, EN50155, EN55032, EN55035, MIL-STD-202G
