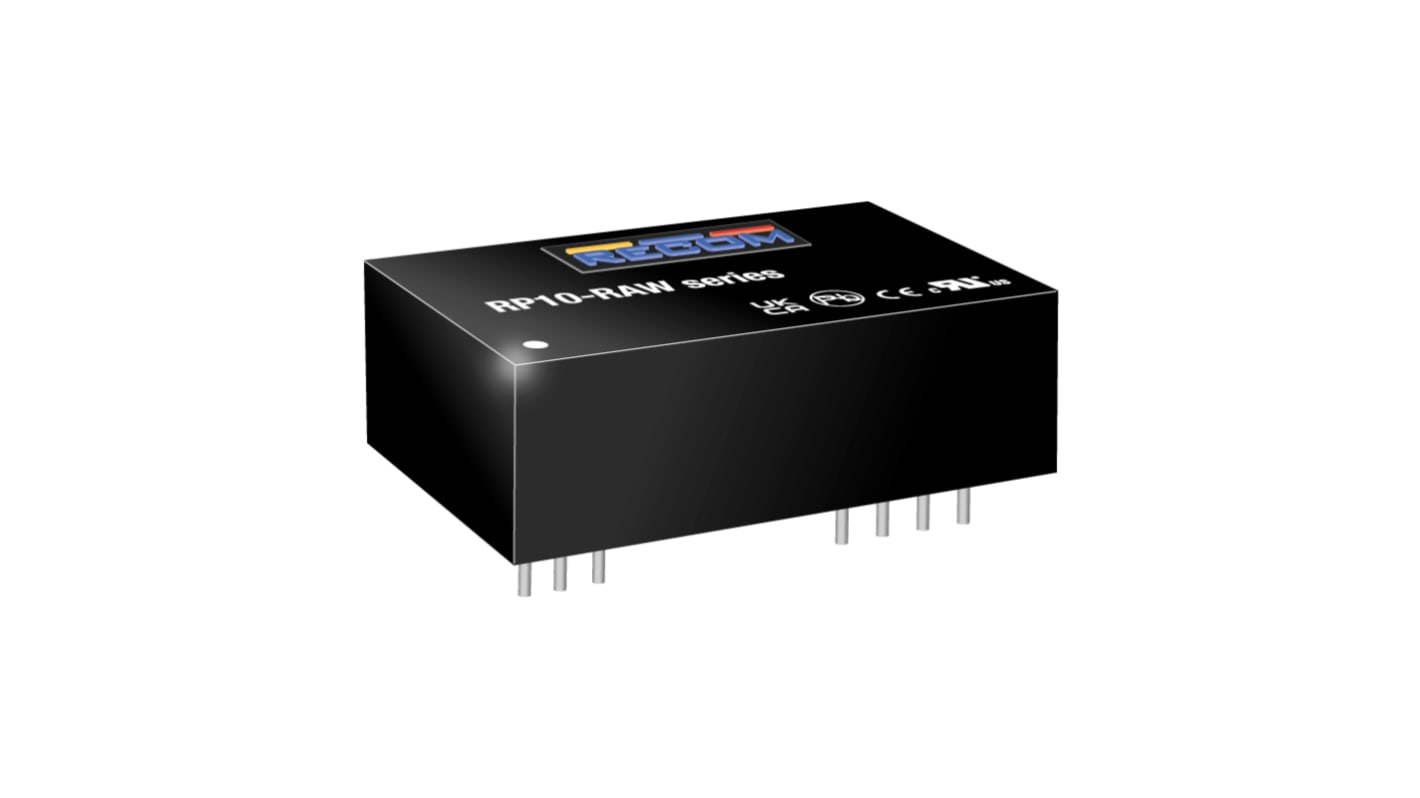

Recom RP10-RAW DC/DC Converter, 24V dc/ 416 mA, 160V dc Input, 110V dc Input 10 W, Through Hole, 75 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 7 units)*

£311.00

(exc. VAT)

£373.20

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£311.00£44.429
5 - 9£301.67£43.096
10 - 24£292.34£41.763
25 - 49£283.01£40.43
50 +£273.68£39.097

*price indicative

RS Stock No.:
274-5478
Mfr. Part No.:
RP10-11024SRAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Maximum Input Voltage

160V dc

Minimum Input Voltage

110V dc

Output Current 1

416mA

Mount Type

Through Hole

Output Voltage 2

15V

Input Ratio

4:1

Number of Outputs

2

Output Voltage Adjustment Range

-10 to +20 % (15,24V), -10 to +10 % (3.3,5,5.1,12V)

Ripple and Noise

75mV Pk-Pk

Isolation Voltage

3kV ac

Number of Pins

24

Package Type

DIP-24

Maximum Output Power

10W

Length

31.8mm

Standards/Approvals

UL6681, IECEN66811, EN550, EN50155, EN5011, CANCSAC. . 668114

Width

20.3mm

Depth

10.6mm

Series

RP10-RAW

Weight

14g

Maximum Operating Temperature

75°C

Efficiency

87.5%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The Recom DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range, making them suitable for railway and non-railway systems high voltage battery applications. It is Ideal for many harsh railwa

Input under voltage lockout

Reinforced isolation
