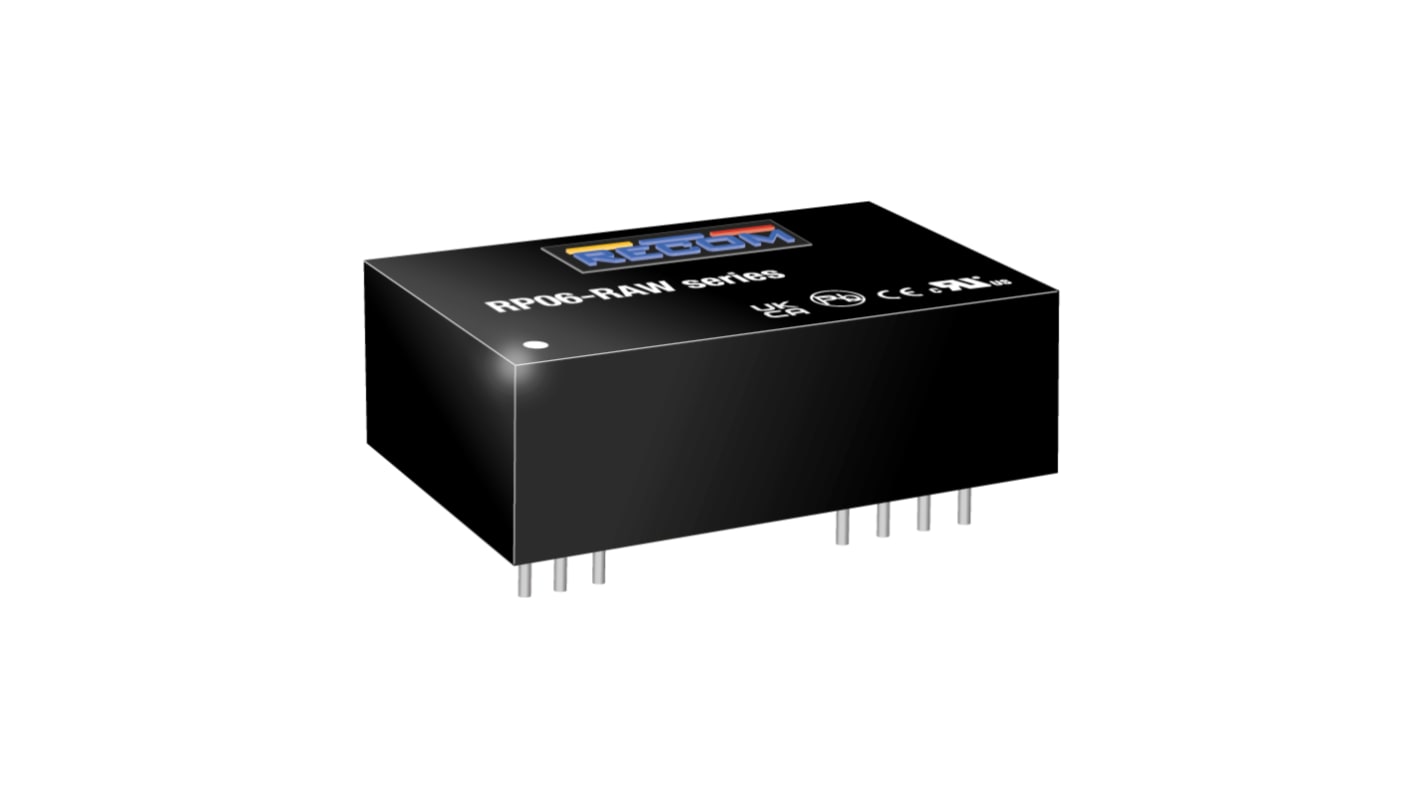

Recom RP06-RAW DC/DC Converter, 24V dc/ 250 mA, 160V dc Input, 110V dc Input 6 W, Through Hole, 85 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£33.49

(exc. VAT)

£40.19

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£33.49
5 - 9£32.56
10 - 24£31.68
25 - 49£30.84
50 +£30.05

*price indicative

Packaging Options:
RS Stock No.:
274-5467
Mfr. Part No.:
RP06-11024SRAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Minimum Input Voltage

110V dc

Maximum Input Voltage

160V dc

Output Current 1

250mA

Output Current 2

600mA

Mount Type

Through Hole

Output Voltage 2

15V

Input Ratio

4:1

Number of Outputs

2

MTBF

3036000h

Output Voltage Adjustment Range

-10 to +10 % (3.3,5,12V), -10 to +20 % (15,24V)

Ripple and Noise

75mV Pk-Pk

Isolation Voltage

3kV ac

Number of Pins

24

Maximum Output Power

6W

Package Type

DIP-24

Weight

14g

Series

RP06-RAW

Width

20.3mm

Standards/Approvals

EN55032, EN61373, IEC/EN62368-1-1, REACH, CAN/CSA-C22.2 No. 62368-1-14, RoHS 2+, UL62368-1, EN45545-2, EN50121-3-2, EN50155

Depth

10.6mm

Length

31.8mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

85%

COO (Country of Origin):
TW
The Recom DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range, making them suitable for railway and non-railway systems high voltage battery applications.

Input under voltage lockout

Reinforced isolation
