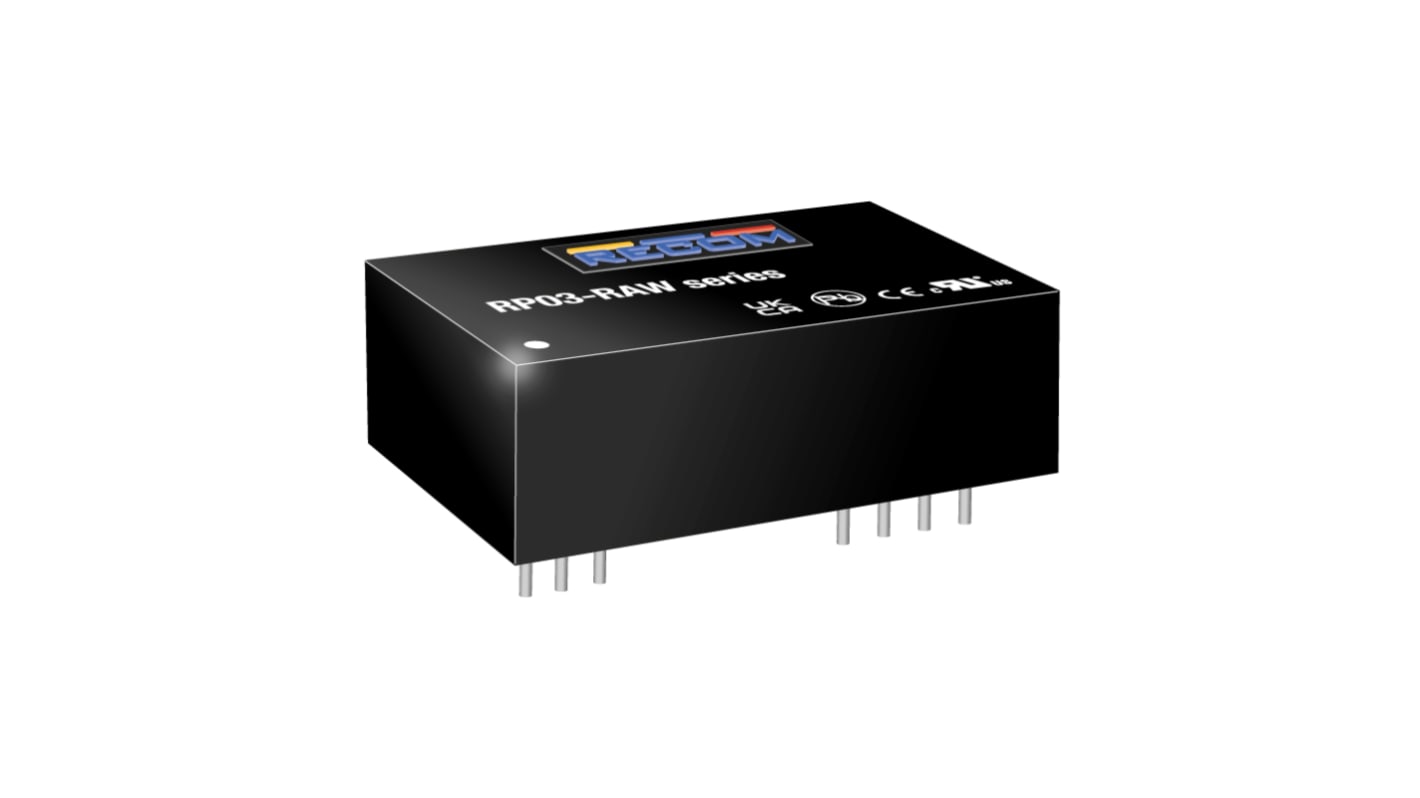

Recom RP03-RAW DC/DC Converter, 24V dc/ 125 mA, 160V dc Input, 110V dc Input 3 W, Through Hole, 91 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£39.24

(exc. VAT)

£47.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£39.24
5 - 9£38.06
10 - 24£36.88
25 - 49£35.71
50 +£34.53

*price indicative

Packaging Options:
RS Stock No.:
274-5457
Mfr. Part No.:
RP03-11024SRAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Minimum Input Voltage

110V dc

Maximum Input Voltage

160V dc

Output Current 1

125mA

Output Current 2

300mA

Output Voltage 2

15V

Mount Type

Through Hole

Input Ratio

4:1

MTBF

5069000h

Number of Outputs

2

Ripple and Noise

75mV Pk-Pk

Output Voltage Adjustment Range

-10 to +10 % (3.3,5,12V), -10 to +20 % (15,24V)

Isolation Voltage

3kV ac

Number of Pins

24

Package Type

DIP-24

Maximum Output Power

3W

Width

20.3mm

Weight

14g

Length

31.8mm

Depth

10.6mm

Series

RP03-RAW

Standards/Approvals

EN55032, EN61373, IEC/EN62368-1-1, REACH, RoHS2, UL62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN45545-2, EN50121-3-2, EN50155

Maximum Operating Temperature

91°C

Minimum Operating Temperature

-40°C

Efficiency

85%

The Recom DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range, making them suitable for railway and non-railway systems high voltage battery applications.

Input under voltage lockout

Reinforced isolation
