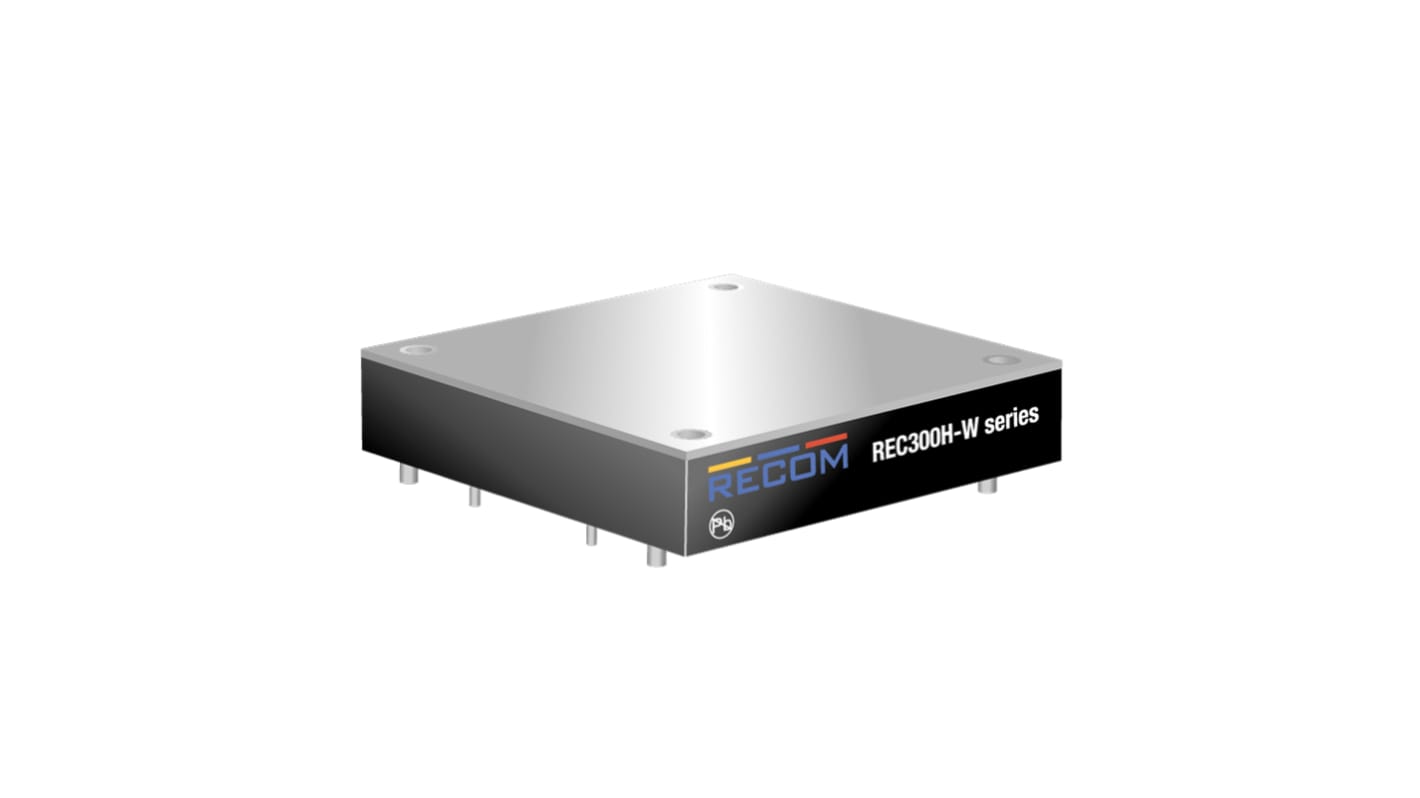

Recom REC300H-W DC/DC Converter, 12V dc/ 25 A, 36V dc Input, 24V dc Input 300 W, Through Hole, 100 °C Max Temp -40 °C
- RS Stock No.:
- 274-5419
- Mfr. Part No.:
- REC300H-2412SW
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£145.96
(exc. VAT)
£175.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 6 | £145.96 |
| 7 - 27 | £142.89 |
| 28 + | £136.76 |
*price indicative
- RS Stock No.:
- 274-5419
- Mfr. Part No.:
- REC300H-2412SW
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 24V dc | |
| Output Current 1 | 25A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 150000h | |
| Output Voltage Adjustment Range | ±10 % | |
| Ripple and Noise | 120mV Pk-Pk | |
| Isolation Voltage | 1.6kV | |
| Number of Pins | 9 | |
| Package Type | Encapsulated Plastic SMD | |
| Maximum Output Power | 300W | |
| Width | 61mm | |
| Standards/Approvals | IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1, IEC/EN62368-1 | |
| Weight | 120g | |
| Length | 57.9mm | |
| Depth | 10.2mm | |
| Series | REC300H-W | |
| Efficiency | 86.5% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 24V dc | ||
Output Current 1 25A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 150000h | ||
Output Voltage Adjustment Range ±10 % | ||
Ripple and Noise 120mV Pk-Pk | ||
Isolation Voltage 1.6kV | ||
Number of Pins 9 | ||
Package Type Encapsulated Plastic SMD | ||
Maximum Output Power 300W | ||
Width 61mm | ||
Standards/Approvals IEC/EN/UL62368, RoHS 2+ compliant, UL62368-1, IEC/EN62368-1 | ||
Weight 120g | ||
Length 57.9mm | ||
Depth 10.2mm | ||
Series REC300H-W | ||
Efficiency 86.5% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a half-brick encapsulated converter which delivers up to 300 Watt. Its wide input voltage range makes it flexible to install and it is especially suitable for 12, 15, 24 or 48 voltages range.
Minute insulation
Fully protected output
