Recom REC300H-W DC/DC Converter, 24V dc/ 12.5 A, 36V dc Input, 24V dc Input 300 W, Through Hole, 100 °C Max Temp -40 °C
- RS Stock No.:
- 274-5422
- Mfr. Part No.:
- REC300H-2424SW
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 7 units)*
£1,020.57
(exc. VAT)
£1,224.68
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £1,020.57 | £145.796 |
| 5 - 9 | £989.96 | £141.423 |
| 10 - 24 | £959.34 | £137.049 |
| 25 - 49 | £928.72 | £132.674 |
| 50 + | £898.11 | £128.301 |
*price indicative
- RS Stock No.:
- 274-5422
- Mfr. Part No.:
- REC300H-2424SW
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Minimum Input Voltage | 24V dc | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 12.5A | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 150000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 300mV Pk-Pk | |
| Output Voltage Adjustment Range | ±10 % | |
| Isolation Voltage | 1.6kV | |
| Number of Pins | 9 | |
| Maximum Output Power | 300W | |
| Package Type | Surface Mount | |
| Depth | 10.2mm | |
| Length | 57.9mm | |
| Width | 61mm | |
| Standards/Approvals | RoHS-2011/65/EU + AM-2015/863, EN IEC 62368-1:2020+A11:2020, IEC62368-1:2018 3rd Edition | |
| Series | REC300H-W | |
| Weight | 120g | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 86.5% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Minimum Input Voltage 24V dc | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 12.5A | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 150000h | ||
Number of Outputs 1 | ||
Ripple and Noise 300mV Pk-Pk | ||
Output Voltage Adjustment Range ±10 % | ||
Isolation Voltage 1.6kV | ||
Number of Pins 9 | ||
Maximum Output Power 300W | ||
Package Type Surface Mount | ||
Depth 10.2mm | ||
Length 57.9mm | ||
Width 61mm | ||
Standards/Approvals RoHS-2011/65/EU + AM-2015/863, EN IEC 62368-1:2020+A11:2020, IEC62368-1:2018 3rd Edition | ||
Series REC300H-W | ||
Weight 120g | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 86.5% | ||

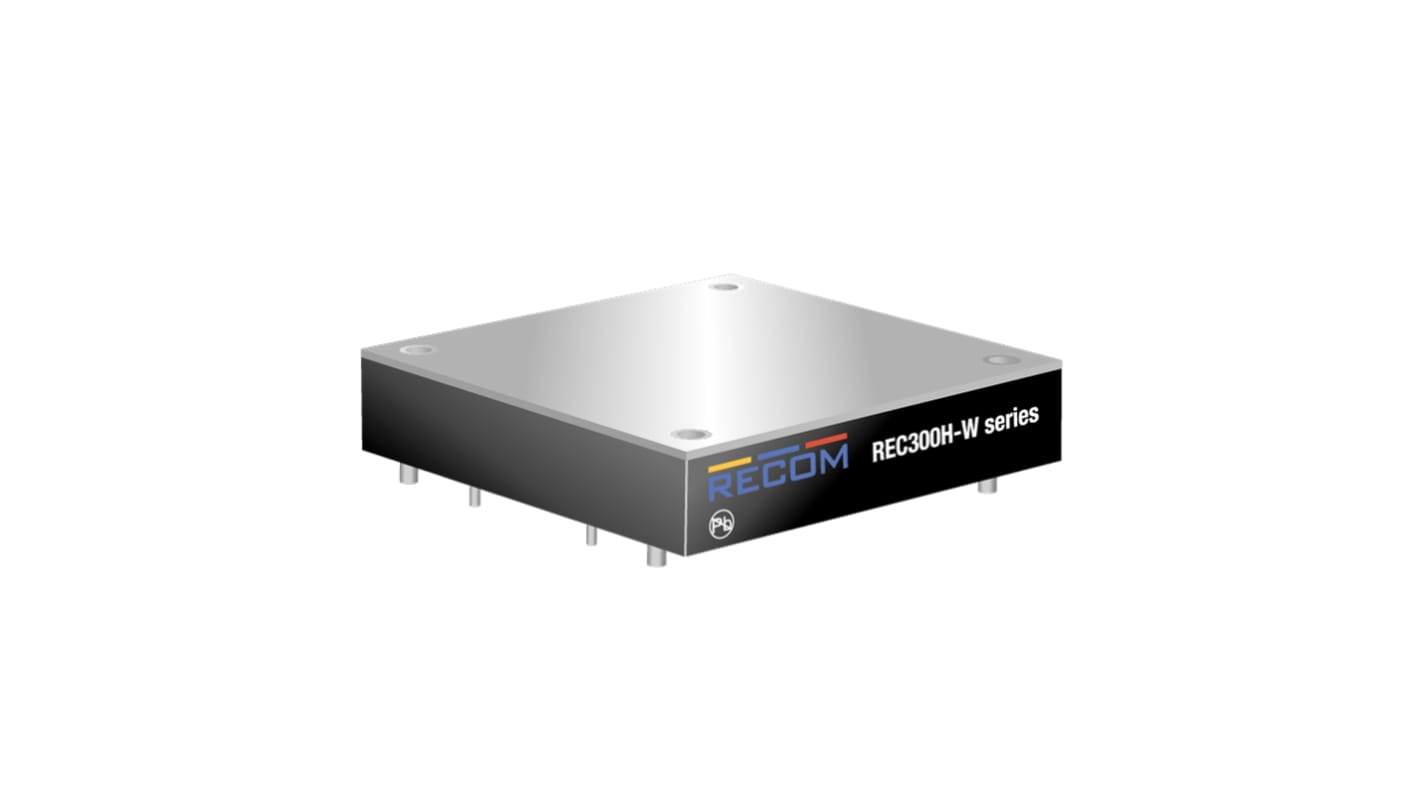

The Recom DC/DC Converter is a half-brick encapsulated converter which delivers up to 300 Watt. Its wide input voltage range makes it flexible to install and it is especially suitable for 12, 15, 24 or 48 voltages range.
Minute insulation
Fully protected output
