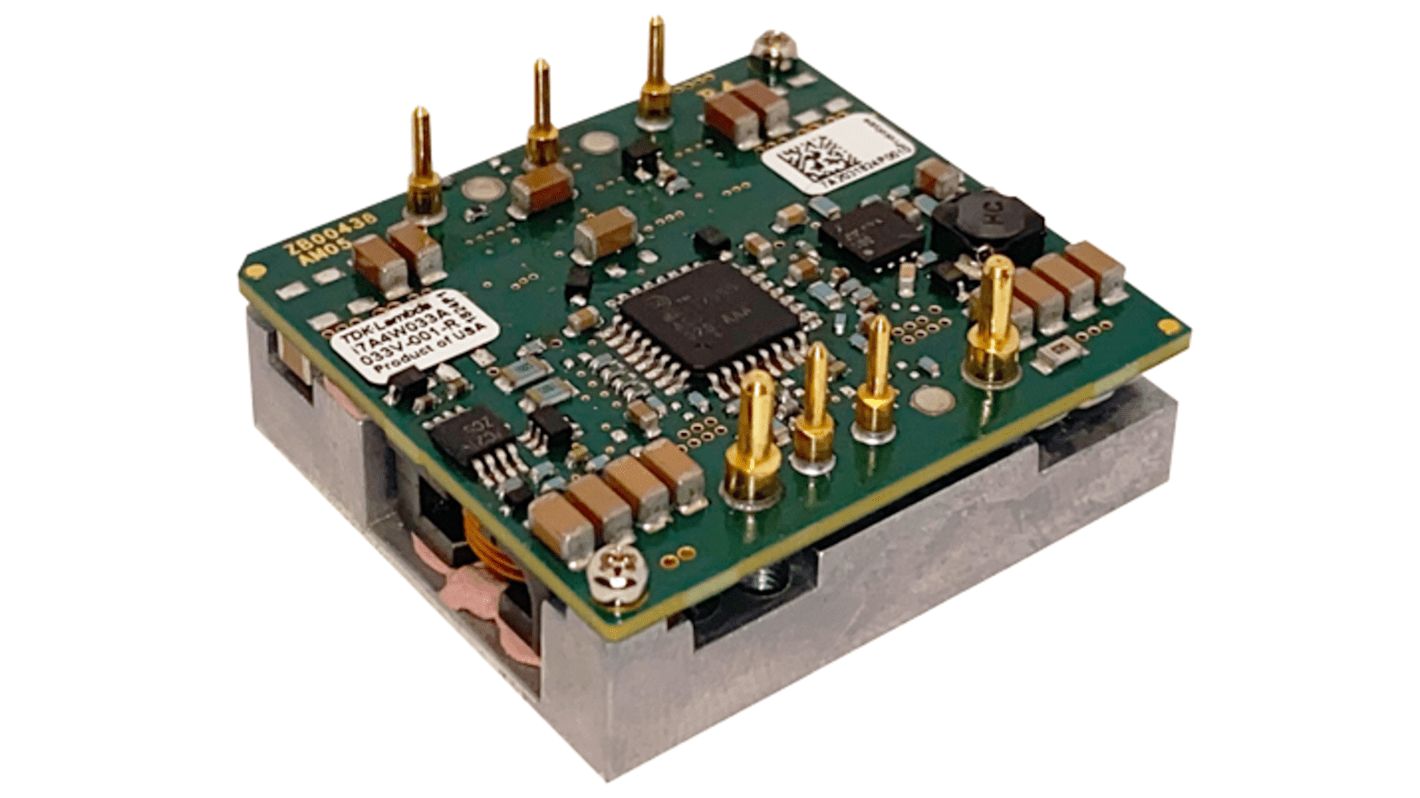

TDK-Lambda i7A DC/DC Converter, 3.3V dc/ 33 A, 18V Input, 18V, PCB, 125 °C Max Temp -55 °C Min Temp
- RS Stock No.:
- 221-4267
- Distrelec Article No.:
- 302-39-368
- Mfr. Part No.:
- I7A4W033A033V-0C1-R
- Brand:
- TDK-Lambda
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 221-4267
- Distrelec Article No.:
- 302-39-368
- Mfr. Part No.:
- I7A4W033A033V-0C1-R
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage 1 | 3.3V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 18V | |
| Minimum Input Voltage | 18V | |
| Mount Type | PCB | |
| MTBF | 5000000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 25mV | |
| Output Voltage Adjustment Range | 3.3 to 24 V, 3.3 to 18 V | |
| Output Current 1 | 33A | |
| Maximum Output Power | 500W | |
| Weight | 25g | |
| Length | 34mm | |
| Series | i7A | |
| Standards/Approvals | IEC/EN/UL/CSA 62368-1, CE mark | |
| Width | 36.8mm | |
| Minimum Operating Temperature | -55°C | |
| Efficiency | 0.98% | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 1 3.3V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 18V | ||
Minimum Input Voltage 18V | ||
Mount Type PCB | ||
MTBF 5000000h | ||
Number of Outputs 1 | ||
Ripple and Noise 25mV | ||
Output Voltage Adjustment Range 3.3 to 24 V, 3.3 to 18 V | ||
Output Current 1 33A | ||
Maximum Output Power 500W | ||
Weight 25g | ||
Length 34mm | ||
Series i7A | ||
Standards/Approvals IEC/EN/UL/CSA 62368-1, CE mark | ||
Width 36.8mm | ||
Minimum Operating Temperature -55°C | ||
Efficiency 0.98% | ||
Maximum Operating Temperature 125°C | ||
TDK-Lambda I7A series non-isolated DC-DC step-down converters are ideal for creating additional high current or high power 33A and 45A output voltage rails from a single output 24V, 36V or 48V AC to DC or DC to DC power supply. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range.
Wide 3.3 to 18V or 3.3 to 24V output adjustment
18 to 32V or 18 to 60V input ranges
Low component count with minimal external components
Minimal derating requirements in low airflow environments
