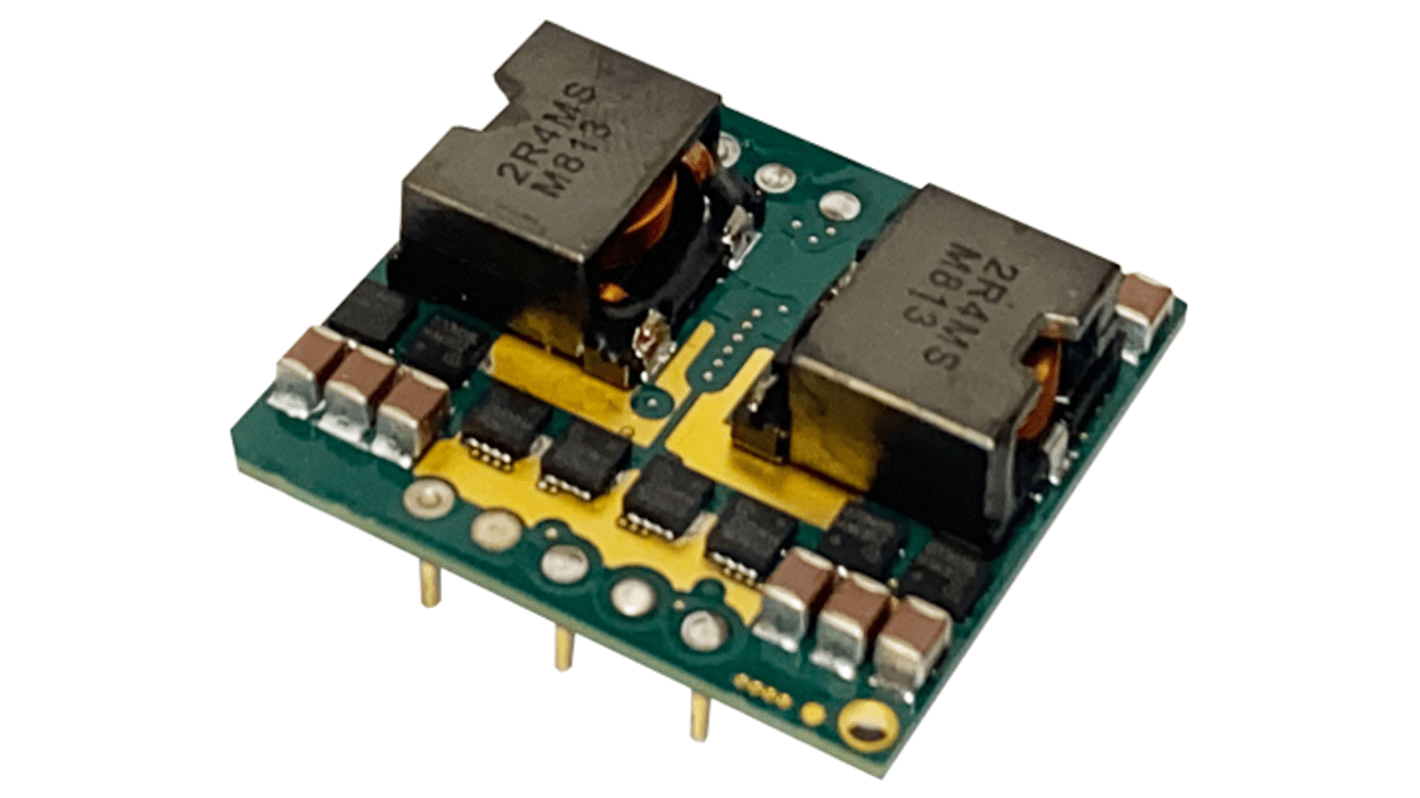

TDK-Lambda i7A DC-DC Converter, 3.3 → 2.4V dc/ 33A Output, 18 → 60 V dc Input, 500W, PCB Mount, +125°C
- RS Stock No.:
- 221-4265
- Distrelec Article No.:
- 302-39-366
- Mfr. Part No.:
- I7A4W033A033V-000-R
- Brand:
- TDK-Lambda
Save 12% when you buy 50 units
Subtotal (1 unit)*
£58.71
(exc. VAT)
£70.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 999,999,996 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £58.71 |
5 - 9 | £56.95 |
10 - 24 | £55.19 |
25 - 49 | £53.43 |
50 + | £51.66 |
*price indicative
- RS Stock No.:
- 221-4265
- Distrelec Article No.:
- 302-39-366
- Mfr. Part No.:
- I7A4W033A033V-000-R
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 3.3 → 2.4V dc | |
Input Voltage Range | 18 → 60 V dc | |
Power Rating | 500W | |
Input Voltage Nominal | 18 V | |
Output Current | 33A | |
Mounting Type | PCB Mount | |
Isolated | No | |
Number of Outputs | 1 | |
Width | 36.8mm | |
Length | 34mm | |
Series | i7A | |
Load Regulation | 0.004 | |
Maximum Temperature | +125°C | |
Efficiency | 0.98 | |
Minimum Temperature | -55°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 3.3 → 2.4V dc | ||
Input Voltage Range 18 → 60 V dc | ||
Power Rating 500W | ||
Input Voltage Nominal 18 V | ||
Output Current 33A | ||
Mounting Type PCB Mount | ||
Isolated No | ||
Number of Outputs 1 | ||
Width 36.8mm | ||
Length 34mm | ||
Series i7A | ||
Load Regulation 0.004 | ||
Maximum Temperature +125°C | ||
Efficiency 0.98 | ||
Minimum Temperature -55°C | ||
- COO (Country of Origin):
- MY
TDK-Lambda I7A series non-isolated DC-DC step-down converters are ideal for creating additional high current or high power 33A and 45A output voltage rails from a single output 24V, 36V or 48V AC to DC or DC to DC power supply. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range.
Wide 3.3 to 18V or 3.3 to 24V output adjustment
18 to 32V or 18 to 60V input ranges
Low component count with minimal external components
Minimal derating requirements in low airflow environments
18 to 32V or 18 to 60V input ranges
Low component count with minimal external components
Minimal derating requirements in low airflow environments
