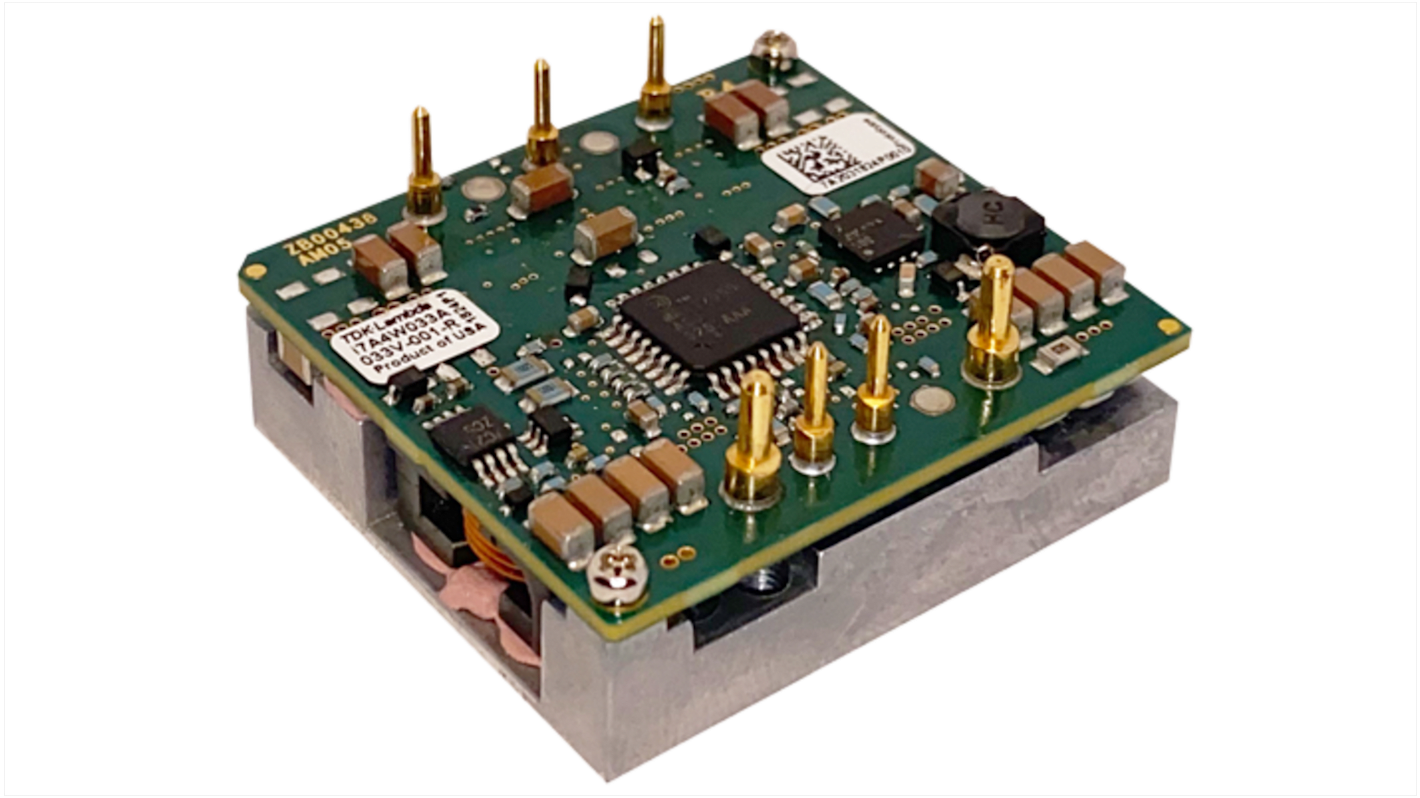

TDK-Lambda i7A DC/DC Converter, 24V, 3.3 V/, 60V Input 33 A, 9V Input, PCB, 125 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 283-1800
- Distrelec Article No.:
- 303-60-364
- Mfr. Part No.:
- I7A24045A033V-0C1-R
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£75.23
(exc. VAT)
£90.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £75.23 |
*price indicative
- RS Stock No.:
- 283-1800
- Distrelec Article No.:
- 303-60-364
- Mfr. Part No.:
- I7A24045A033V-0C1-R
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24, 3.3V | |
| Maximum Input Voltage | 60V | |
| Minimum Input Voltage | 9V | |
| Mount Type | PCB | |
| MTBF | 5000000h | |
| Output Voltage Adjustment Range | 0.8/24 V | |
| Ripple and Noise | 40mV Pk-Pk | |
| Output Voltage 2 | 8V dc | |
| Output Current 1 | 33A | |
| Output Current 2 | 60A | |
| Maximum Output Power | 750W | |
| Length | 34mm | |
| Series | i7A | |
| Standards/Approvals | UKCA Mark, IEC/EN/UL/CSA/EN62368-1, CE mark | |
| Width | 36.8mm | |
| Weight | 70g | |
| Efficiency | 98.5% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24, 3.3V | ||
Maximum Input Voltage 60V | ||
Minimum Input Voltage 9V | ||
Mount Type PCB | ||
MTBF 5000000h | ||
Output Voltage Adjustment Range 0.8/24 V | ||
Ripple and Noise 40mV Pk-Pk | ||
Output Voltage 2 8V dc | ||
Output Current 1 33A | ||
Output Current 2 60A | ||
Maximum Output Power 750W | ||
Length 34mm | ||
Series i7A | ||
Standards/Approvals UKCA Mark, IEC/EN/UL/CSA/EN62368-1, CE mark | ||
Width 36.8mm | ||
Weight 70g | ||
Efficiency 98.5% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
The TDK-Lambda is a Non-Isolated Step Down DC-DC Converter. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range and optional current limit (OCP) adjust. Three mechanical configurations are available, low profile open frame, baseplate construction for conduction cooling, or models with an integral heat sink for convection or forced air cooling.
High Power Density
Less Board Area Needed
Longer Battery Life
Less Power Consumed
One Part Supports Multiple System Voltages
Can Operate From Different DC Source Voltages Including Batteries
Low Cost
Easy To Cool In End System
