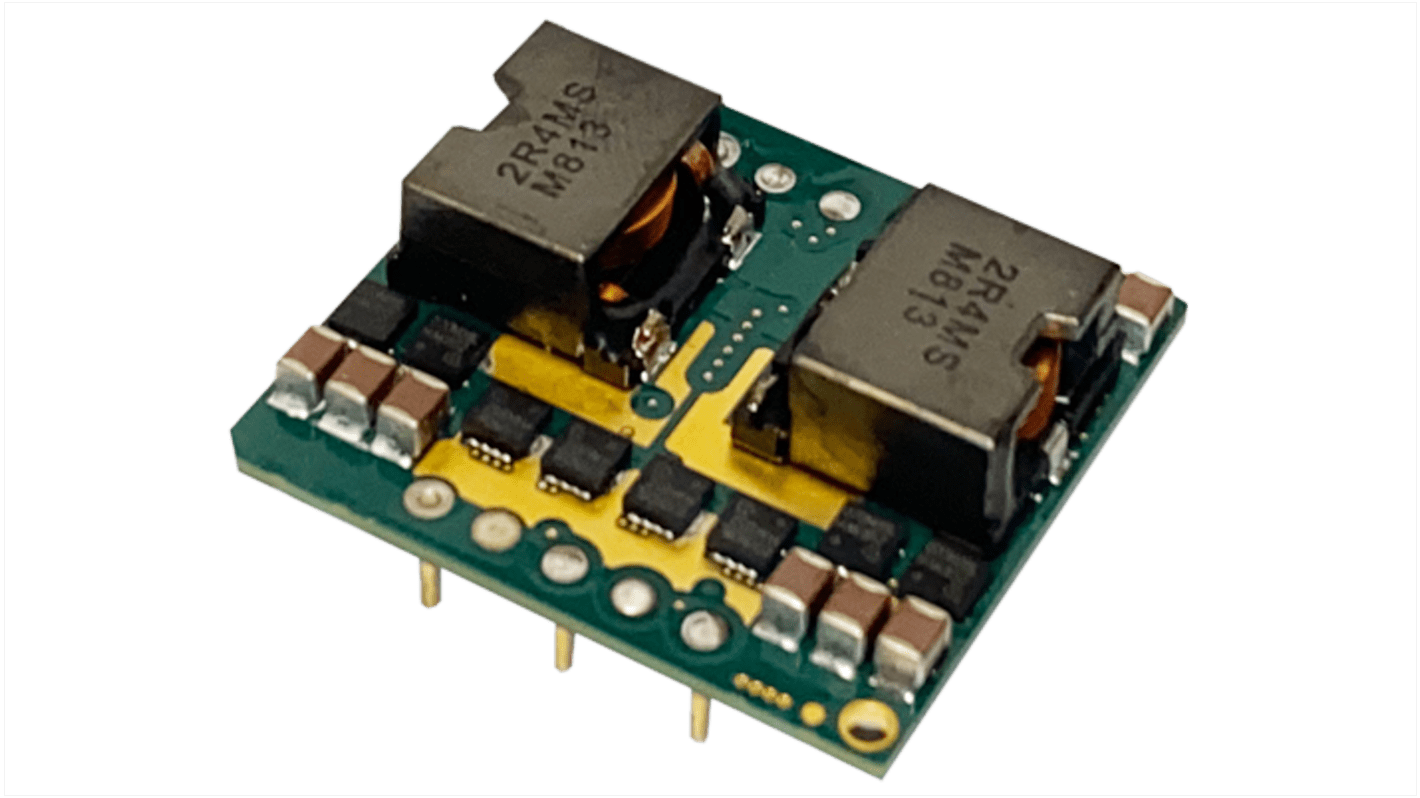

TDK-Lambda i7A DC-DC Converter, 0.8 → 8V dc/ 60A Output, 9 → 18 V dc Input, 400W, PCB Mount, +125°C Max
- RS Stock No.:
- 242-648
- Distrelec Article No.:
- 304-11-807
- Mfr. Part No.:
- i7A12060A008V-003-R
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£54.10
(exc. VAT)
£64.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 15 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £54.10 |
*price indicative
- RS Stock No.:
- 242-648
- Distrelec Article No.:
- 304-11-807
- Mfr. Part No.:
- i7A12060A008V-003-R
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 0.8 → 8V dc | |
Input Voltage Range | 9 → 18 V dc | |
Power Rating | 400W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 60A | |
Mounting Type | PCB Mount | |
Series | i7A | |
Maximum Temperature | +125°C | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 0.8 → 8V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 400W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 60A | ||
Mounting Type PCB Mount | ||
Series i7A | ||
Maximum Temperature +125°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- MY
The TDK Lambda DC to DC Step Down Converter offers low ripple and excellent dynamic response with a wide input range and adjustable output. It includes an optional current limit adjust for overcurrent protection. This cost effective converter supports multiple system voltages, operates from various DC sources, and is easy to cool in end systems. Ideal for portable devices and industrial applications.
High efficiency
Low component count with minimal external components
Minimal derating requirements in low airflow environments
High power density
Low component count with minimal external components
Minimal derating requirements in low airflow environments
High power density
