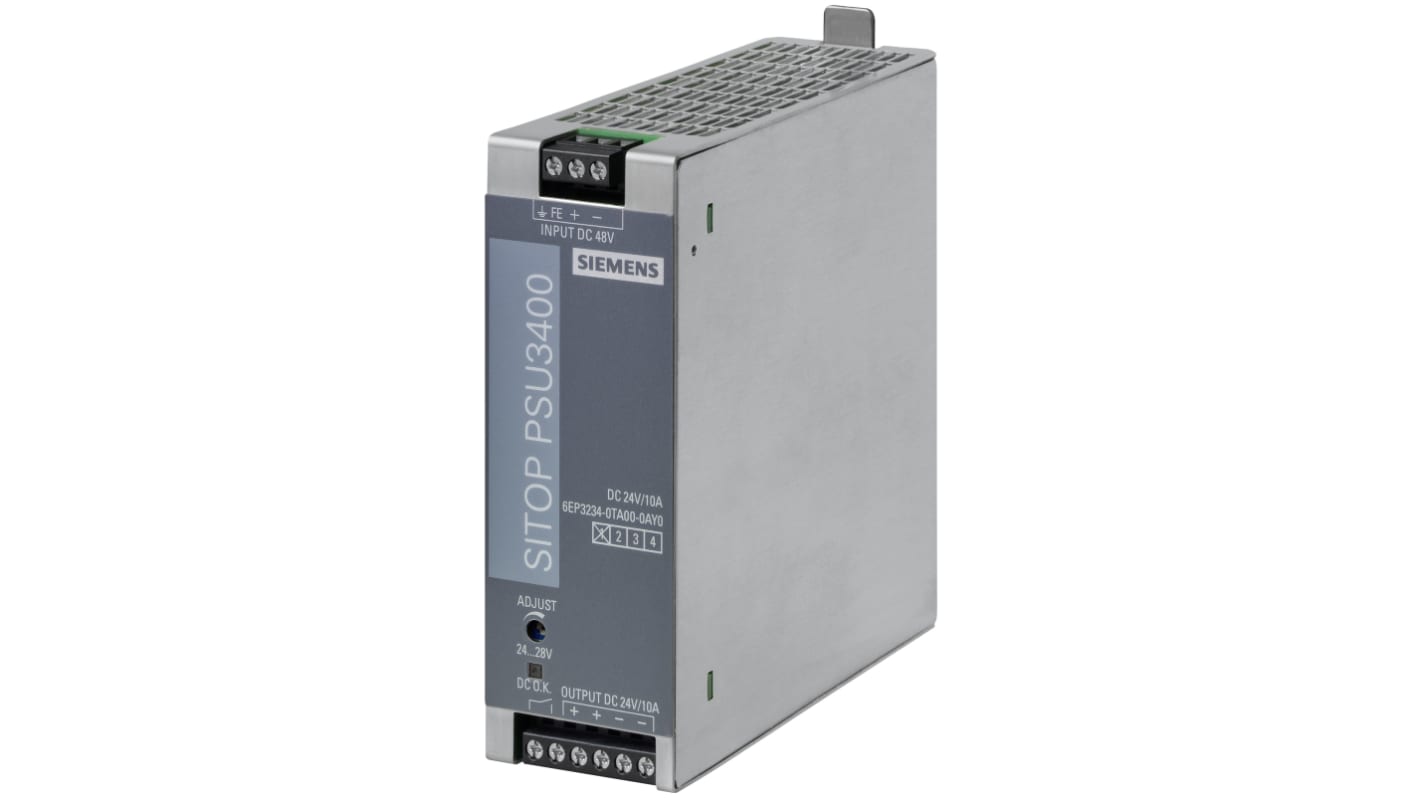

Siemens SITOP PSU3400 DC/DC Converter, 24V dc/ 10 A, 54V dc Input, 48V dc Input, DIN Rail 256 W, 70 °C Max Temp 70 °C
- RS Stock No.:
- 184-3976
- Distrelec Article No.:
- 303-97-085
- Mfr. Part No.:
- 6EP3234-0TA00-0AY0
- Brand:
- Siemens
Subtotal (1 unit)*
£252.50
(exc. VAT)
£303.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £252.50 |
*price indicative
- RS Stock No.:
- 184-3976
- Distrelec Article No.:
- 303-97-085
- Mfr. Part No.:
- 6EP3234-0TA00-0AY0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 48V dc | |
| Maximum Input Voltage | 54V dc | |
| Output Current 1 | 10A | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 24/28 V dc | |
| Ripple and Noise | 150mV | |
| Maximum Output Power | 256W | |
| Weight | 0.6kg | |
| Series | SITOP PSU3400 | |
| Width | 120mm | |
| Standards/Approvals | UL, cULus | |
| Length | 42mm | |
| Depth | 125mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | 70°C | |
| Efficiency | 93.5% | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 48V dc | ||
Maximum Input Voltage 54V dc | ||
Output Current 1 10A | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 24/28 V dc | ||
Ripple and Noise 150mV | ||
Maximum Output Power 256W | ||
Weight 0.6kg | ||
Series SITOP PSU3400 | ||
Width 120mm | ||
Standards/Approvals UL, cULus | ||
Length 42mm | ||
Depth 125mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature 70°C | ||
Efficiency 93.5% | ||
Siemens DC-DC Converter, 93.5% Efficiency, IP20 Rating - SITOP PSU3400 Series - 6EP3234-0TA00-0AY0
Pick this DC-DC converter from Siemens to make power conversion tasks a piece of cake. It takes a voltage from 28 to 54V DC and steps it down precisely to achieve a steady output of 24V DC. This makes it a practical choice for powering sensitive battery-boosted devices in commercial and domestic applications. As the converter lets you adjust the output voltage, you can tweak the value between 24 and 28V DC to suit the job at hand. The unit's short-circuit protection ensures it handles common current faults, while an automatic restart function helps keep system downtime to a minimum.
Features & Benefits
• 93.5% efficiency means the unit produces little waste heat and can rely on natural convection to stay cool
• IP20 rating indicates there's no shock risk if you touch it with your fingers
• Green and yellow LEDs provide clear status indication
• Snaps onto a standard 35mm DIN rail, for easy mounting with no need for tools
What's the advantage of this converter's screw terminals?
Screw terminals make it easy to achieve a robust electrical connection that stands up to vibration, without the risk of overtightening.
