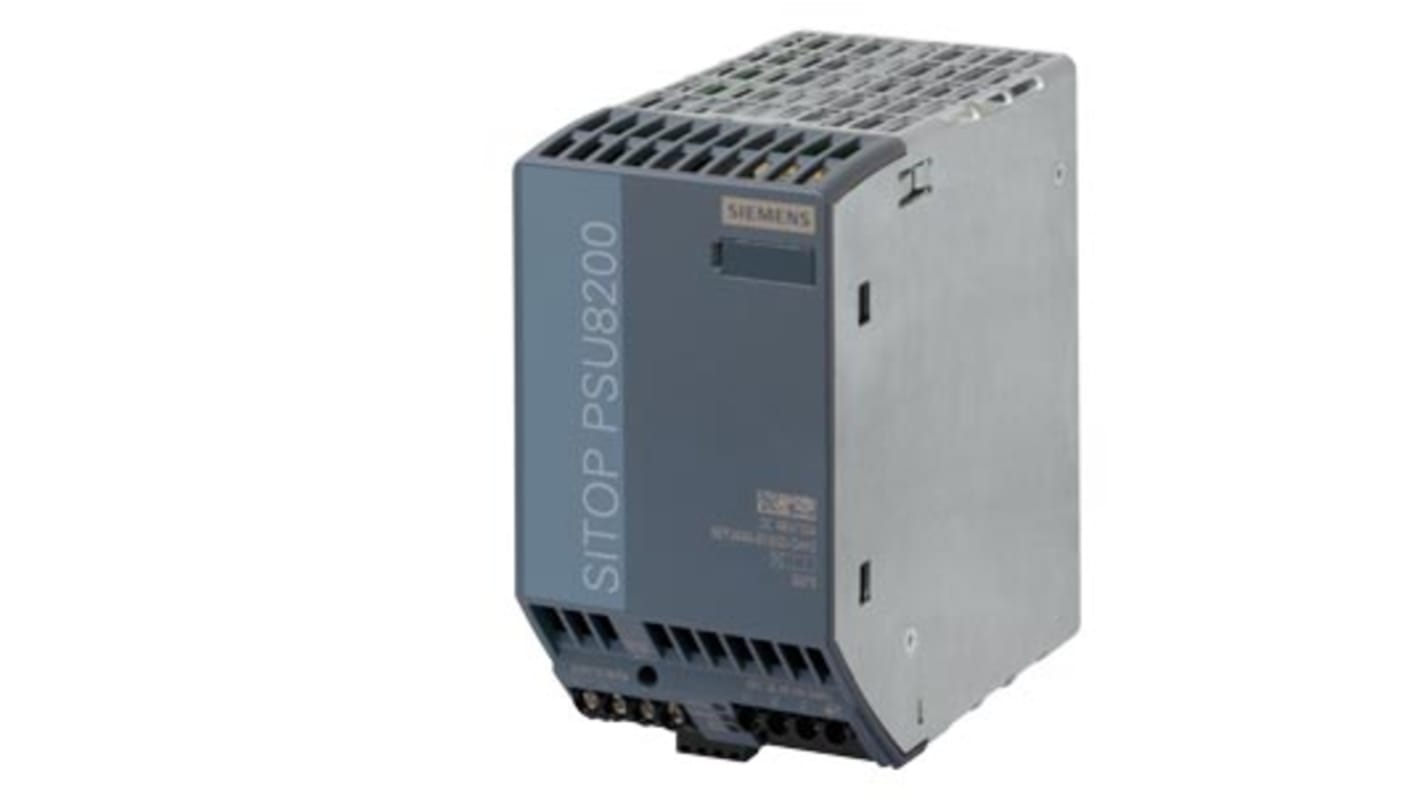

Siemens SITop Stabilised DIN Rail Power Supply 500V ac AC Input 48V dc, 10 A Output DC 31 W
- RS Stock No.:
- 243-0154
- Mfr. Part No.:
- 6EP3446-8SB00-0AY0
- Brand:
- Siemens
Subtotal (1 unit)*
£335.32
(exc. VAT)
£402.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £335.32 |
*price indicative
- RS Stock No.:
- 243-0154
- Mfr. Part No.:
- 6EP3446-8SB00-0AY0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | SITop | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Sub Type | Stabilised | |
| Electrical Phase | 3 | |
| Input Voltage Type | AC | |
| Number of Outputs | 1 | |
| Power | 31W | |
| Output Current | 10A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Remote signal DC-OK | Yes | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL, CE, CSA, EAC | |
| Width | 70mm | |
| Depth | 125mm | |
| Height | 125mm | |
| Maximum Input Voltage | 500V ac | |
| Minimum Input Voltage | 400V ac | |
| Efficiency | 94% | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Series SITop | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 48V dc | ||
Sub Type Stabilised | ||
Electrical Phase 3 | ||
Input Voltage Type AC | ||
Number of Outputs 1 | ||
Power 31W | ||
Output Current 10A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Remote signal DC-OK Yes | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals UL, CE, CSA, EAC | ||
Width 70mm | ||
Depth 125mm | ||
Height 125mm | ||
Maximum Input Voltage 500V ac | ||
Minimum Input Voltage 400V ac | ||
Efficiency 94% | ||
- COO (Country of Origin):
- RO
The Siemens 3 Phase DC SITOP PSU8200 48 V and 10 A stabilized power supply input of 400 V to 500 V 3 AC and output of 48 V DC and 10 A. The feeder Requirements are 3-pole connected miniature circuit breaker 6 to 16 A characteristic C or circuit breaker 3RV2011-1DA10 setting 3 A or 3RV2711-1DD10.
Controlled, isolated DC voltage
Green LED for 48 V OK
No overshoot of Vout soft start
Switchable characteristic
Overload capability 150 % Iout rated up to 5 s/min
