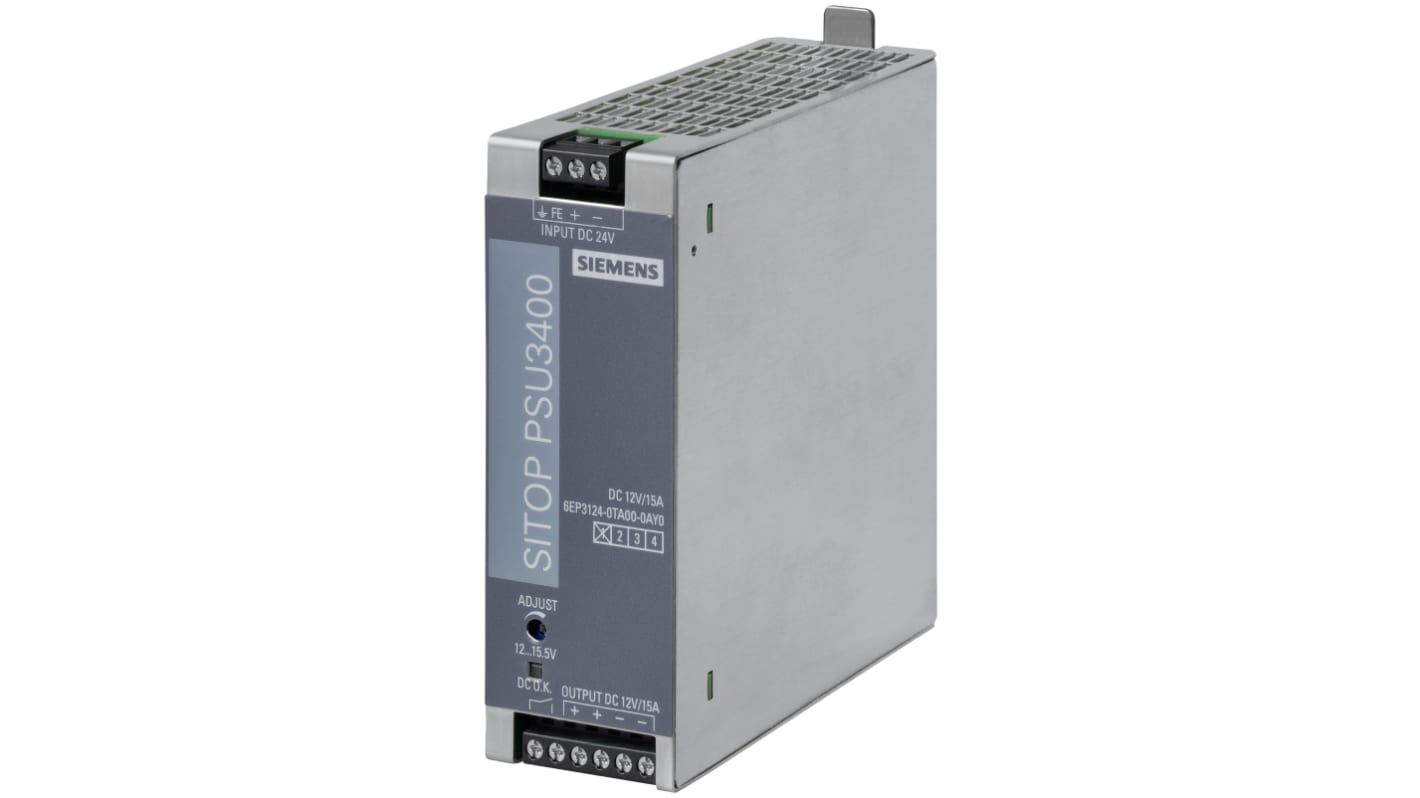

Siemens SITOP PSU3400 DC/DC Converter, 12V dc/ 15 A, 32V dc Input, 24V dc Input, DIN Rail 200 W, 70 °C Max Temp 70 °C
- RS Stock No.:
- 184-3975
- Distrelec Article No.:
- 301-58-294
- Mfr. Part No.:
- 6EP3124-0TA00-0AY0
- Brand:
- Siemens
Subtotal (1 unit)*
£252.50
(exc. VAT)
£303.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £252.50 |
*price indicative
- RS Stock No.:
- 184-3975
- Distrelec Article No.:
- 301-58-294
- Mfr. Part No.:
- 6EP3124-0TA00-0AY0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 32V dc | |
| Minimum Input Voltage | 24V dc | |
| Output Current 1 | 15A | |
| Mount Type | DIN Rail | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 12 to 15.5 V | |
| Ripple and Noise | 150mV | |
| Maximum Output Power | 200W | |
| Weight | 0.6kg | |
| Length | 42mm | |
| Standards/Approvals | cULus, UL | |
| Depth | 125mm | |
| Series | SITOP PSU3400 | |
| Width | 120mm | |
| Minimum Operating Temperature | 70°C | |
| Maximum Operating Temperature | 70°C | |
| Efficiency | 91% | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 32V dc | ||
Minimum Input Voltage 24V dc | ||
Output Current 1 15A | ||
Mount Type DIN Rail | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 12 to 15.5 V | ||
Ripple and Noise 150mV | ||
Maximum Output Power 200W | ||
Weight 0.6kg | ||
Length 42mm | ||
Standards/Approvals cULus, UL | ||
Depth 125mm | ||
Series SITOP PSU3400 | ||
Width 120mm | ||
Minimum Operating Temperature 70°C | ||
Maximum Operating Temperature 70°C | ||
Efficiency 91% | ||
SITOP PSU3400 12 V/15 A Stabilized power supplies Input: DC 24 V (18...32 V) Output: DC 12 V/15 A
