Recom RPM-2.0 DC/DC Converter, 5V dc/ 2 A, 12V dc Input, 3V, Surface, 105 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 reel of 500 units)*

£2,098.34

(exc. VAT)

£2,518.01

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)
Per Reel
Per unit*
1 - 4£2,098.34£4.197
5 - 9£2,035.39£4.071
10 - 24£1,972.44£3.945
25 - 49£1,909.49£3.819
50 +£1,846.54£3.693

*price indicative

RS Stock No.:
183-4335
Mfr. Part No.:
RPM5.0-2.0-CT
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

3V

Maximum Input Voltage

12V dc

Mount Type

Surface

MTBF

2800000h

Number of Outputs

1

Output Voltage Adjustment Range

0.9 to 6.0 V dc

Ripple and Noise

60mV Pk-Pk

Output Current 1

2A

Maximum Output Power

5W

Width

12.19mm

Standards/Approvals

EN 62368-1

Weight

1.1g

Length

12.19mm

Depth

3.75mm

Series

RPM-2.0

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

Efficiency

98%

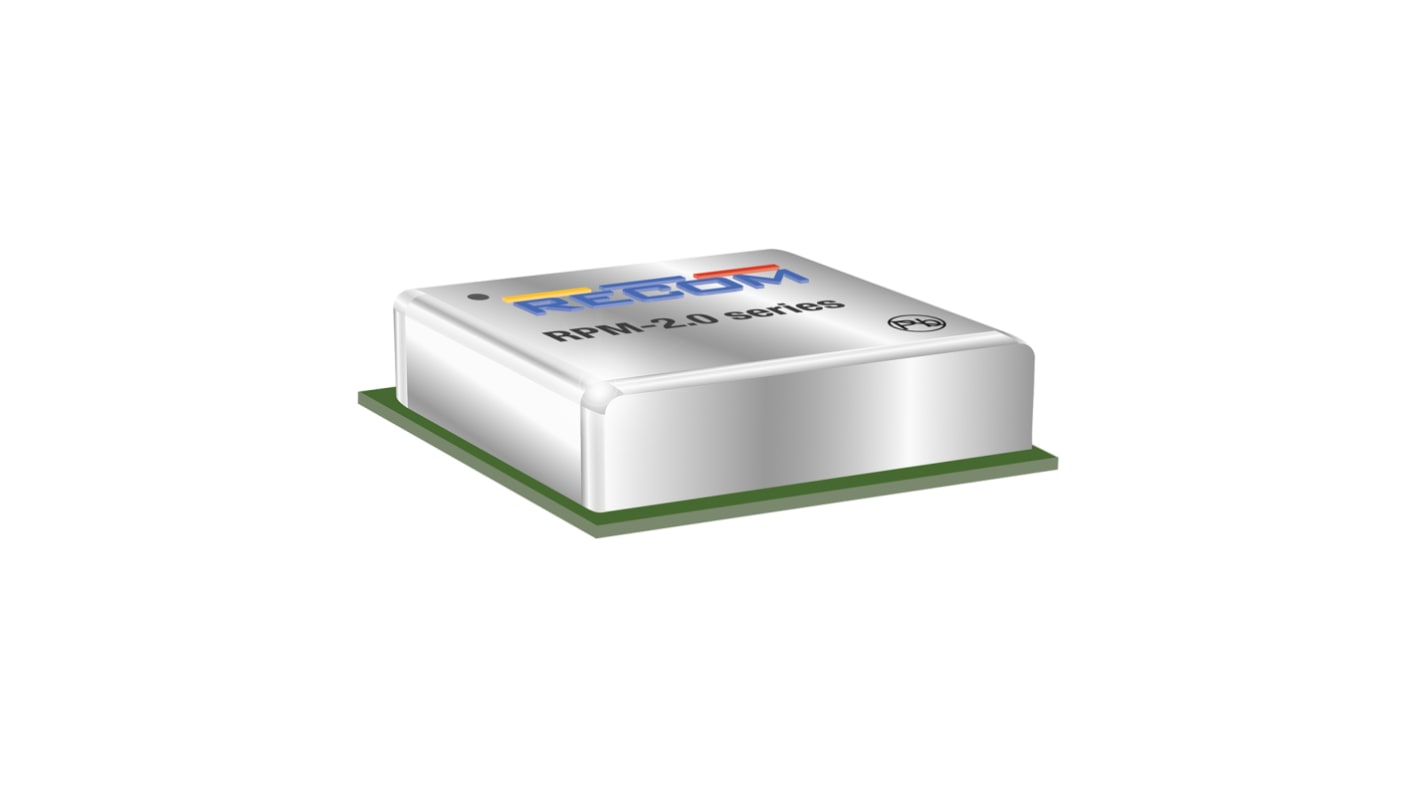

The RPM-2.0 series is a 2A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 98%, the device can operate at full load in ambient temperatures as high as +105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

High power density (L*W*H = 12.19*12.19*3.75)

Wide operating temperature -40°C to +105°C at full load

Efficiency up to 98%, no need for heatsinks

6-sided shielding

Thermally and EMI enhanced 25 pad LGA package

Compact DOSA-compatible footprint

Low profile
