TDK-Lambda PXC-M10W DC/DC Converter, 18V dc, 75 V dc/, 75V dc Input, 18V Input 10 W, PCB, 77 °C Max Temp 77 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£545.35

(exc. VAT)

£654.42

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£545.35£54.535
5 - 9£528.98£52.898
10 - 24£512.63£51.263
25 - 49£496.26£49.626
50 +£479.91£47.991

*price indicative

RS Stock No.:
173-9159
Mfr. Part No.:
PXC-M10-48WD15
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

DC/DC Converter

Output Voltage 1

18, 75V dc

Minimum Input Voltage

18V

Maximum Input Voltage

75V dc

Mount Type

PCB

Number of Outputs

2

MTBF

644400h

Output Voltage Adjustment Range

±16.5 V dc

Ripple and Noise

40mV

Isolation Voltage

5kV ac

Maximum Output Power

10W

Package Type

DIP

Depth

10.2mm

Width

20.3mm

Series

PXC-M10W

Length

31.8mm

Weight

14g

Standards/Approvals

IEC 60950-1, UL 60950-1, EN 60950-1

Maximum Operating Temperature

77°C

Minimum Operating Temperature

77°C

Efficiency

88%

COO (Country of Origin):
TW

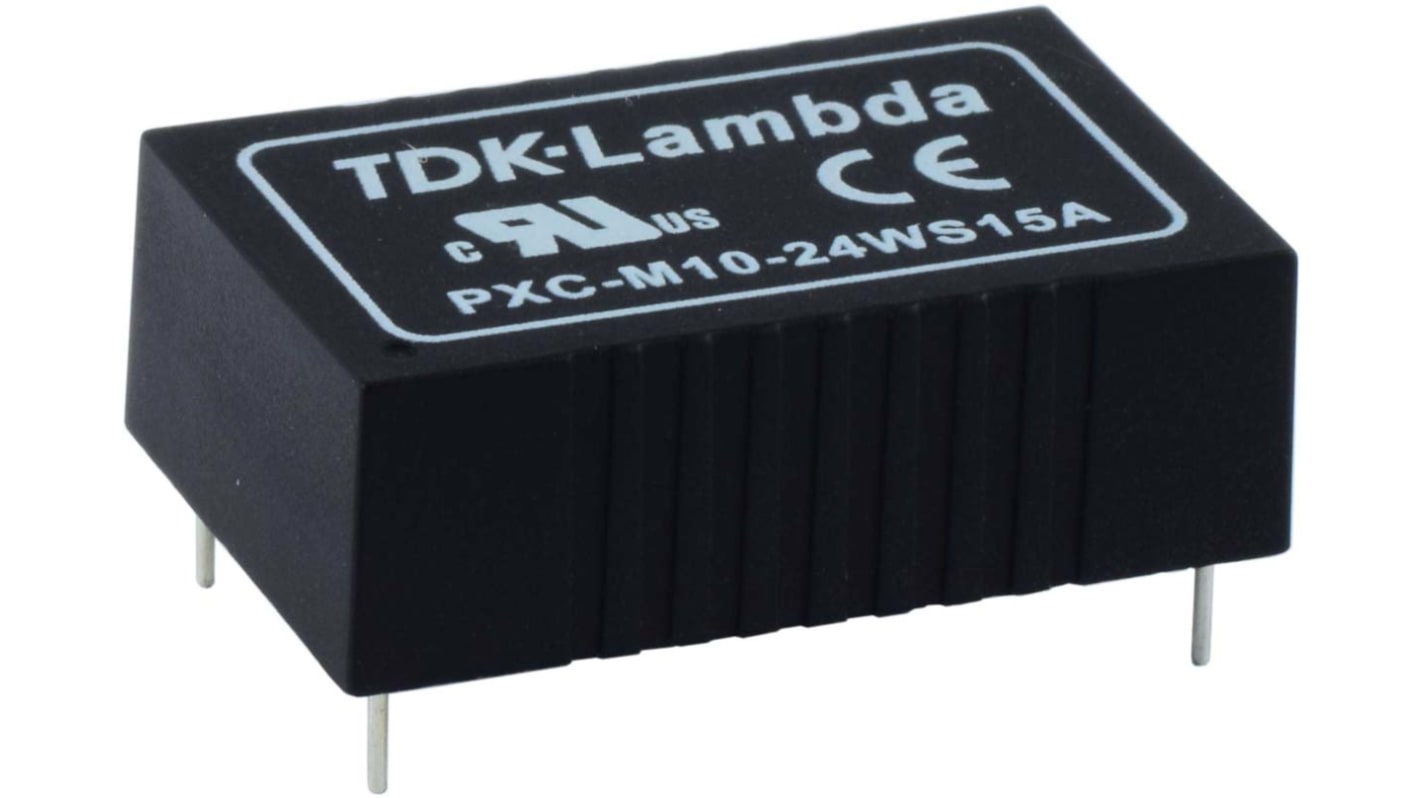

TDK-Lambda Isolated DC-DC Converter, PXC-M10 Series


Reliable & robust range of medically certified low-power DC-DC converters from Lambda-TDK. The PXC-M series offers a compact & sturdy conversion solution. Supplied in the industry-standard DIP-24 PCB mounting footprint, and supporting up to 5000 V ac insulated input to output. Outputs can be both single & dual output depending on the application requirement.

Suitable for a wide variety of applications within the medical & communications industries.

PCB mounting

Convection cooling technology, meaning the converter does not require a fan for heat dissipation

Long lifespan with a mean time before failure (MTBF) rating of 644,400 hours

Comes with industry standard safety features, such as over voltage, over temperature & short circuit protection

TDK-Lambda Isolated DC/DC Converters, PXC-M Series


Note

We offer a comprehensive range of 3 W, 6 W & 10 W options to ensure your application is covered.

Standards

MIL-STD-810F, EN55011, EN55022, EN61000 -4-2/3/4/5/6, IEC60601-1, ANSI/AAMI ES60601-1, EN60601-1 & CE approvals.
