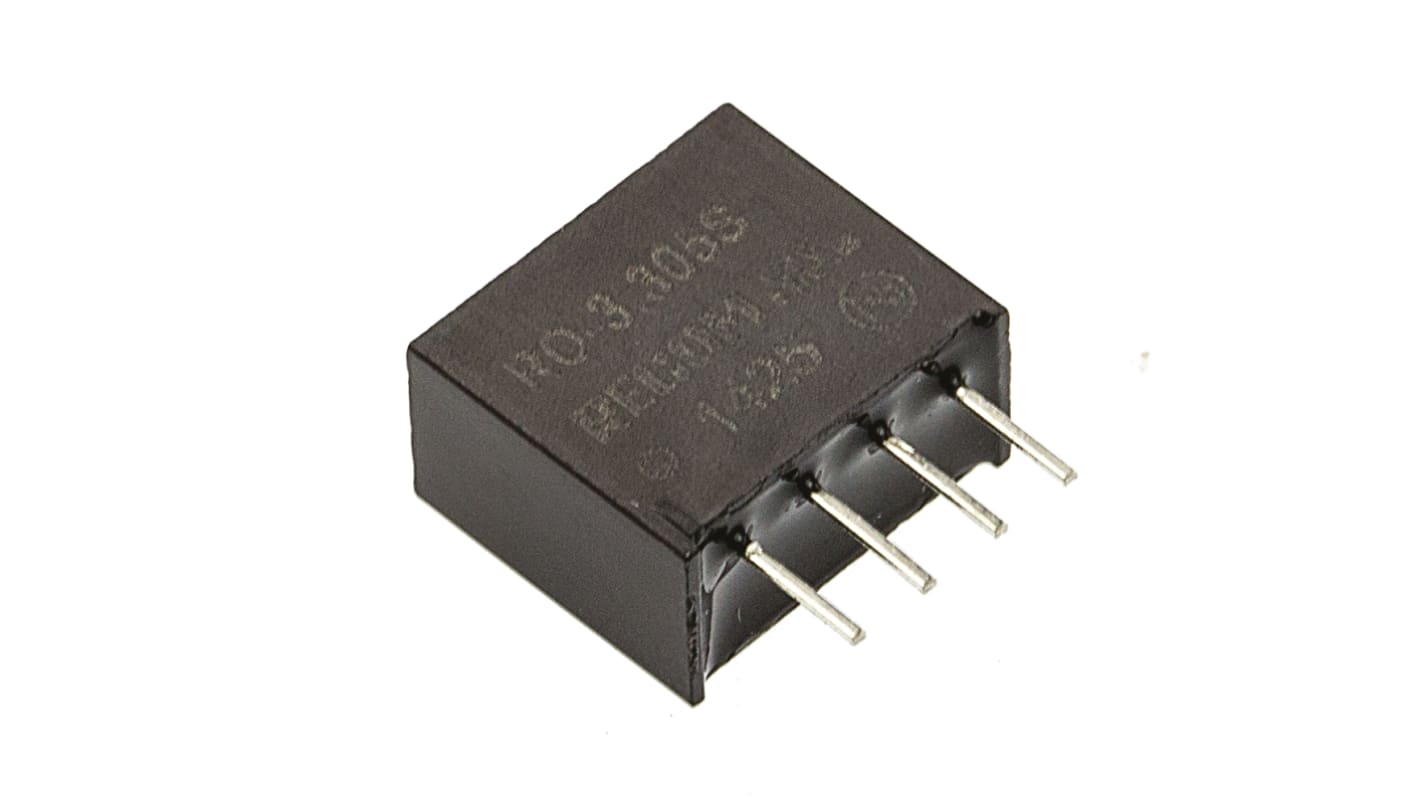

Recom RO DC/DC Converter, 5V dc/ 200 mA, 3.3V dc Input, 0V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 42 units)*

£196.77

(exc. VAT)

£236.12

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£196.77£4.685
5 - 9£191.31£4.555
10 - 24£186.14£4.432
25 - 49£181.24£4.315
50 +£176.59£4.205

*price indicative

RS Stock No.:
166-9011
Mfr. Part No.:
RO-3.305S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Minimum Input Voltage

0V

Maximum Input Voltage

3.3V dc

Output Current 1

200mA

Output Current 2

200mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

200000h

Output Voltage Adjustment Range

0/3.3 V

Ripple and Noise

100mV Pk-Pk

Isolation Voltage

1kV dc

Number of Pins

6

Package Type

SIP

Maximum Output Power

1W

Width

10mm

Weight

1.4g

Series

RO

Length

11.5mm

Depth

10mm

Standards/Approvals

CSA, IEC, UL

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

80%

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series


Unregulated outputs

1kVdc isolation

Efficiency at full load up to 85%

Short circuit protection

Fully encapsulated UL94V-0 package

SIP4 industry standard pinout

Note

MTBF to MIL-HDBK 217F
Operating temperature is without derating.

Standards

EN-60950-1
