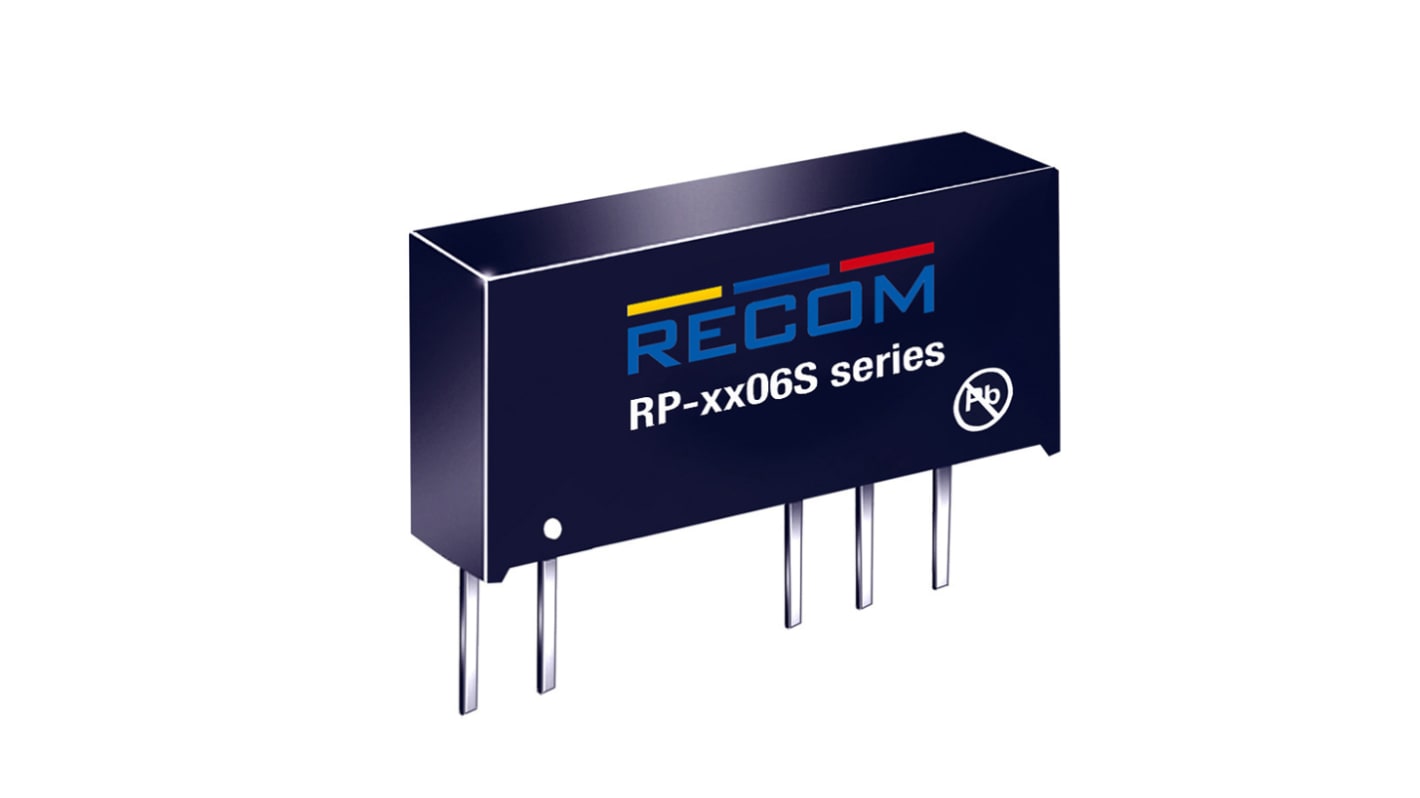

Recom RP DC-DC Converter, 6V dc/ 167mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min
- RS Stock No.:
- 165-4978
- Mfr. Part No.:
- RP-0506S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£274.75
(exc. VAT)
£329.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £274.75 | £10.99 |
| 5 - 9 | £266.51 | £10.66 |
| 10 - 24 | £258.27 | £10.331 |
| 25 - 49 | £250.02 | £10.001 |
| 50 + | £241.78 | £9.671 |
*price indicative
- RS Stock No.:
- 165-4978
- Mfr. Part No.:
- RP-0506S
- Brand:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 6V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 167mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP7 | |
| Isolation Voltage | 5.2kV dc | |
| Depth | 10.2mm | |
| Length | 19.65mm | |
| Width | 7.05mm | |
| Series | RP | |
| Load Regulation | ±15% | |
| Standards Met | cRUus, IEC/EN 60601-1, IEC/EN 60950-1, UL 60950-1 | |
| Efficiency | 81% | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 6V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 167mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP7 | ||
Isolation Voltage 5.2kV dc | ||
Depth 10.2mm | ||
Length 19.65mm | ||
Width 7.05mm | ||
Series RP | ||
Load Regulation ±15% | ||
Standards Met cRUus, IEC/EN 60601-1, IEC/EN 60950-1, UL 60950-1 | ||
Efficiency 81% | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Maximum Temperature +80°C | ||
