Recom RP24 DC/DC Converter, 6V dc/ 167 mA, 26.4V dc Input, 21.6V Input 1 W, Through Hole, 80 °C Max Temp -40 °C Min
- RS Stock No.:
- 165-4981
- Mfr. Part No.:
- RP-2406S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£315.40
(exc. VAT)
£378.48
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £315.40 | £12.616 |
| 5 - 9 | £305.94 | £12.238 |
| 10 - 24 | £296.48 | £11.859 |
| 25 - 49 | £287.02 | £11.481 |
| 50 + | £277.55 | £11.102 |
*price indicative
- RS Stock No.:
- 165-4981
- Mfr. Part No.:
- RP-2406S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 6V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 26.4V dc | |
| Minimum Input Voltage | 21.6V | |
| Output Current 1 | 167mA | |
| Mount Type | Through Hole | |
| MTBF | 10100000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -5 to 5 % | |
| Isolation Voltage | 5.2kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 1W | |
| Package Type | SIP-7 | |
| Length | 19.65mm | |
| Series | RP24 | |
| Width | 7.05mm | |
| Standards/Approvals | No | |
| Depth | 10.2mm | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 82% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 6V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 26.4V dc | ||
Minimum Input Voltage 21.6V | ||
Output Current 1 167mA | ||
Mount Type Through Hole | ||
MTBF 10100000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -5 to 5 % | ||
Isolation Voltage 5.2kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 1W | ||
Package Type SIP-7 | ||
Length 19.65mm | ||
Series RP24 | ||
Width 7.05mm | ||
Standards/Approvals No | ||
Depth 10.2mm | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 82% | ||
- COO (Country of Origin):
- TW

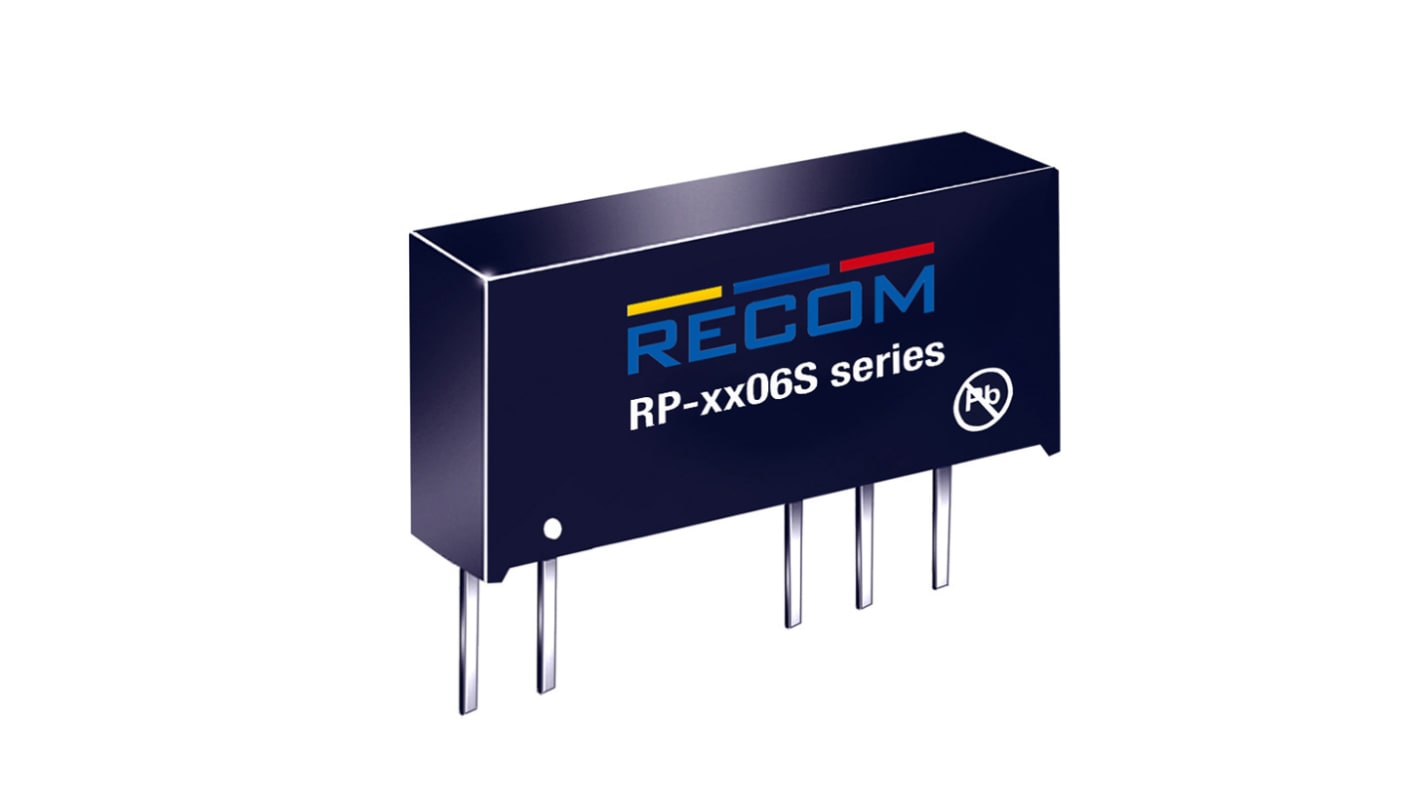

High slew rate GaN transistor drivers require an isolated 6V supply with high isolation voltage and low isolation capacitance. The RP-xx06S series have been specially designed to fulfill this demanding requirement with 5200VDC isolation and <10pF isolation capacitance. The internal transformer uses a pot-core to physically separate the input and output windings, yet the converter still fits into an industry standard case. Input voltage options of 5, 12, 15 or 24V are available.
6V Output For GaN Driver Applications
Pot-Core Transformer With Separated Windings
High 5.2kVDC Isolation In Compact Size
Low Isolation Capacitance (10pF max.)
