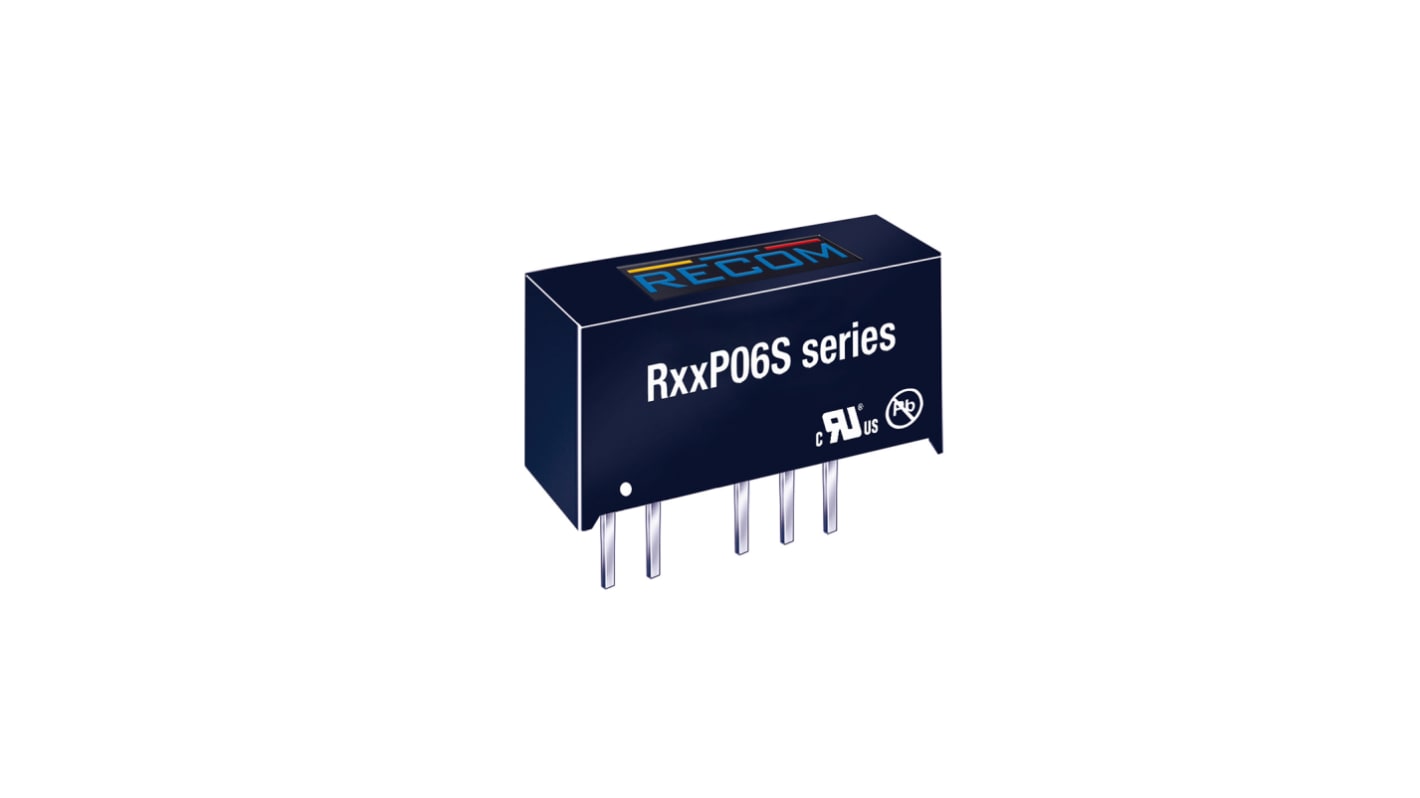

Recom R05P DC-DC Converter, 6V dc/ 167mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
- RS Stock No.:
- 165-5070
- Mfr. Part No.:
- R05P06S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£11.70
(exc. VAT)
£14.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.70 |
| 5 - 9 | £11.35 |
| 10 - 24 | £11.01 |
| 25 - 49 | £10.65 |
| 50 + | £10.30 |
*price indicative
- RS Stock No.:
- 165-5070
- Mfr. Part No.:
- R05P06S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 6V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 167mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP7 | |
| Isolation Voltage | 6.4kV dc | |
| Length | 19.5mm | |
| Depth | 12.5mm | |
| Width | 9.8mm | |
| Series | R05P | |
| Load Regulation | ±15% | |
| Standards Met | CAN/CSA-C22.2 No.62368-1-14, CB Report, cRUus, IEC/EN 60950-1, IEC/EN 62368-1, IECEE CB SCHEME, UL 62368-1 | |
| Maximum Temperature | +90°C | |
| Efficiency | 76% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 6V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 167mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP7 | ||
Isolation Voltage 6.4kV dc | ||
Length 19.5mm | ||
Depth 12.5mm | ||
Width 9.8mm | ||
Series R05P | ||
Load Regulation ±15% | ||
Standards Met CAN/CSA-C22.2 No.62368-1-14, CB Report, cRUus, IEC/EN 60950-1, IEC/EN 62368-1, IECEE CB SCHEME, UL 62368-1 | ||
Maximum Temperature +90°C | ||
Efficiency 76% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
High slew rate GaN transistor drivers require an isolated 6V supply with high isolation voltage and low isolation capacitance. The RxxP06S series have been specially designed to fulfill this demanding requirement with 6400VDC/sec isolation and <10pF isolation capacitance. The internal transformer uses a pot-core to physically separate the input and output windings, yet the converter still fits into an industry standard case. Input voltage options of 5, 12, 15 or 24V are available.
6V Output for GaN driver Applications
Pot-Core Transformer with separated windings
High 6.4kVDC/sec Isolation in compact size
Low isolation capacitance (10pF max.)
Pot-Core Transformer with separated windings
High 6.4kVDC/sec Isolation in compact size
Low isolation capacitance (10pF max.)
