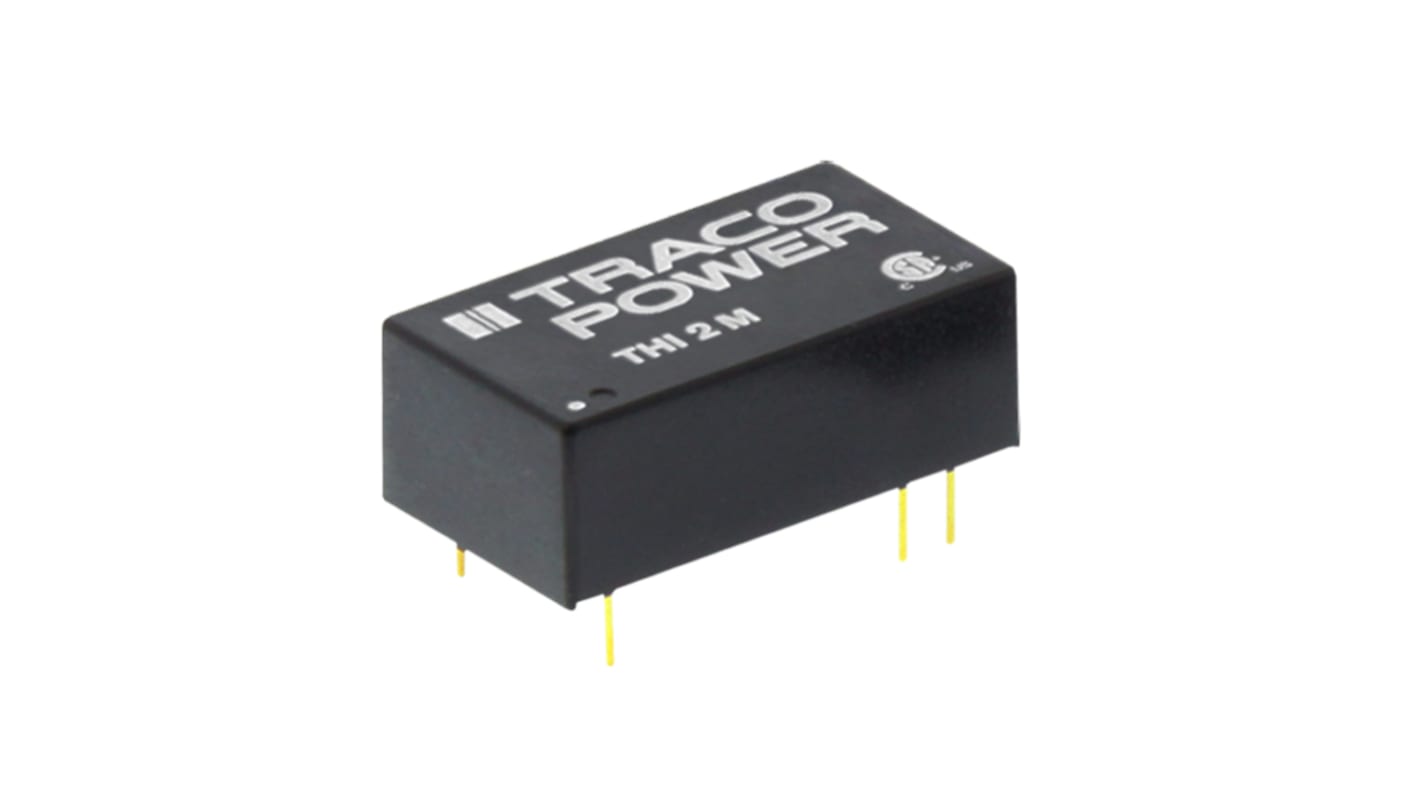

TRACOPOWER THI 2M DC/DC Converter, 12V, -12 V/ 83 mA, 5V dc Input, 0V Input 2 W, PCB, 71 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£208.50

(exc. VAT)

£250.20

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£208.50£20.85
5 - 9£202.26£20.226
10 - 24£196.00£19.60
25 - 49£187.67£18.767
50 +£179.33£17.933

*price indicative

RS Stock No.:
161-9850
Mfr. Part No.:
THI 2-0522M
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12, -12V

Product Type

DC/DC Converter

Minimum Input Voltage

0V

Maximum Input Voltage

5V dc

Output Current 1

83mA

Output Current 2

83mA

Mount Type

PCB

Input Ratio

2:1

MTBF

2000000h

Number of Outputs

2

Output Voltage Adjustment Range

0/5 V

Isolation Voltage

4kV dc

Number of Pins

6

Package Type

DIP

Maximum Output Power

2W

Series

THI 2M

Length

23.8mm

Standards/Approvals

RoHS

Depth

8.6mm

Minimum Operating Temperature

-40°C

Efficiency

72%

Maximum Operating Temperature

71°C

Traco 2W DIP Single/Dual Output Unregulated Isolated DC-DC Converter - THI-2M Series


Industrial & Medical safety approvals

High isolation test voltage, 6kV peak

Reinforced insulation for working voltages up to 300Vac

Built-in pi-filter

Short circuit protection

UL94V-0 package material

16-pin DIP with industry standard pin-out

Note

Derates 2.5% per °C above 60°C.
MTBF to MIL-HDBK-217F (25°C).

Approvals

CB, CSA

Standards

EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1
