TRACOPOWER TEN 4 DC-DC Converter, 3.3V dc/ 900mA Output, 9 → 36 V dc Input, 4W, Through Hole, +75°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£375.49

(exc. VAT)

£450.59

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£375.49£37.549
5 - 9£364.22£36.422
10 - 24£352.95£35.295
25 - 49£337.94£33.794
50 +£322.92£32.292

*price indicative

RS Stock No.:
161-6416
Mfr. Part No.:
TEN 4-2410
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

3.3V dc

Input Voltage Range

9 → 36 V dc

Power Rating

4W

Input Voltage Nominal

24 V dc

Output Current

900mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

DIP 24

Isolation Voltage

1.5kV dc

Width

20.3mm

Depth

10mm

Length

31.8mm

Series

TEN 4

Load Regulation

±1%

Maximum Temperature

+75°C

Efficiency

77%

Minimum Temperature

-40°C

COO (Country of Origin):
TW

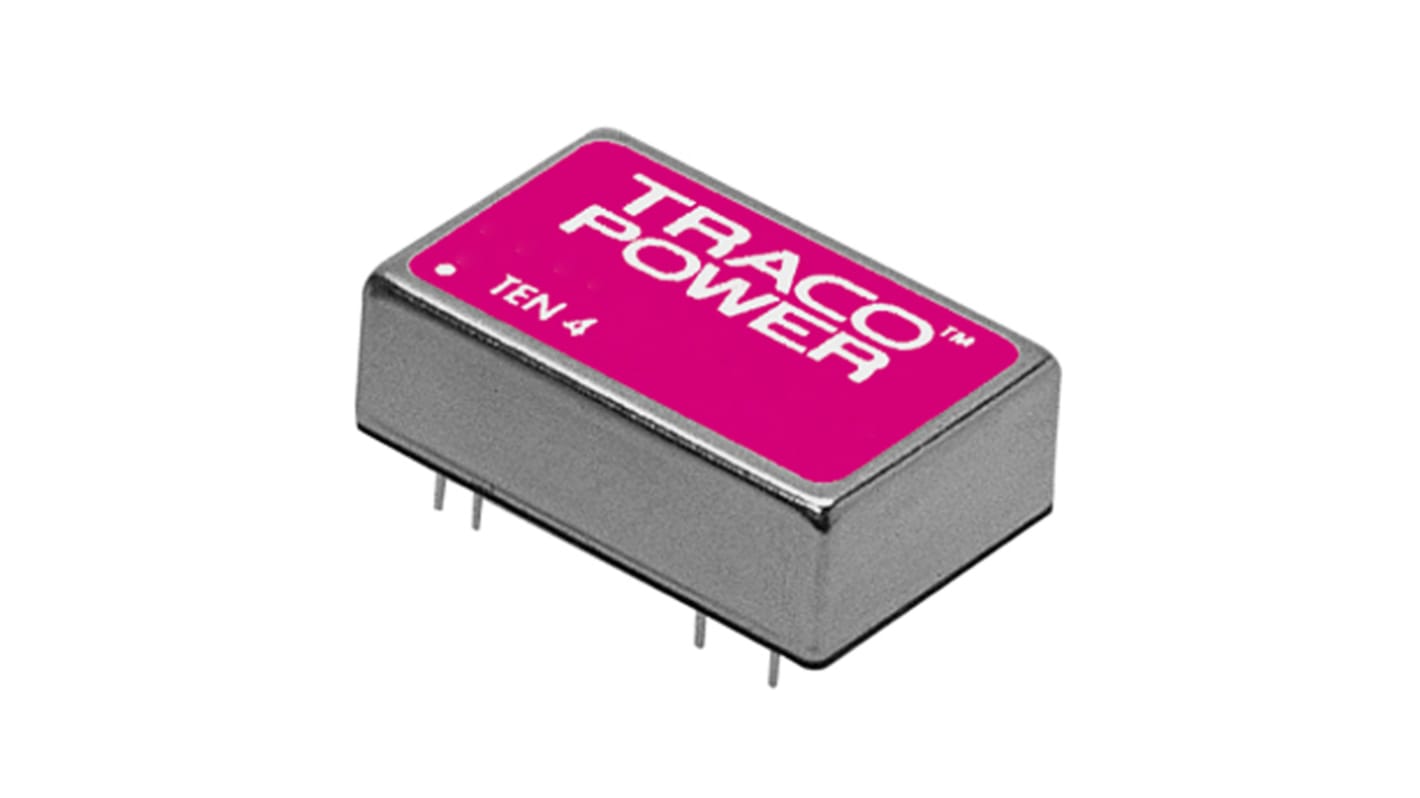

Traco Power TEN 4 DC-DC Converter, 24V to 3.3V, 4-Watt - TEN 4-2410


This compact and efficient Traco Power DC-DC converter is designed to provide a reliable power solution for a wide range of applications. With an ultra-wide input voltage range of 9 to 36V DC, this isolated converter offers high efficiency up to 77%. Its compact design and high-quality construction make it ideal for industrial-grade use.

Features & Benefits


• Ultra-wide 4:1 input range from 9 to 36V DC, ensuring compatibility with various power sources
• High efficiency up to 77% for energy-saving operation
• Isolated design with 1.5kV DC isolation voltage for added safety
• Full SMD design for enhanced reliability and performance
• Indefinite short circuit protection and reverse voltage protection for increased durability

Applications


• Ideal for telecommunication and data communication systems
• Suitable for mobile battery-powered equipment
• reliable for industrial process control systems with multiple input voltage requirements

Can it handle a wide range of input voltages?


Yes, the Traco Power DC-DC converter accepts input voltages ranging from 9V to 36V DC.

Will it provide stable output current?


The converter delivers a reliable output current of 900mA at 3.3V DC.

Is it suitable for industrial applications?


Yes, this converter is designed for industrial-grade use in harsh environments.

Can it be mounted through a hole?


Yes, the Traco Power converter is compatible with through-hole mounting.

Approvals

EN60950; IEC950; UL1950
