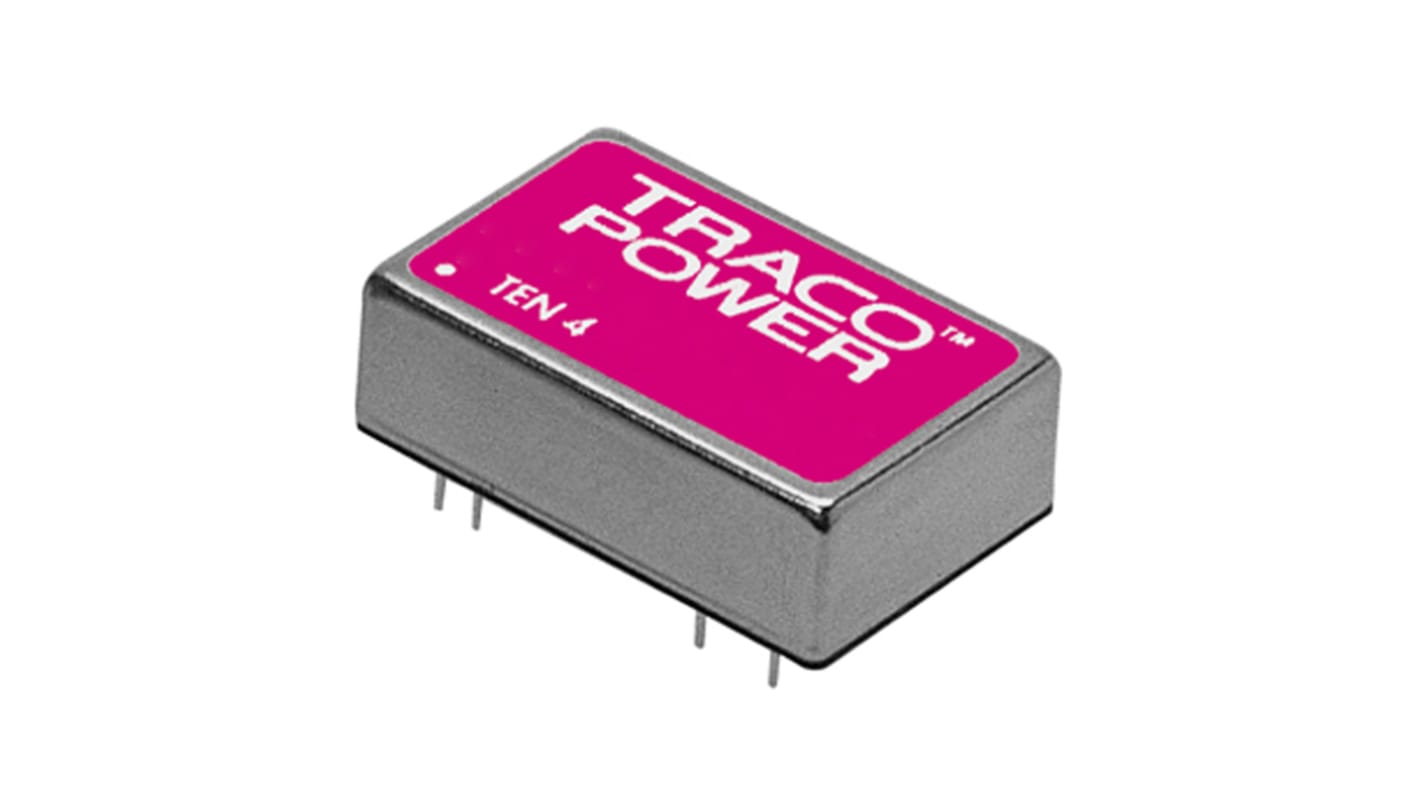

TRACOPOWER TEN 4 DC/DC Converter, 12V dc/ 330 mA, 36V dc Input, 9V Input 4 W, Through Hole, 75 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£379.24

(exc. VAT)

£455.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£379.24£37.924
5 - 9£367.86£36.786
10 - 24£356.48£35.648
25 - 49£341.32£34.132
50 +£326.15£32.615

*price indicative

RS Stock No.:
161-9752
Mfr. Part No.:
TEN 4-2412
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

9V

Output Current 1

330mA

Mount Type

Through Hole

Input Ratio

4:1

Number of Outputs

1

MTBF

1000000h

Isolation Voltage

1.5kV dc

Number of Pins

24

Maximum Output Power

4W

Package Type

DIP

Length

31.8mm

Depth

10mm

Series

TEN 4

Width

20.3mm

Standards/Approvals

No

Maximum Operating Temperature

75°C

Efficiency

83%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

Traco 2.97 to 43W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 4 Series


The Traco Power TEN 4 series is a range of isolated, 4 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature up to +75°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 4 series comes with built-in EMI input filter and complies with EN 55022 and FCC, level A without external components. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring very wide operating voltage range.

Products not recommended for new designs please refer to the alternative at the bottom of the page

Ultra-wide 4:1 input range 9 – 36 Vdc or 18 – 75 Vdc

Full SMD design

High efficiency up to 85%

Indefinite short circuit protection

Reverse voltage protection

I/O isolation 1500 VDC

Input filter meets EN 55022, Class A and FCC, Level A

Shielded metal case with insulated baseplate

24-pin DIP with industry standard pinout

MTTF >1 Mio. h

Approvals

UL/cUL, UL File no.: E188913

Standards

UL 1950, IEC/EN 60950 Compliance up to 60 VDC input voltage (SELV limit)
