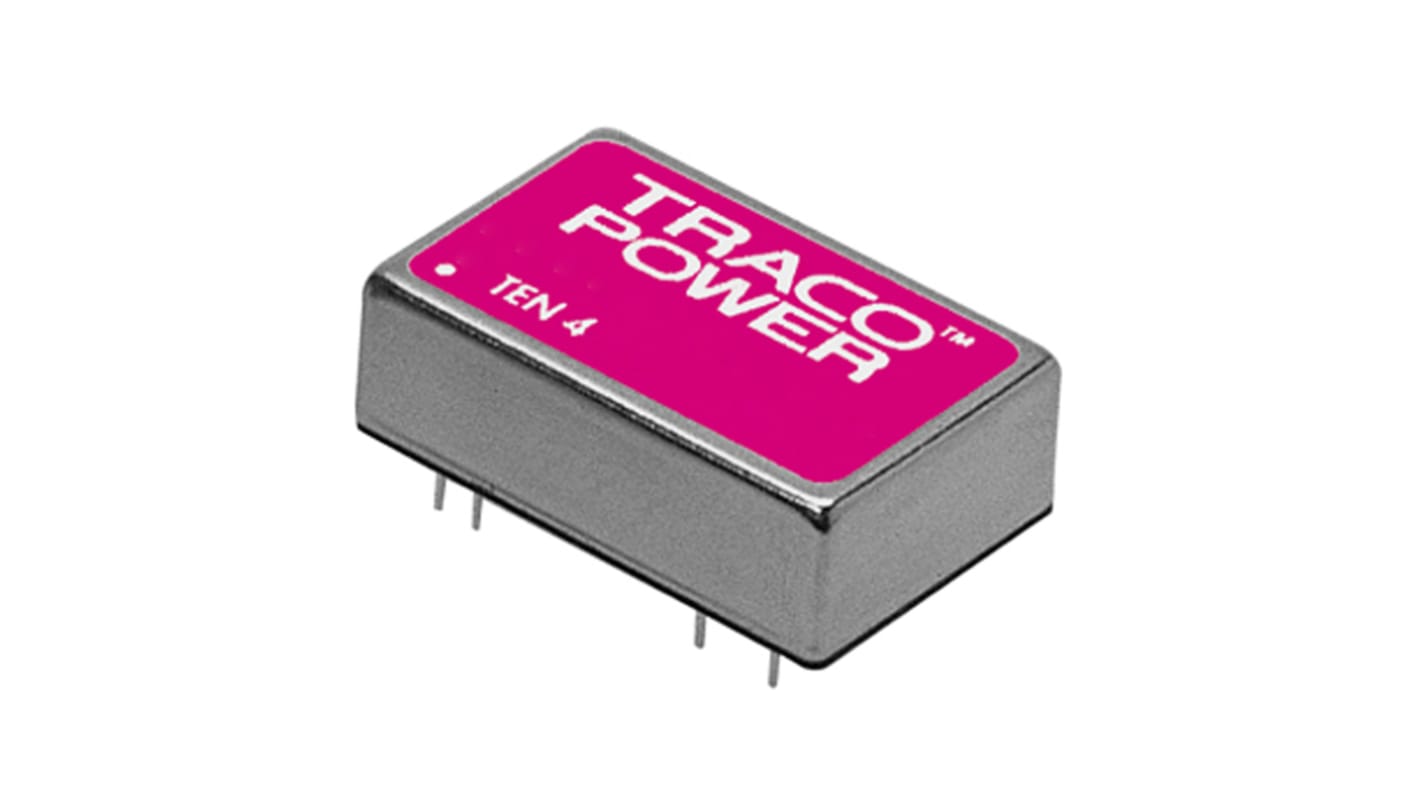

TRACOPOWER TEN 4 DC-DC Converter, ±12V dc/ ±165mA Output, 9 → 36 V dc Input, 4W, PCB Mount, +75°C Max Temp -40°C
- RS Stock No.:
- 166-5454
- Mfr. Part No.:
- TEN 4-2422
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£388.96
(exc. VAT)
£466.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 24 October 2025
- Plus 1 unit(s) shipping from 15 January 2026
- Plus 1 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £388.96 | £38.896 |
| 5 - 9 | £377.29 | £37.729 |
| 10 - 24 | £365.62 | £36.562 |
| 25 - 49 | £350.06 | £35.006 |
| 50 + | £334.51 | £33.451 |
*price indicative
- RS Stock No.:
- 166-5454
- Mfr. Part No.:
- TEN 4-2422
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 4W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±165mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 31.8mm | |
| Width | 20.3mm | |
| Depth | 10mm | |
| Series | TEN 4 | |
| Load Regulation | ±3% | |
| Maximum Temperature | +75°C | |
| Efficiency | 83% | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 60950-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 4W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±165mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Length 31.8mm | ||
Width 20.3mm | ||
Depth 10mm | ||
Series TEN 4 | ||
Load Regulation ±3% | ||
Maximum Temperature +75°C | ||
Efficiency 83% | ||
Minimum Temperature -40°C | ||
Standards Met EN 60950-1 | ||
- COO (Country of Origin):
- TW
TRACOPOWER TEN 4 Series DC-DC Converter, 9 to 36V DC Input Voltage Range, 4W - TEN 4-2422
This DC-DC converter is ideal for applications requiring a consistent and efficient power source. Designed for PCB mounting, this isolated power supply offers an output voltage of ±12V DC and operates effectively within an input voltage range of 9 to 36V DC. With a compact form factor and robust construction, this converter delivers reliable performance in a variety of environments.
Features & Benefits
• Dual output capability enables balanced power distribution
• High efficiency up to 83% reduces energy loss
• Compliant with EN 60950-1 to ensure safety standards
• High efficiency up to 83% reduces energy loss
• Compliant with EN 60950-1 to ensure safety standards
Applications
• Utilised in telecommunication systems
• Suitable for data communication equipment
• Suitable for data communication equipment
Can this device operate at high temperatures?
Yes, it operates efficiently up to +75°C.
Will it provide isolation between input and output?
Yes, it features 1.5kV isolation for safety.
