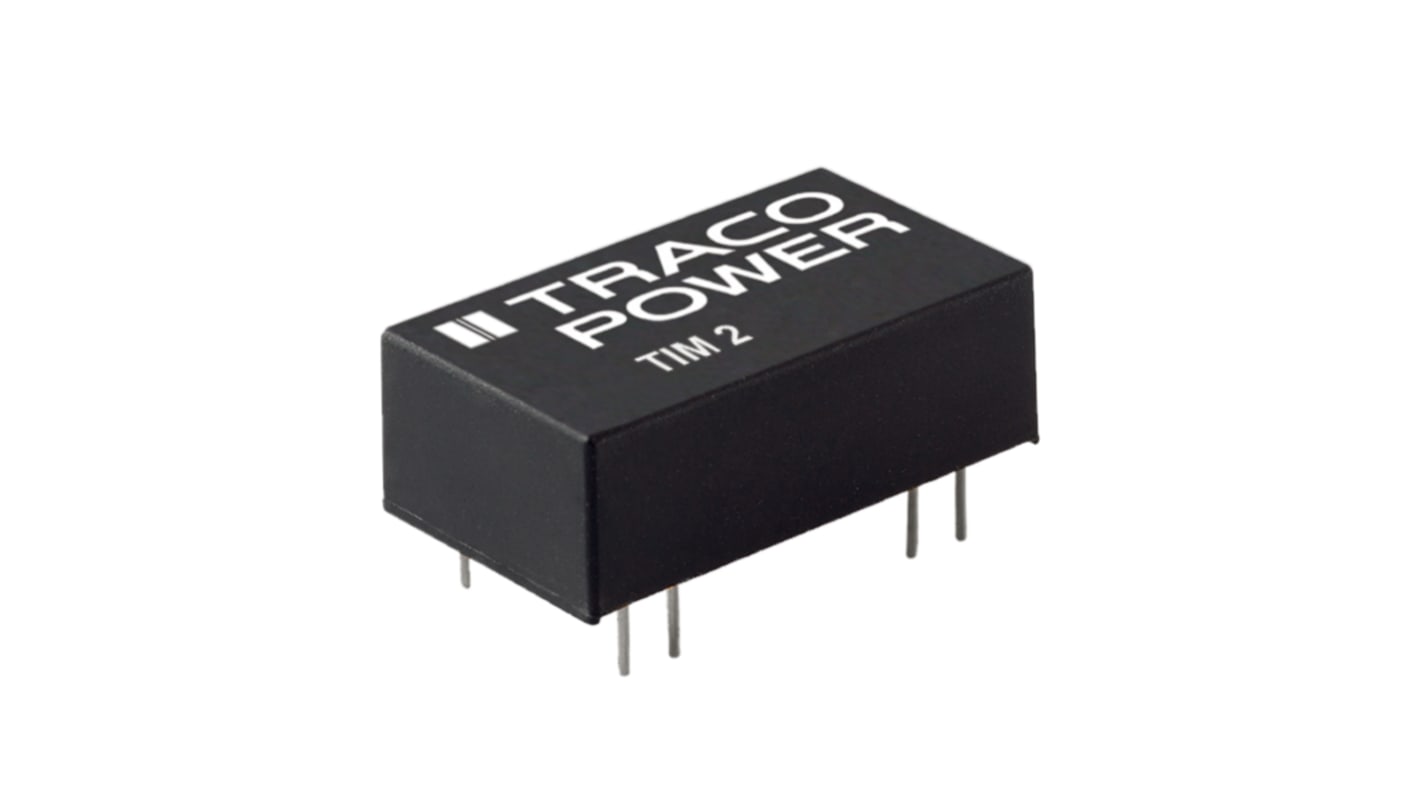

TRACOPOWER TIM 2 DC-DC Converter, ±12V dc/ ±83mA Output, 9 → 18 V dc Input, 2W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 152-6549
- Mfr. Part No.:
- TIM 2-1222
- Brand:
- TRACOPOWER
Available to back order for despatch 02/12/2024
Price 1 Tube of 10
£242.55
(exc. VAT)
£291.06
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £242.55 | £24.255 |
| 5 - 9 | £235.27 | £23.527 |
| 10 - 24 | £228.00 | £22.80 |
| 25 - 49 | £218.30 | £21.83 |
| 50 + | £208.59 | £20.859 |
*price indicative
- RS Stock No.:
- 152-6549
- Mfr. Part No.:
- TIM 2-1222
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Medical/Reinforced I/O-Isolation DC/DC Converters 2 - 30 Watt
2 Watt DC/DC converter in DIP-16 package
Certification to IEC/ES 60601-1 3rd edition for 2 x MOPP
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Risk management file acc. ISO 14971
Quality to ISO 13485, IPC-A-610 level 3
5-year product warranty
2:1 input voltage with extended low input range:4.5-12, 9-18, 18-36, 36-75
Output voltages:5.0, 12, 15, 24, ±12, ±15 VDC
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Low leakage current
Input filter to meet EN55022 class A
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Risk management file acc. ISO 14971
Quality to ISO 13485, IPC-A-610 level 3
5-year product warranty
2:1 input voltage with extended low input range:4.5-12, 9-18, 18-36, 36-75
Output voltages:5.0, 12, 15, 24, ±12, ±15 VDC
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Low leakage current
Input filter to meet EN55022 class A
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 12 V dc |
| Output Current | ±83mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP 16 |
| Isolation Voltage | 5kV ac |
| Width | 14.4mm |
| Depth | 10.2mm |
| Length | 24.3mm |
| Series | TIM 2 |
| Load Regulation | 0.01 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Standards Met | AAMI/ANSI ES 60601-1, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN 60601-1, MIL-STD-810F |
| Medical Approved | Yes |
| Efficiency | 82% |
