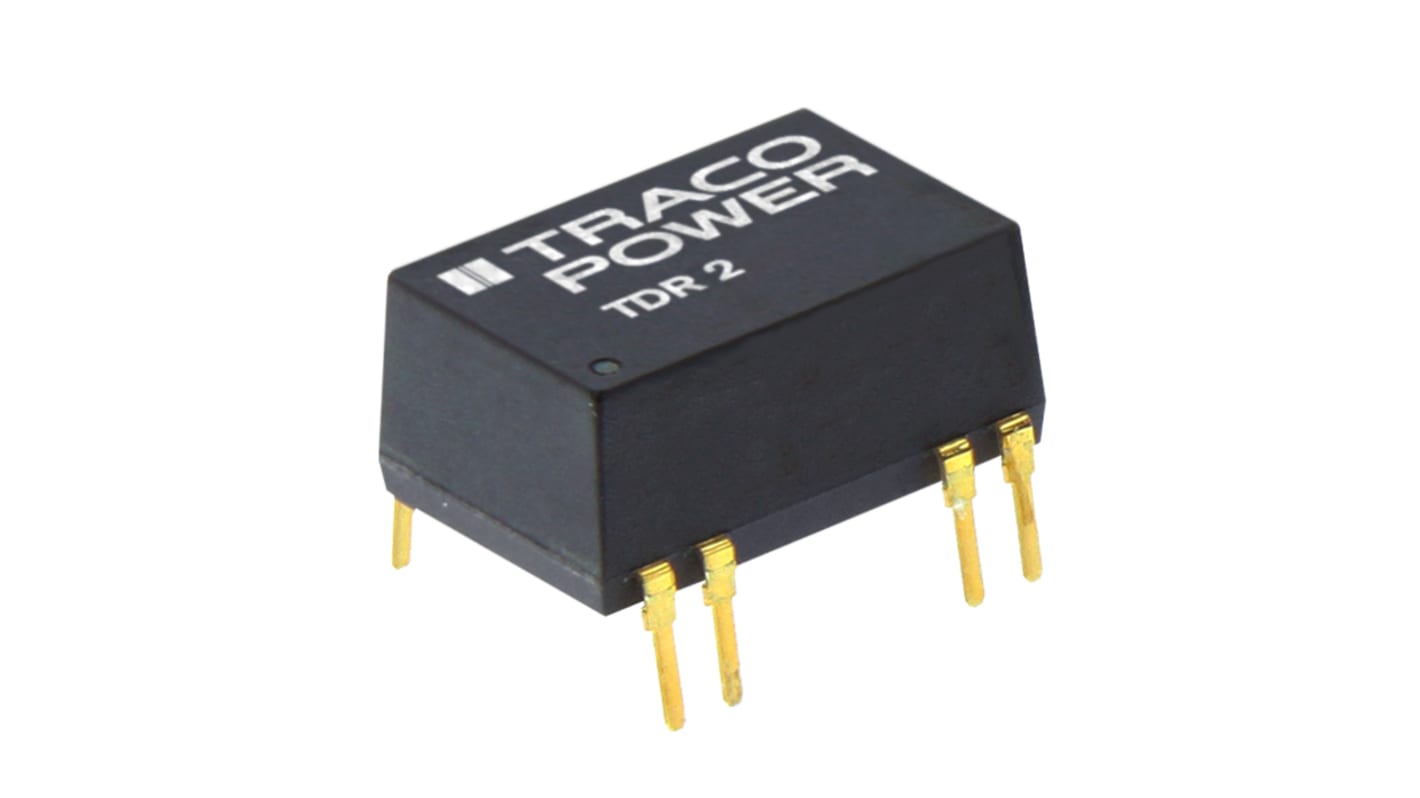

TRACOPOWER TDR 2 DC-DC Converter, ±12V dc/ ±83mA Output, 9 → 18 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-9820
- Mfr. Part No.:
- TDR 2-1222
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£228.67
(exc. VAT)
£274.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £228.67 | £22.867 |
| 5 - 9 | £221.81 | £22.181 |
| 10 - 24 | £214.95 | £21.495 |
| 25 - 49 | £205.80 | £20.58 |
| 50 + | £196.66 | £19.666 |
*price indicative
- RS Stock No.:
- 161-9820
- Mfr. Part No.:
- TDR 2-1222
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±83mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP | |
| Isolation Voltage | 1.5kV dc | |
| Length | 18.9mm | |
| Depth | 8.7mm | |
| Series | TDR 2 | |
| Load Regulation | ±1% | |
| Efficiency | 83% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±83mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP | ||
Isolation Voltage 1.5kV dc | ||
Length 18.9mm | ||
Depth 8.7mm | ||
Series TDR 2 | ||
Load Regulation ±1% | ||
Efficiency 83% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
