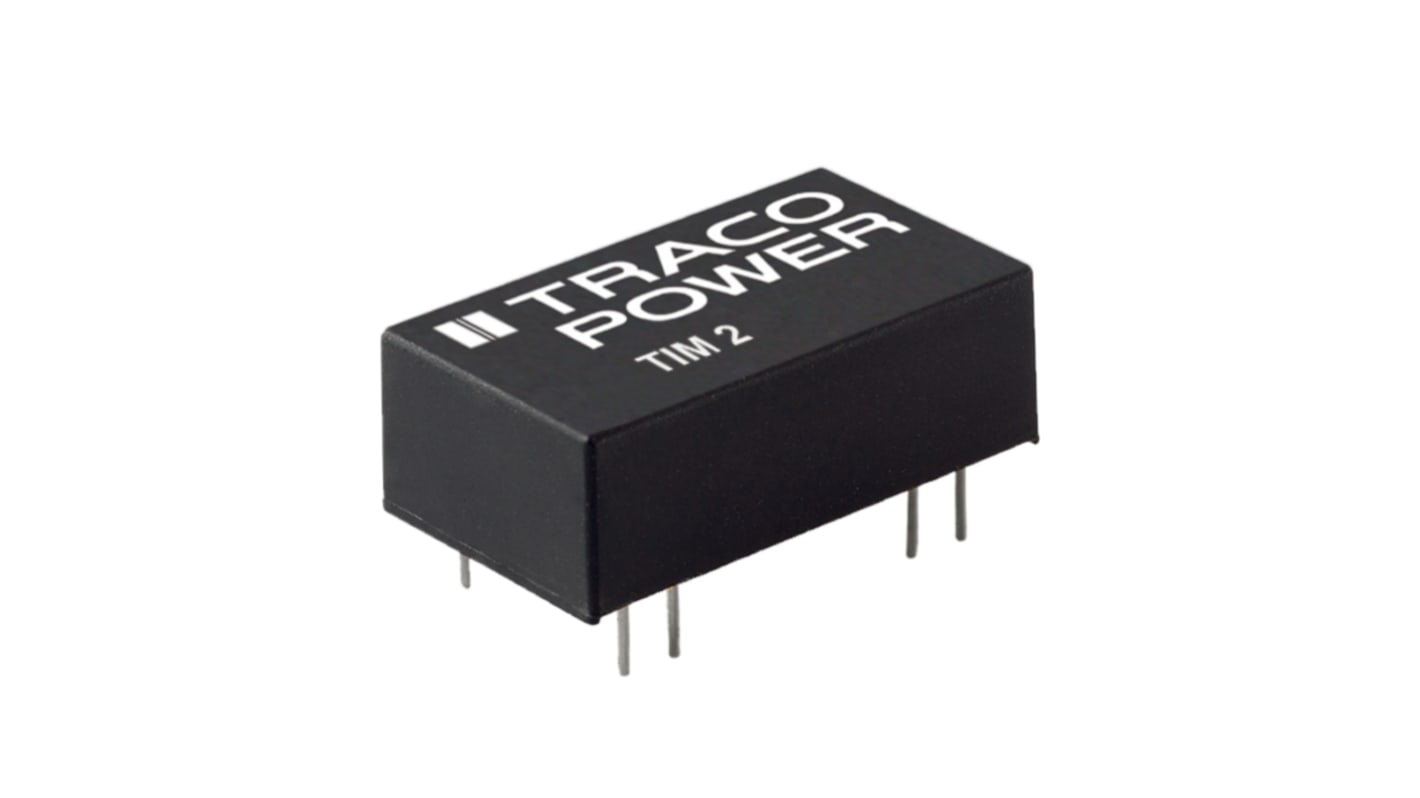

TRACOPOWER TIM 2 DC-DC Converter, ±12V dc/ ±83mA Output, 18 → 36 V dc Input, 2W, Through Hole, +105°C Max Temp

RS Stock No.:: 152-6555
Mfr. Part No.:: TIM 2-2422
Brand:: TRACOPOWER

TRACOPOWER TIM 2 DC-DC Converter, ±12V dc/ ±83mA Output, 18 → 36 V dc Input, 2W, Through Hole, +105°C Max Temp

Bulk discount available

Subtotal (1 tube of 10 units)**

£221.97

(exc. VAT)

£266.36

(inc. VAT)

Available to back order for despatch 03/05/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£221.97	£22.197
5 - 9	£215.31	£21.531
10 - 24	£208.65	£20.865
25 - 49	£199.77	£19.977
50 +	£190.89	£19.089

**price indicative

RS Stock No.:: 152-6555
Mfr. Part No.:: TIM 2-2422
Brand:: TRACOPOWER

Datasheet
Industrial Power Solutions Catalogue
Medical Power Solutions Catalogue
Selection Guide

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	18 → 36 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	±83mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 16
Isolation Voltage	5kV ac
Depth	10.2mm
Length	24.3mm
Width	14.4mm
Series	TIM 2
Load Regulation	0.01
Minimum Temperature	-40°C
Medical Approved	Yes
Efficiency	82%
Standards Met	AAMI/ANSI ES 60601-1, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN 60601-1, MIL-STD-810F
Maximum Temperature	+105°C

TRACOPOWER TIM 2 DC-DC Converter, ±12V dc/ ±83mA Output, 18 → 36 V dc Input, 2W, Through Hole, +105°C Max Temp
