TRACOPOWER THN 15WIR DC/DC Converter, 24V dc/ 315 mA, 36V dc Input, 9V Input 15 W, PCB, 90 °C Max Temp -40 °C Min Temp

RS Stock No.:: 135-1533
Mfr. Part No.:: THN 15-2425WIR
Brand:: TRACOPOWER

TRACOPOWER THN 15WIR DC/DC Converter, 24V dc/ 315 mA, 36V dc Input, 9V Input 15 W, PCB, 90 °C Max Temp -40 °C Min Temp

Subtotal (1 tube of 10 units)*

£414.70

(exc. VAT)

£497.64

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 +	£414.70	£41.47

*price indicative

RS Stock No.:: 135-1533
Mfr. Part No.:: THN 15-2425WIR
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Product Type	DC/DC Converter
	Output Voltage 1	24V dc
	Maximum Input Voltage	36V dc
	Minimum Input Voltage	9V
	Output Current 1	315mA
	Output Current 2	315mA
	Mount Type	PCB
	Output Voltage 2	-24V dc
	Input Ratio	4:1
	Number of Outputs	2
	MTBF	1600000h
	Output Voltage Adjustment Range	±21.6 V dc, ±26.4 V dc
	Isolation Voltage	3kV dc
	Maximum Output Power	15W
	Depth	9.9mm
	Standards/Approvals	No
	Length	25.4mm
	Width	25.4mm
	Series	THN 15WIR
	Maximum Operating Temperature	90°C
	Minimum Operating Temperature	-40°C
	Efficiency	91%

	Select all
	Brand TRACOPOWER
	Product Type DC/DC Converter
	Output Voltage 1 24V dc
	Maximum Input Voltage 36V dc
	Minimum Input Voltage 9V
	Output Current 1 315mA
	Output Current 2 315mA
	Mount Type PCB
	Output Voltage 2 -24V dc
	Input Ratio 4:1
	Number of Outputs 2
	MTBF 1600000h
	Output Voltage Adjustment Range ±21.6 V dc, ±26.4 V dc
	Isolation Voltage 3kV dc
	Maximum Output Power 15W
	Depth 9.9mm
	Standards/Approvals No
	Length 25.4mm
	Width 25.4mm
	Series THN 15WIR
	Maximum Operating Temperature 90°C
	Minimum Operating Temperature -40°C
	Efficiency 91%

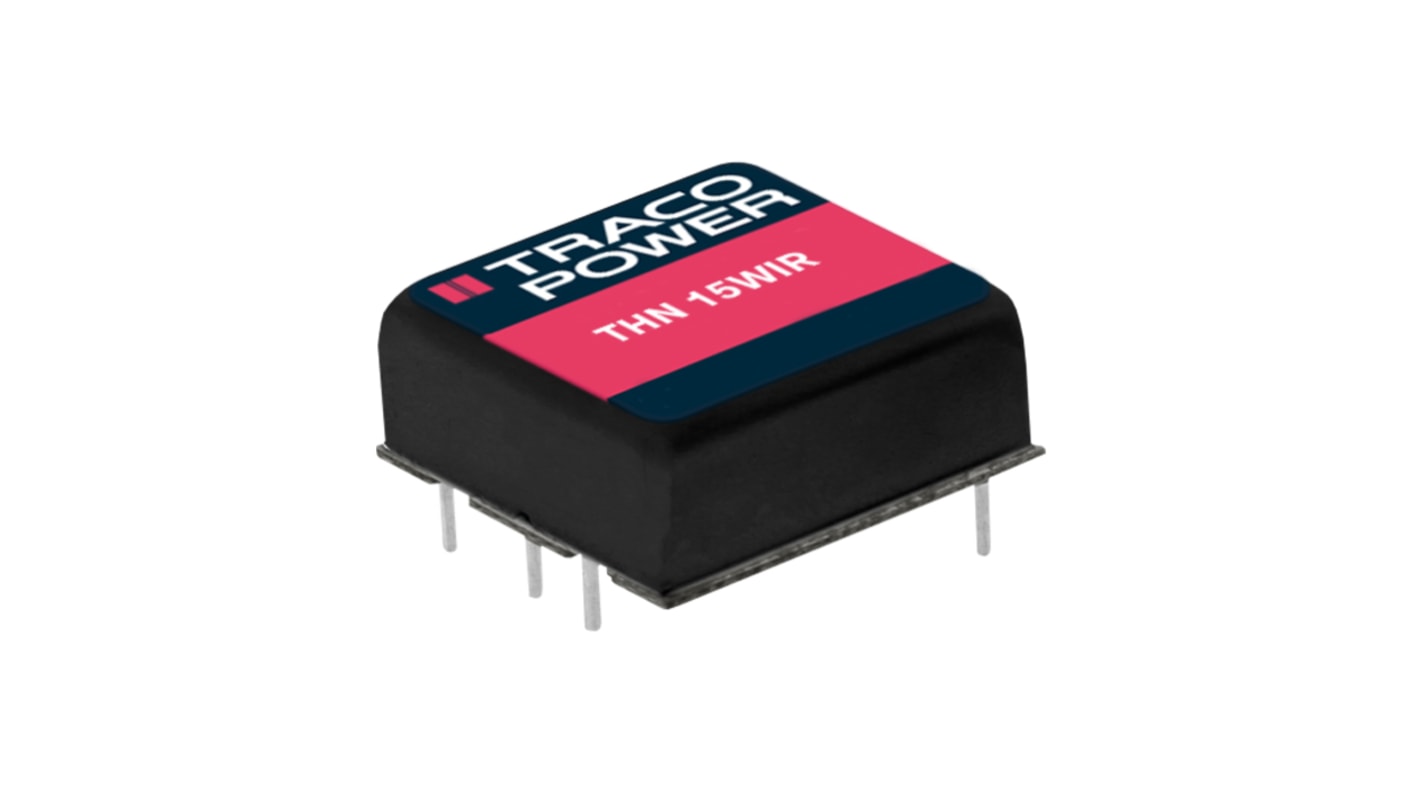

TRACPOWER THN 15WIR Series DC-DC Converter, ±24V DC Output, 15W Power Rating - THN 15-2425WIR

This DC-DC converter is designed for reliable power supply in harsh environments. It features an ultra-wide input voltage range from 9 to 36V DC and provides a consistent output of ±24V DC. With its Compact size of 25.4mm x 25.4mm x 9.9mm, it is suitable for PCB mounting, delivering high efficiency and isolation performance.

Features & Benefits

• High efficiency of 91% reduces heat loss and energy costs

• Isolated design ensures safe voltage separation for sensitive components

• Adjustable output voltage enhances flexibility in power delivery

• Approved for railway use, making it suitable for transportation systems

• Robust thermal performance withstands extreme temperature fluctuations

Applications

• Used in railway and transportation electronic systems

• Ideal for automation and control

• Suitable for medical equipment requiring reliable power

• Often employed in industrial machinery for stable operations

How does the high efficiency of this power converter benefit performance?

The high efficiency of up to 91% minimises energy wastage, leading to less heat generation and prolonged device longevity. This is particularly beneficial in demanding applications where thermal management is critical.

What are the safety features integrated into this power converter?

It includes built-in short circuit protection and under-voltage lockout, ensuring safe operation and reliability even under adverse conditions, making it suitable for critical systems.

How does the adjustable output voltage function enhance usability?

The output voltage can be adjusted from ±21.6V DC to ±26.4V DC using an external trim resistor, allowing for tailored power levels to meet specific application requirements, thus improving adaptability in diverse settings.
