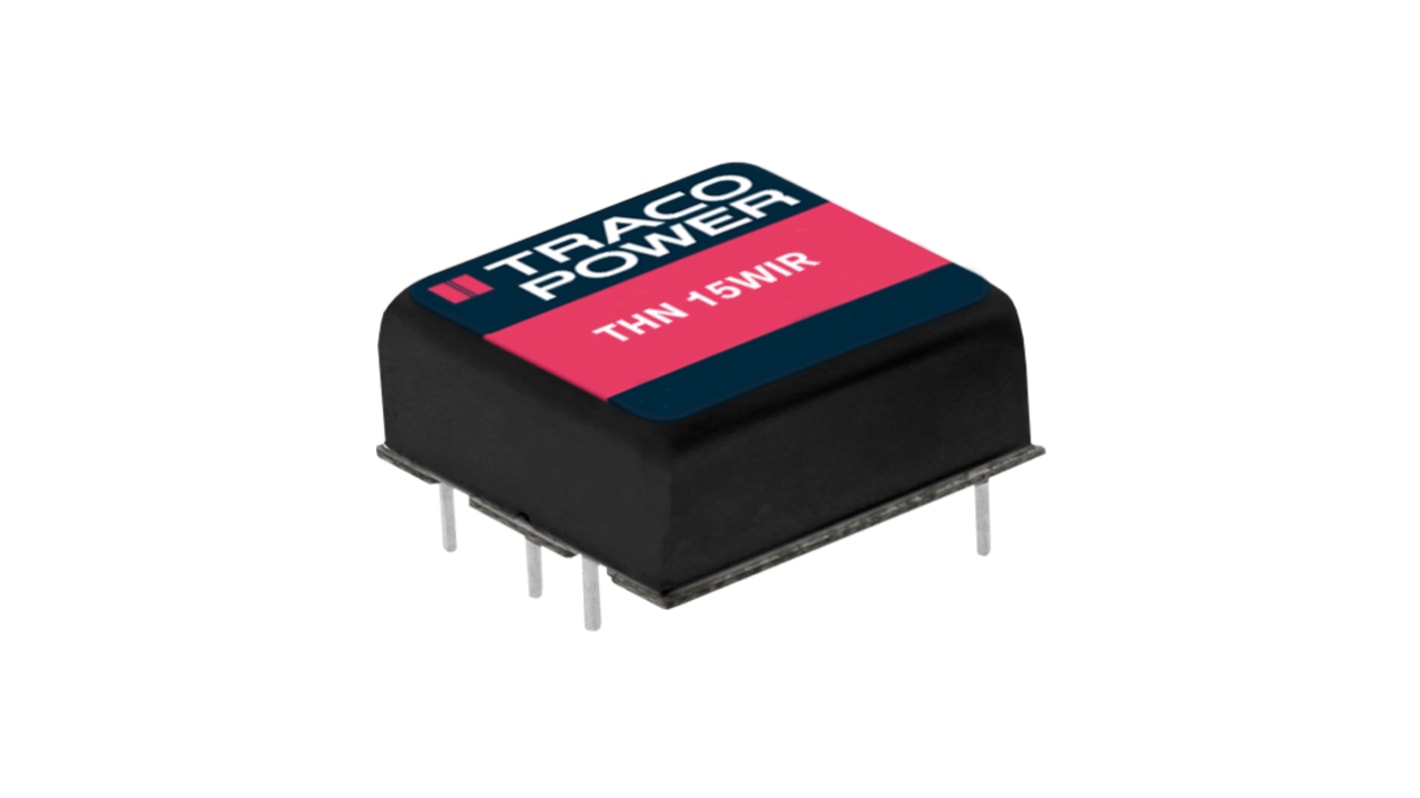

TRACOPOWER THN 15WIR DC-DC Converter, ±24V dc/ ±315mA Output, 36 → 110 V dc Input, 15W, PCB Mount, +85°C Max

View this category
Bulk discount available

Subtotal (1 tube of 10 units)*

£523.71

(exc. VAT)

£628.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£523.71£52.371
5 - 9£508.01£50.801
10 - 24£492.29£49.229
25 - 49£471.35£47.135
50 +£450.40£45.04

*price indicative

RS Stock No.:
135-1551
Mfr. Part No.:
THN 15-7225WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

±24V dc

Input Voltage Range

36 → 110 V dc

Power Rating

15W

Input Voltage Nominal

72 V dc

Output Current

±315mA

Mounting Type

PCB Mount

Isolated

Yes

Number of Outputs

2

Output Voltage Adjustment Range

±21.6 V dc, ±26.4V dc

Package

DIP-6

Isolation Voltage

3kV dc

Length

25.4mm

Width

25.4mm

Depth

9.9mm

Railway Approved

Yes

Series

THN 15WIR

Load Regulation

0.01

Minimum Temperature

-40°C

Maximum Temperature

+85°C

Standards Met

CB Scheme, CE Certified, cULus Recognised, EMI 55022 Class A, EN 45545-2, IEC/EN 60950-1, UL 60950-1

Efficiency

90%
